• Model NO.：M1 plus
• Type：High-speed Chip Mounter
• Part No.：M1 Plus
• Lead Time：1-2 Weeks After Payment
• Shipping Ways：DHL, FedEx, TNT, UPS, EMS, by Sea, by Air
• Transport Package：Normal Packing
• Trademark：I-PUSE
• Origin：USA
• Production Capacity：50 PCS , Year

Basic Info.

Model NO. M1 plus Type High-speed Chip Mounter Part No. M1 Plus Lead Time 1-2 Weeks After Payment Shipping Ways DHL, FedEx, TNT, UPS, EMS, by Sea, by Air Transport Package Normal Packing Trademark I-PUSE Origin USA Production Capacity 50 PCS / Year

Product Description

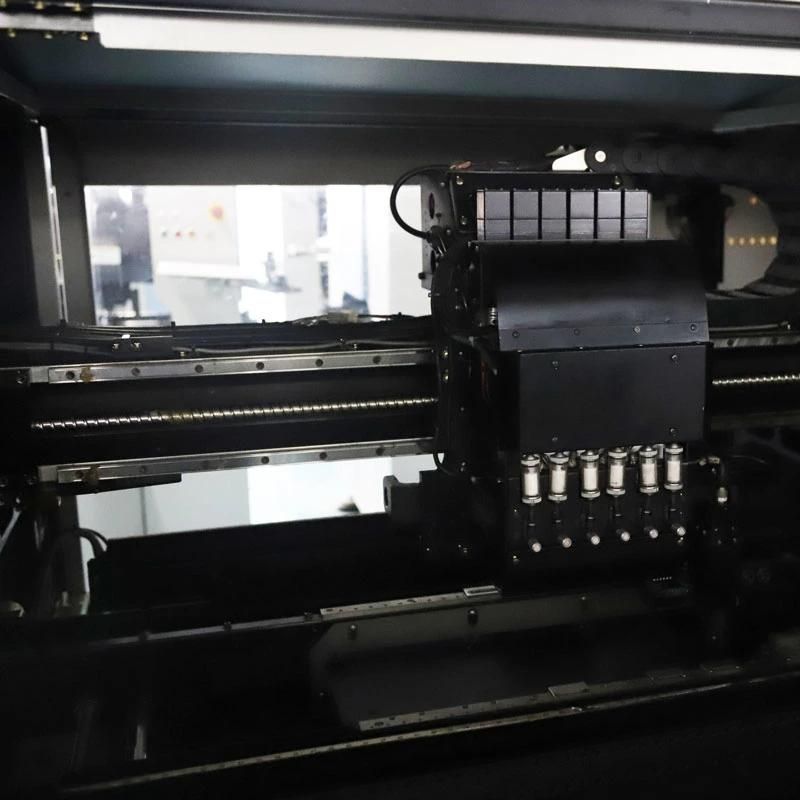

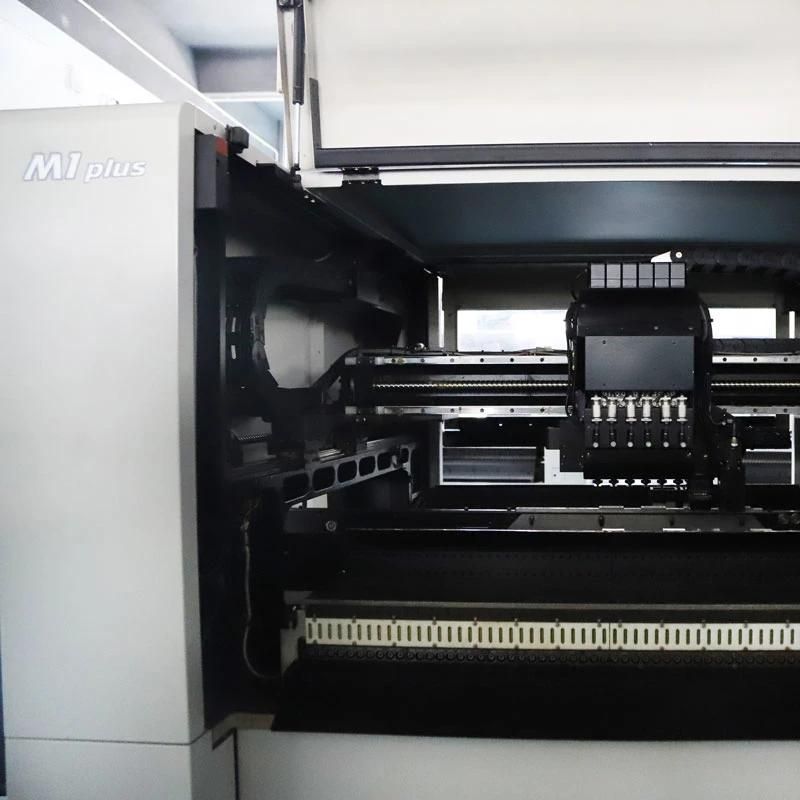

SMT pick and place machine I-Pluse M1 plus







Sector	Specification(M1+)
Board Size(LxWxT)mm	Max.460 x 410 x 2.0MM,Min.50 x 50 x 0.5MM
Conveyor flow/speed	→   420MM/sec(with soft-stop)
Tact Time	0.16sec/chip,0.38sec/TSOP(32pin) Up ward Vision :0.75sec/QFP(100pin)
Repeat ability	±0.06MM(chip),±0.035MM(IC)
Mounting angle	±180°,  0.02°increment
Max.component height	15mm
Components applicable	0603 ~  SOP,PLCC,QFP,BGA and CSP,connector
Component packaging	8 ~  56MM  tape,stick,bulk and tray
No.of component types	120 type (8MM  tape)
Board transfer height	900±20MM
Dimensions(LxWxH)mm	1750 x 1500 x 1846
W eight	1,800KG
Power supply	200V±10%  3Phase AC50/60Hz,4.0kVA
Air supply	0.5MPa,69Nℓ/min
Maker	I-Pulse



• Professional rail design, smooth and smooth transmission.
• Adopt imported Panasonic PLC control system.
• Special lifting mechanism, meet PCB boards of different sizes,
• Using stepping motor and TBI screw lifting.
• Sensors using Japanese OMRON brand, stable performance.
• Can store 5 pieces of NG board.
• Parallel bars with parallel sliding.
• With sound and light alarm function, the alarm upper limit can be changed.
• Standard SMEMA
