Nide Medium-Sized Transformer Stator Coil Winding Machine for Grinder Motor

Ningbo Nide Mechanical Equipment Co., Ltd.
  • Voltage：380V
  • Stator Od：50~150mm
  • Stack Length：10~70mm
  • Speed：0-450rpm Adjustable
  • Pole：2poles
  • Motor Power：4.5kw

Base Info

  • Model NO.：ND-S2PA-1
  • Weight：About 1200kg
  • Name：2 Poles Stator Winding Machine
  • Automatic：Automatic
  • Certification：CE
  • Transport Package：Suiitable for Sea Transprotation
  • Specification：middle
  • Trademark：NIDE
  • Origin：China
  • HS Code：8479811000
  • Production Capacity：100 Sets,Year

Description

Prouduction nametransformer stator coil winding machineWire diameter:0.15-1.3mmStator O.D range:50-150mm(Can Be Customized)Stack length:10-70mm(Can Be Customized)Spindle speed:0-450 rpmPole no.:2 polesTurn number:0-9999Air supply pressure:5-7 Kg/cm2Motor power:4.5KWVoltage:Three phase AC380V50/60HzDimension:1050(length)X2300(width)X1750(height)mmWeight:1200Kg


(3) Applications:

This type of stator winding machine is suitable for two-poles stator winding, such as mixer motor, grinder motor,vacuum cleaner motor etc.

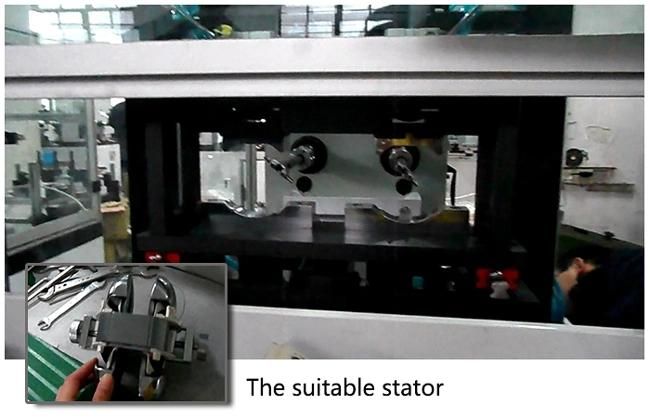

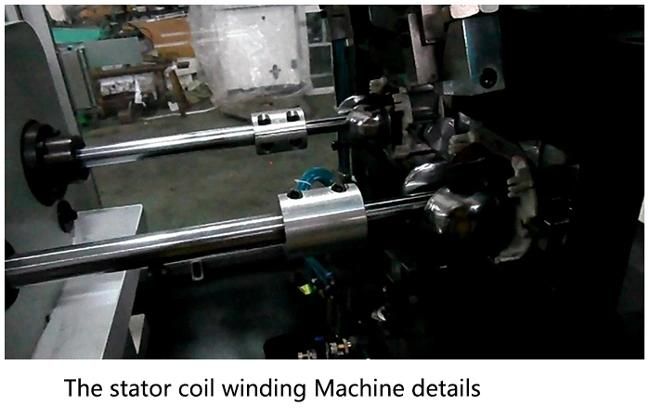

(4)The stator coil winding machine picture display
Nide Medium-Sized Transformer Stator Coil Winding Machine for Grinder Motor
Nide Medium-Sized Transformer Stator Coil Winding Machine for Grinder Motor

Nide Medium-Sized Transformer Stator Coil Winding Machine for Grinder Motor
Nide Medium-Sized Transformer Stator Coil Winding Machine for Grinder MotorNide Medium-Sized Transformer Stator Coil Winding Machine for Grinder MotorNide Medium-Sized Transformer Stator Coil Winding Machine for Grinder Motor
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .

Customerized service1. Customized product design and manufacturing2. Customized tranning3.Technical suggestionsAfter-sales service1. Warranty Period: 12 month usually2. Overseas service center available

3. Engineers available to service overseas

Nide Medium-Sized Transformer Stator Coil Winding Machine for Grinder Motor
Nide Medium-Sized Transformer Stator Coil Winding Machine for Grinder Motor
Established in 2007, NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.

NIDE has three main business divisions.
The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
