Yh-Bw07 Automatic Corrguated Pipe Cutting Machine Peak and Bottom Fixed Positon Cut

Kunshan Yuanhan Electronic Equipment Co., Ltd.
  • After-sales Service：24th
  • Driven Type：Electric
  • Condition：New
  • Certification：RoHS, ISO, CE
  • Warranty：24 Months
  • Automatic Grade：Automatic

Base Info

  • Model NO.：YH-BW07
  • Model：Yh-Bw07
  • Cutting Length：10-9999mm
  • Cutting Tolerance：0.02mm
  • Cutting Diameter：4-30mm
  • Power：1500W
  • Speed：100~3000PCS,H
  • Voltage：220,110(V)
  • Gross Weight：70kg
  • Dimension：700*580*450mm
  • Display：7′′ Real Color Touch Screen
  • Drive：16 Wheels Drive
  • Transport Package：Double-Layer Export Carton
  • Specification：390*350*255mm
  • Origin：China
  • HS Code：8479819000

Description

Basic Info.

Model NO. YH-BW07 Model Yh-Bw07 Cutting Length 10-9999mm Cutting Tolerance 0.02mm Cutting Diameter 4-30mm Power 1500W Speed 100~3000PCS/H Voltage 220/110(V) Gross Weight 70kg Dimension 700*580*450mm Display 7′′ Real Color Touch Screen Drive 16 Wheels Drive Transport Package Double-Layer Export Carton Specification 390*350*255mm Origin China HS Code 8479819000

Product Description

 YH-BW07 Automatic corrguated pipe cutting machine peak and bottom fixed positon cut

This all-in-one corrugated tube cutting machine is suitable for cutting long length corrugated pipes with high cutting precision peak cutting. The machine adopts belt traction and displacement sensor, pre-releases and actively delivers pipes to achieve high speed and high precision. It meets customers' needs for wire harness processing in industries such as automotive, new energy, aerospace, motorcycle, urban rail transit, high voltage cabinets and more.

  • Touch screen, PLC control, digital operation

  • Pre-release, pre-delivery, efficient and accurate pipe cutting

  • Integrated circuit, stable control and simple maintenance

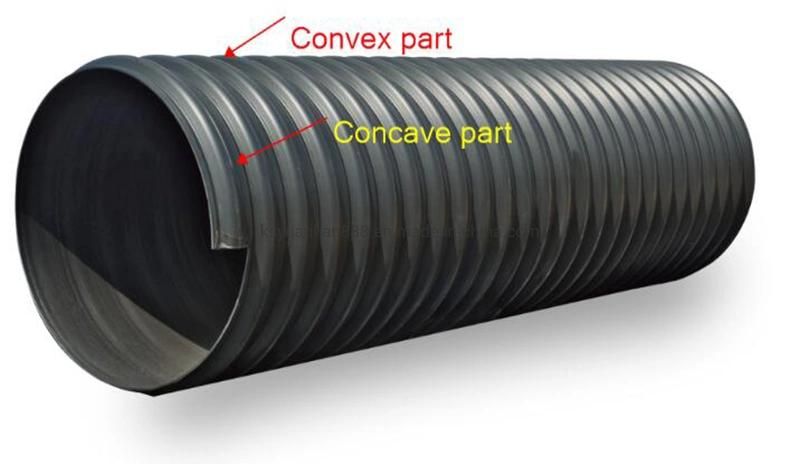

  • Precise cutting of peaks and troughs

  • Features splitting function

Specifications:
ModelCutting lengthCutting widthPowerVoltage/ FrequencyWeightPackage size
YH-BW0610-9999mm4.5-32mm1.50KW220/110(V) 50/60Hz100kg1450*700*1500mm
YH-BW0710-9999mm4.5-25mm1.50KW220/110(V) 50/60Hz100kg1450*700*1500mm
Yh-Bw07 Automatic Corrguated Pipe Cutting Machine Peak and Bottom Fixed Positon CutYh-Bw07 Automatic Corrguated Pipe Cutting Machine Peak and Bottom Fixed Positon Cut



Other Model

If you are not so sure of if it's ok, please contact us, we will recommend the correct model to you! Tested video of your sample is no problem too.



Packing & Shipping:

For small and light products packed by cartons,for large and heavy products packed by wooden
