• Model NO.：XJ- 8T(4+4)
• Type：Double Stranding Machine
• Voltage：220-660V or Other Voltage
• Wire Specification：AWG40-AWG22
• Transport Package：Standard Shipping Packing
• Trademark：NEWTOPP
• Origin：China
• Production Capacity：500sets,Year

Basic Info.

Model NO. XJ- 8T(4+4) Type Double Stranding Machine Voltage 220-660V or Other Voltage Wire Specification AWG40-AWG22 Transport Package Standard Shipping Packing Trademark NEWTOPP Origin China Production Capacity 500sets/Year

Product Description

Application field:


Used for parallel wires and high frequency signal transmission cable twisting and pair twisting,wrapping once finished.



Products feature:


The machine is used to parallel wires and high signal transmission cable twisting and pair twisting,wrapping once finished.Pay-off bobbins placed by cross type,the linear speed of difference of pay-off bobbin with drawing wheels forming the pitch,suit to high requirement standard telecommunication cables production.Full-intelligent control using whole set of servo control,touch screen directly setting the pitch,speed is steady.The quality is improved obviously.

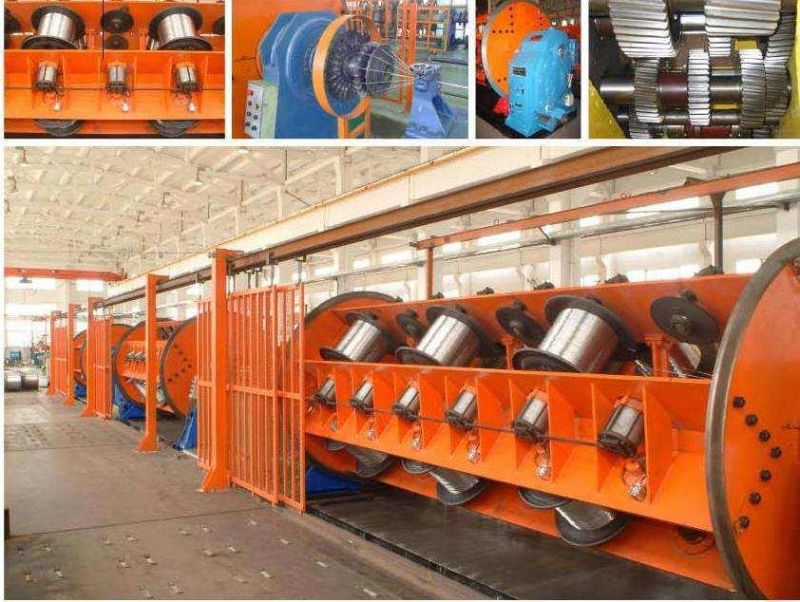

Machine parts:


1.No axis pay-off rack
2.Bobbin twisting cage
3.Single row parallel die frame
4.Wrapping device
5.Meter counter
6.Single active dual capstan
7.Axis-row type take-up
8.Safety cover and foot screw
9.Full set of electrical control system,touch screen,PLC,transducer

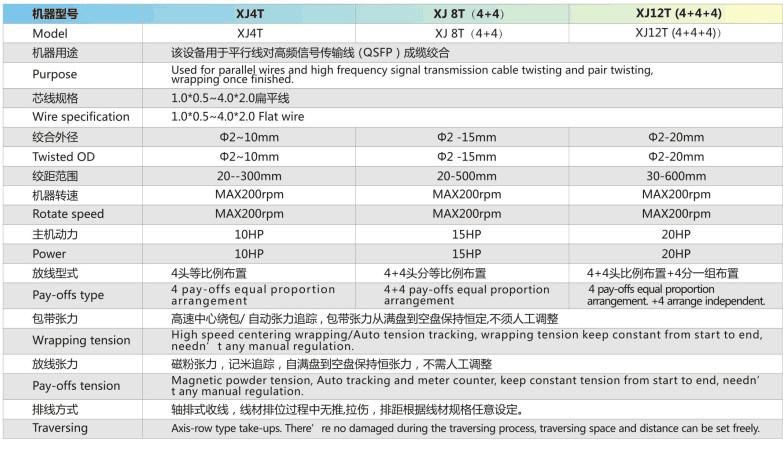

Technical parameters





Our Service

Pre-Sales Service                                      After-Sales Service

* Inquiry and consulting support.              * Training how to install the machine,  and how to use the machine.
* Customized design support.                   * Engineers available to service machinery overseas.
* View our Factory.


About us



Newtopp electrical machinery Co., Ltd. is anational high&new technology enterprise. It located in Humen Town, Dongguan city, and through ISO9001 quality certification and IS014001 environmental management system certification.
Our company is professional in design and manufacture high-end wire and cable equipment, mainly products included: the copper bunching machine, teflon extrusion machine, insulation extrusion machine, chemical foaming extrusion machine, physical foaming extrusion machine, jacket sheath extrusion machine, planetary type cage twisting/stranding machine, Numerical control type double layers / multi layer taping machine, Cantilever type single twisting/stranding machine, lan cable back-twist pair twisting/stranding machine etc.
