• Model NO.：T200N+
• Transmit Belt Width：300mm
• Temperature Control Segment：8 PCS
• Warm-up Time：25min
• Temperature Range：Room-Temperature -360 Degree
• Max PCB Size：270*230mm
• Conveyor Speed：0-1600mm,Min Adjustable
• Normal Working Power：4kw
• Dimension(L× W× H )(mm)：820*460 * 310mm
• Temperature Control System：PC Control System, SSR Non-Contact Output
• Transport Package：Wooden Case or Package as Your Request
• Specification：CE ISO
• Trademark：Torch
• Origin：Beijing
• HS Code：8514109000
• Production Capacity：10 PCS ,Month

Basic Info.

Model NO. T200N+ Transmit Belt Width 300mm Temperature Control Segment 8 PCS Warm-up Time 25min Temperature Range Room-Temperature -360 Degree Max PCB Size 270*230mm Conveyor Speed 0-1600mm/Min Adjustable Normal Working Power 4kw Dimension(L× W× H )(mm) 820*460 * 310mm Temperature Control System PC Control System, SSR Non-Contact Output Transport Package Wooden Case or Package as Your Request Specification CE ISO Trademark Torch Origin Beijing HS Code 8514109000 Production Capacity 10 PCS /Month

Product Description

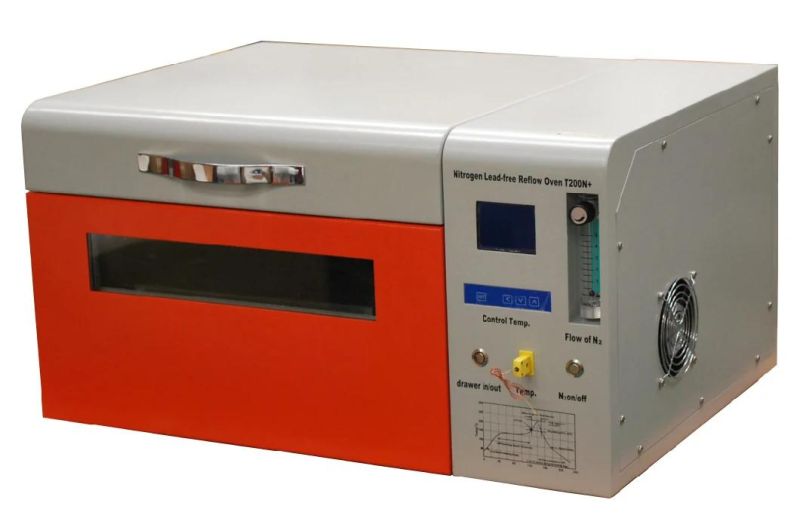

                                                                        Torch Full Hot air Lead Free Reflow Oven T200N+ with Temp test
                                                                      Model:T200N+

Type	T200N/T200N+
Max PCB size	270*230mm
Heating supply	Infrared ray + Hot air convection
Temperature range	Room-temperature -360 ºC
Welding time	3min ± 1min
Warm-up time	3min
Temperature accuracy	± 2 ºC
Temperature control system	PC control system, SSR non-contact output
Temperature control segment	40 segments, The segment can be set in computer according to the actual requirement.
Temperature-zone numbers	Single-zone and multi-segment
Temperature curve	It can be set, adjusted and tested according to the actual requirement.
Cooling system	Transverse flow equal cooling
Power supply	220V,50Hz,Rated power : 4.0KW Mean power: 1.8kw
Weight	45 kg
Dimension	820′ 460 ′ 310mm
