• Model NO.：XJ25+20---- XJ50-35
• Specification：XJ30-70
• Trademark：NEWTOPP
• Origin：China
• Production Capacity：200sets,Year

Basic Info.

Model NO. XJ25+20---- XJ50-35 Specification XJ30-70 Trademark NEWTOPP Origin China Production Capacity 200sets/Year

Product Description

Application field:

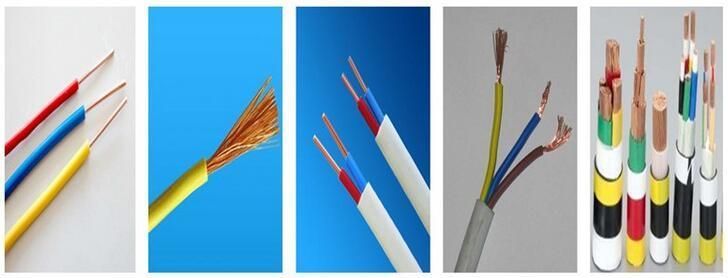

Used for CAT5E, CAT6, IEEE1394, DVI, HDMI, etc. core wire dual layer co-extrusion chemical foaming or solid core wire extrusion.




Products feature:
1. High quality:The finished cable products up to international or national standards.Widely application FM-PE, PE, PP, PVC, SR-PVC material.Machine running speed: foaming core (Max)400m/min, solid core (Max)600m/min.
2. Strict QC:Equipped with outer diameter and capacitance detection device, which process control the product's outer diameter, foaming degree and other technological parameters.
3. Host machine:Choose the import cross-head device from Europe or the domestic high-quality double-layer cross-head device, realize the inner and outer layer of precision.
4. Electrical controller: Imported frequency converter +PLC touch screen control.

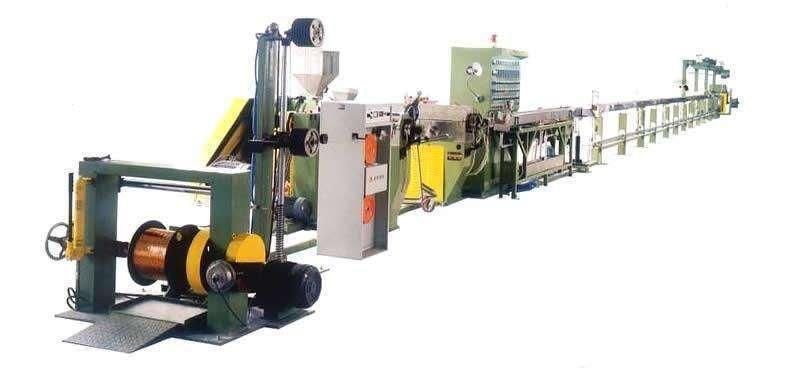

Machine parts:
Consist of active pay-offs stand,copper conductor pre-heater, straightening machine, host machine&auxiliary machine of the extrusion line,automatic suction&drying machine,electric main control cabinet,moveable constant temperature water tank,in water static capacity tester,outer diameter measuring caliper, fixed cistern,dual wheel capstan, horizontal line storage rack, high frequency spark machine, dual-axis take-up stand etc.

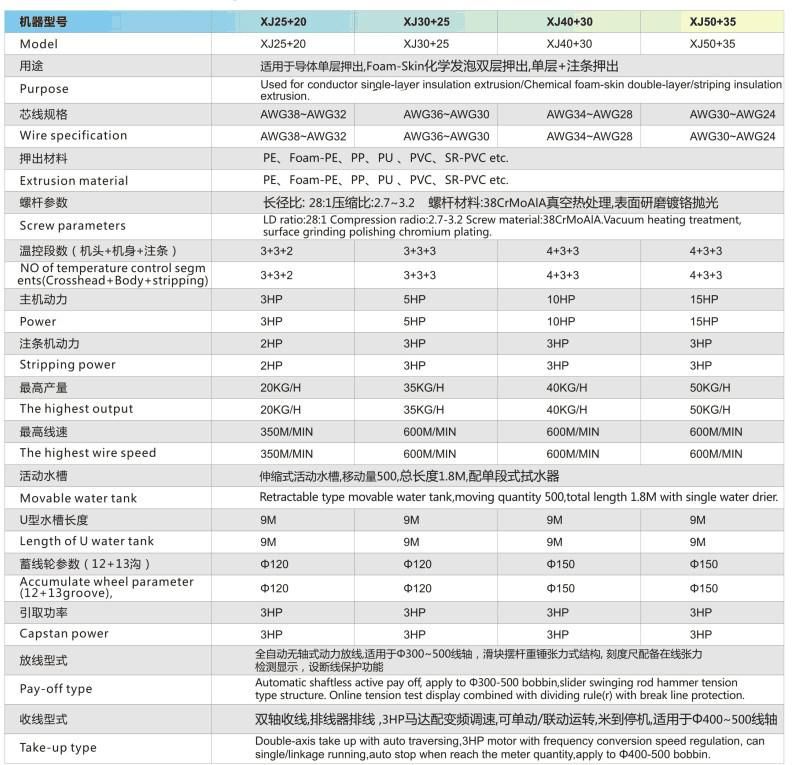

Technical parameters




Our Service

Pre-Sales Service                                      After-Sales Service

* Inquiry and consulting support.              * Training how to install the machine,  and how to use the machine.
* Customized design support.                   * Engineers available to service machinery overseas.
* View our Factory.

About us


Newtopp electrical machinery Co., Ltd. is anational high&new technology enterprise. It located in Humen Town, Dongguan city, and through ISO9001 quality certification and IS014001 environmental management system certification.
Our company is professional in design and manufacture high-end wire and cable equipment, mainly products included: the copper bunching machine, teflon extrusion machine, insulation extrusion machine, chemical foaming extrusion machine, physical foaming extrusion machine, jacket sheath extrusion machine, planetary type cage twisting/stranding machine, Numerical control type double layers / multi layer taping machine, Cantilever type single twisting/stranding machine, lan cable back-twist pair twisting/stranding machine etc.
