• Model NO.：XJ30
• Specification：XJ30
• Trademark：NEWTOPP
• Origin：China
• Production Capacity：200sets,Year

Basic Info.

Model NO. XJ30 Specification XJ30 Trademark NEWTOPP Origin China Production Capacity 200sets/Year

Product Description

Application field:

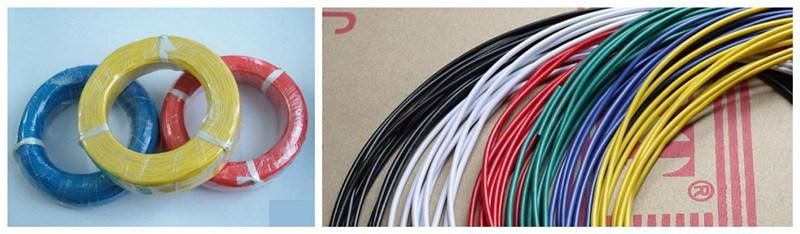

Suitable for PVC, PP, PE and other plastic high-speed extrusion, mainly for the production of UL electronic lines, computer lines conductor, the power cord conductor, car line, BV, BVV building line, power cord, computer wire, insulated wire sheath extrusion, the power cord, power cable, extruding production.




Products feature:
1.Used widely:Used for conductor single layer/single layer+striping insulation extrusion.
2.High output:Optimizing screw design,Screw durable,non cohesive gel, non take off a chrome, color change quickly,high wire speed,high output.
3.High quality:Extrusion concentricity:over93%,OD tolerance:+/-0.005mm.
4. Temperature control precise: Adopted SCR power control machine with imported high quality temperature control table,the machine temperature controlled within +/-1 degree C.
5. Easy control: Intelligent control,wire diameter auto-feedback and adjustment,hommization machine design combined with NEWTOPP specialized touch screen make machine operation more easier and convenient.
6. Save place:Combined traditional accumulate,capstan,take-up and meter counter and so on auxiliary device into integration structure.Layout is compact.The overall length will reduce over 5M.

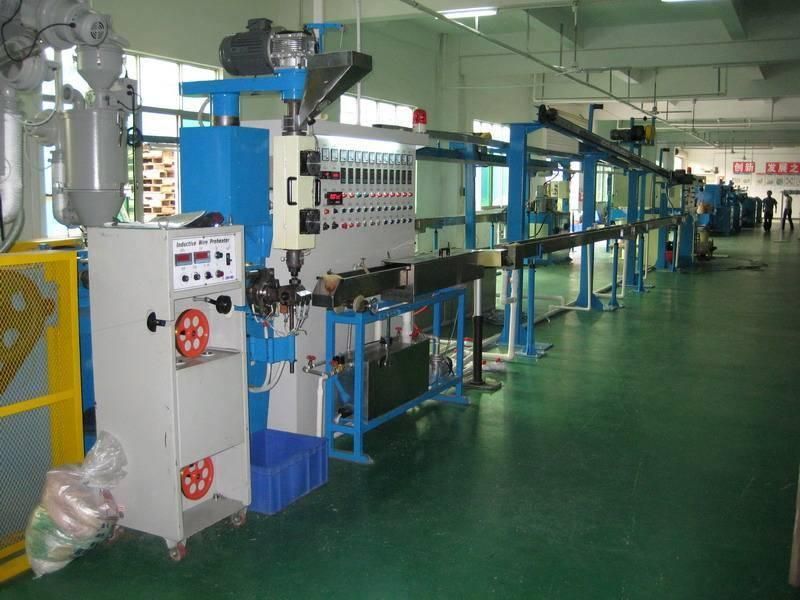

Machine parts:
Pay-off stand, straightening machine, the host machine, main control cabinet, printer, sink, wheeled capstan, Accumulate stand, sparks machine, dual-axis or without shaft of take-up device and other accessories. Optional active pay-off, powder machine, without shaft alignment, copper wire, pre-heater, high frequency spark machine, etc.

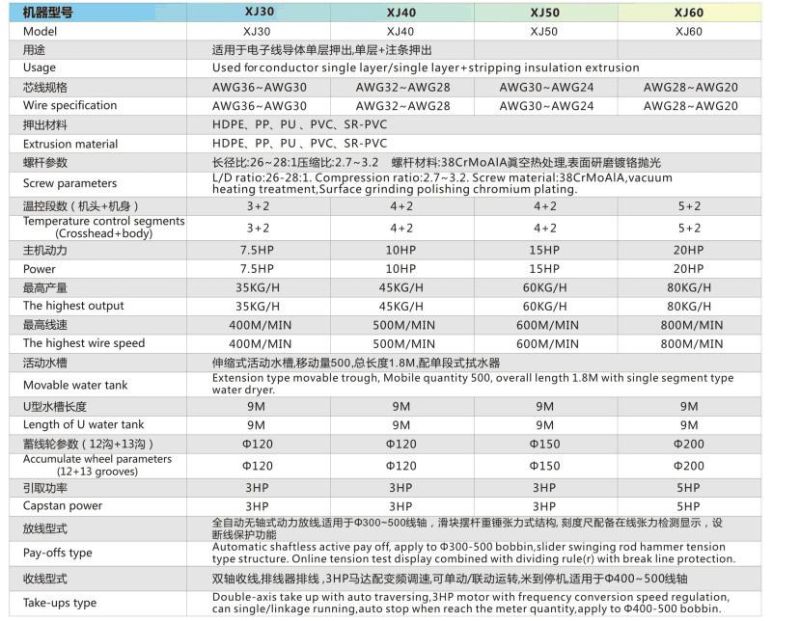

Technical parameters



Our Service

Pre-Sales Service                                      After-Sales Service

* Inquiry and consulting support.              * Training how to install the machine,  and how to use the machine.
* Customized design support.                   * Engineers available to service machinery overseas.
* View our Factory.
