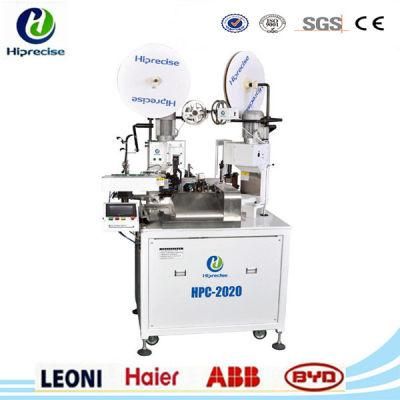

Automatic Punching Machine, Wire Stripping and Crimping Machine (HPC-2020)
Xiamen Hiprecise Technology Co., Ltd.- Certification：CE, ISO
- Warranty：12 Months
- Automatic Grade：Automatic
- Usage：Cutting, Stripping, Crimping
- Stripping Length：Front End: 1.0mm-10.0mm; Rear End: 1.0mm-17.0mm
- Wire Range：AWG28-AWG14
Base Info
- Model NO.：HPC-2020
- Crimping Force：2 Ton
- Precision：High Precision
- Demoulding：Automatic
- Heating System：Electric
- Function：Abrasion Resistance
- Mould Life：>1,000,000 shots
- Condition：New
- Customized：Customized
- Transport Package：Wooden Case: 1600mm( L ) *1400mm W ) *1900mm(H)
- Specification：SGS, ISO
- Trademark：Hiprecise
- Origin：Xiamen, China
- HS Code：8537101990
- Production Capacity：30 Sets , Month
Description
Basic Info.
Model NO. HPC-2020 Crimping Force 2 Ton Precision High Precision Demoulding Automatic Heating System Electric Function Abrasion Resistance Mould Life >1,000,000 shots Condition New Customized Customized Transport Package Wooden Case: 1600mm( L ) *1400mm W ) *1900mm(H) Specification SGS, ISO Trademark Hiprecise Origin Xiamen, China HS Code 8537101990 Production Capacity 30 Sets / MonthProduct Description
Automatic cutting, stripping and crimping Machine (both ends crimping HPC-2020)1. Applicable for home appliance and automobile harness processing.
2. Applicable Wire ranges: 0.08-2.0mm² (AWG28-AWG14)
3. Productivity: MAX: 3200 PCS/H ( L< 300 mm)
4. Adopt Japan THK linear guide, Japan SUMITOMO precise servo reduction gears to ensure high accuracy and long life of the whole machine.
5. Adopt Japan SMC pneumatic elements, high reliability.
6. Touch man-machine graphics operation screen, visualized and concise.
7. Adopt Japan YOKOGAWA high-performance programmable controlling technology, Japan MITSUBISHI servo and Japan SANYO stepping controlling technology. The machine is stable, reliable and the processing accuracy is high.
8. Adopt the frequency conversion controls terminal crimping machine to accomplish power saving and low noise.
| Model | HPC-2020 |
| Cutting Length | 40mm-99999mm |
| Stripping Length | Front end :1.0mm-10.0mm; Rear end:1.0mm-17.0mm |
| Cutting Accuracy | ≤±(0.5+0.002*L) (Depending on equipment adjusting and wire materials) |
| Wire Range | 0.08-2.0mm²(AWG28-AWG14) |
| Crimping force | 2 ton |
| Power | AC220V 50Hz 10A |
| Air Source | >0.5Mpa |
| Air Consumption | 140NL/min |
| Dimensions | 870mm(W)×1300mm(L)×1450mm(H) |
| Weight | 500Kg |
