Automatic Wire Feeding Machine Cable Induction Wire Feeder Spool Cable Feeder Machine

Kunshan Yuanhan Electronic Equipment Co., Ltd.
  • After-sales Service：All Life
  • Automatic Grade：Automatic
  • Driven Type：Electric
  • Warranty：24 Months
  • Model：Yh-830
  • Voltage：220V

Base Info

  • Model NO.：YH-830
  • Main Body Material：High Quality National Standard Rectangular Tube
  • Take off Power：0.55kw
  • Cable Lift：Manual Handling of The Reel
  • Coil Size：600mm
  • Coil Clamping：Adaptive Drive Wheel with a Maximum Width of 680mm

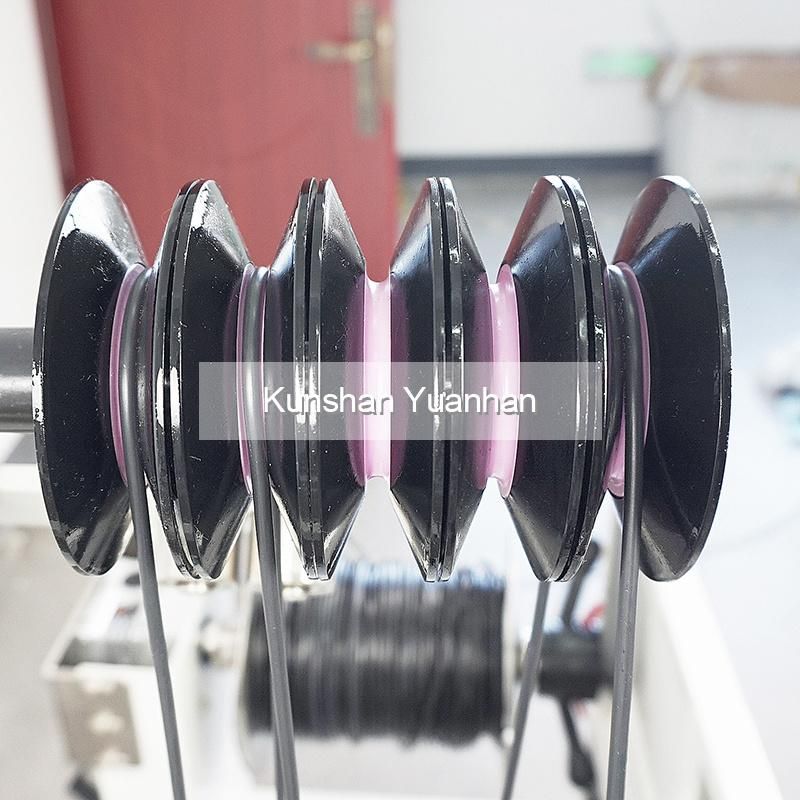

  • Tension Wheel：Wheel Set (3 PCS)
  • Speed：Depends on The Wire Stripping Machine
  • Tension Adjustment：Adjust The Tension of The Cable
  • Dimensions：1,260*1,110*750mm (L*W*H)
  • Weight：180kg
  • Cable Max Diameter：18

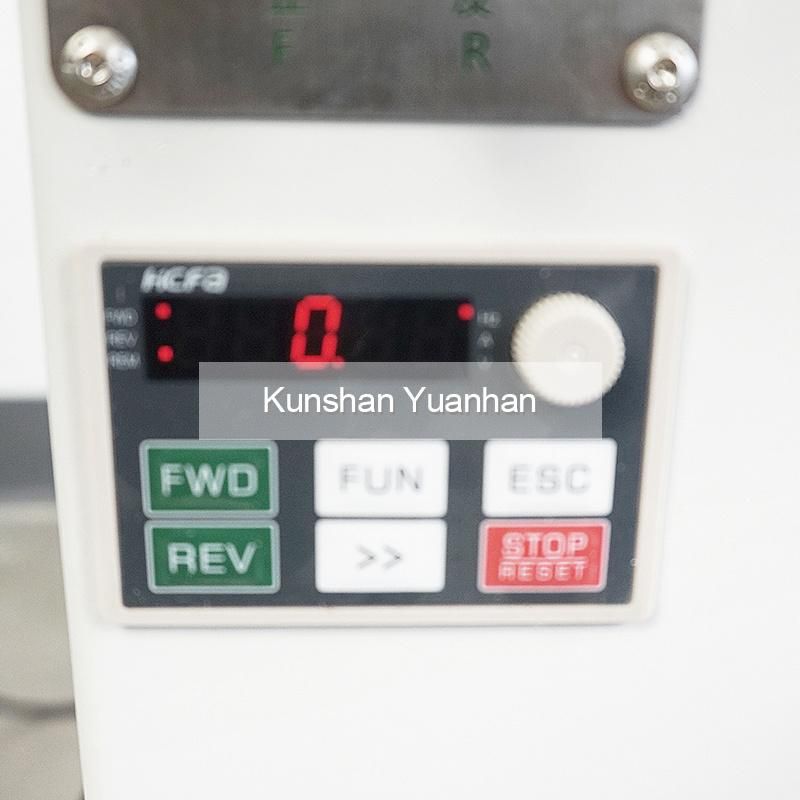

  • Drive Type：Inverter + Motor + Reducer
  • Remarks：The Machine Can Be Customized
  • Transport Package：Double-Layer Export Carton
  • Specification：1, 260*1, 110*750mm (L*W*H)
  • Trademark：yuanhan
  • Origin：China
  • Production Capacity：L=100mm, 3000-7000PCS,H

Description

High-speed feeding and rewinding cable and wireFeeding cable typeWire, cable, PVC cable, etc.Cable range0.5-10mm2Speed0-4M/sCable max diameterΦ18Cable spool max diameter600mmMax load weight60kgInduction typeproximity switch, multi-speedDrive typeInverter + motor + reducerRemarks

The machine can be customized for processing special cables,

and the sample cable should be sent to us for test.

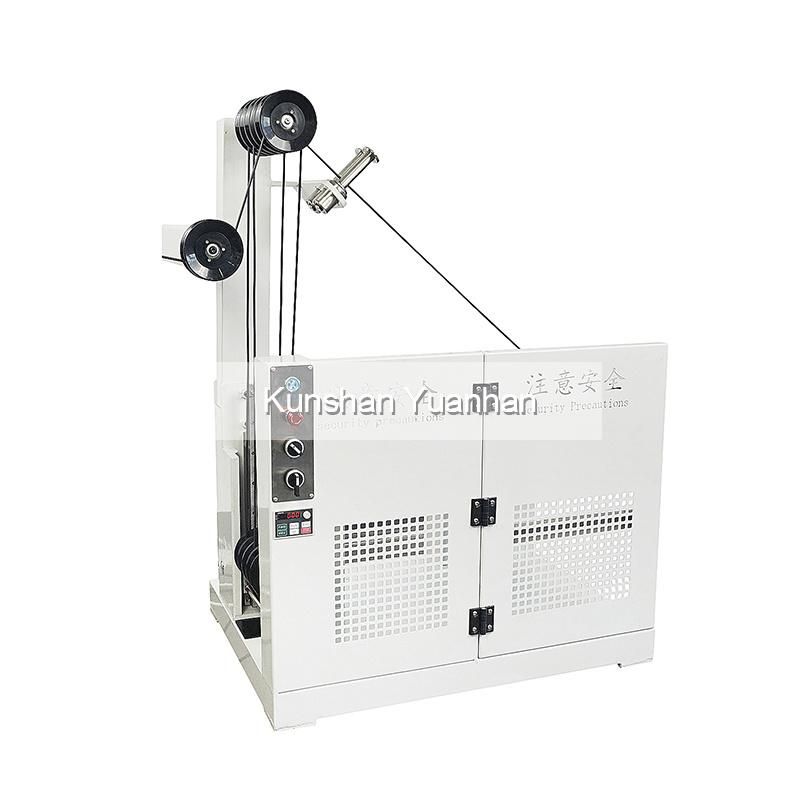

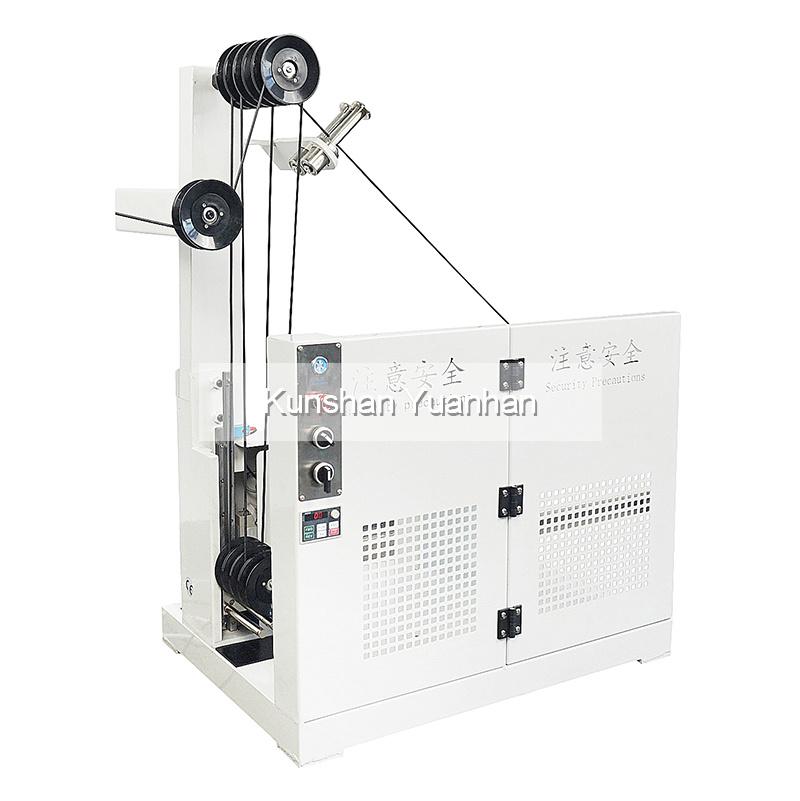

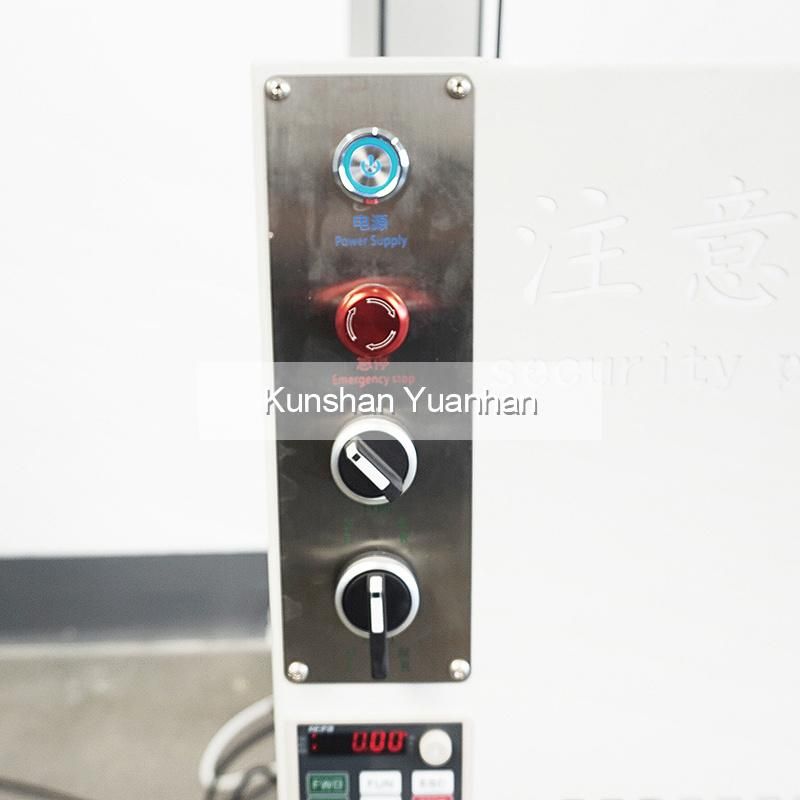

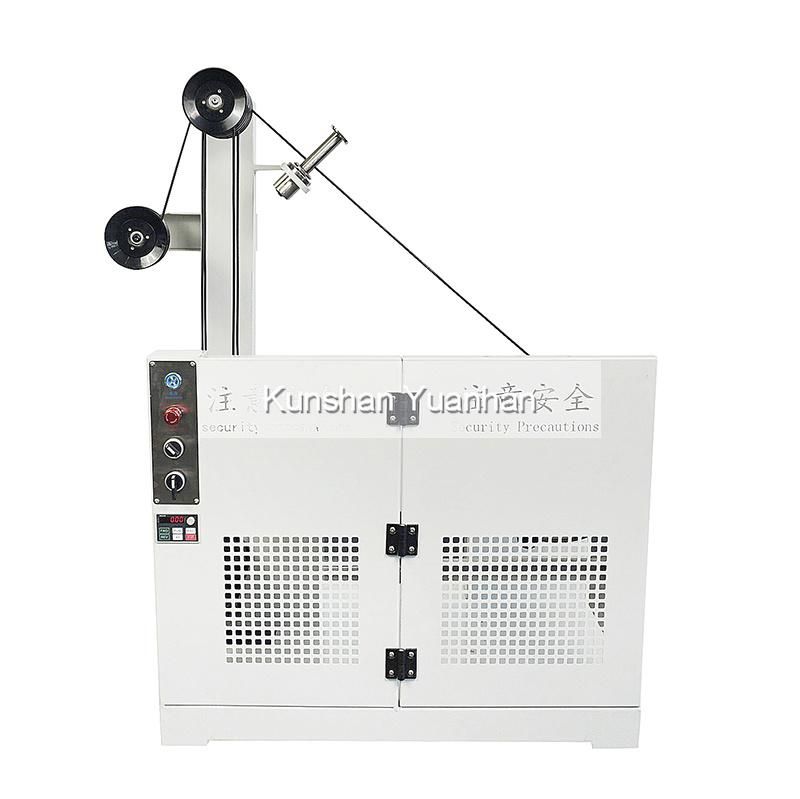

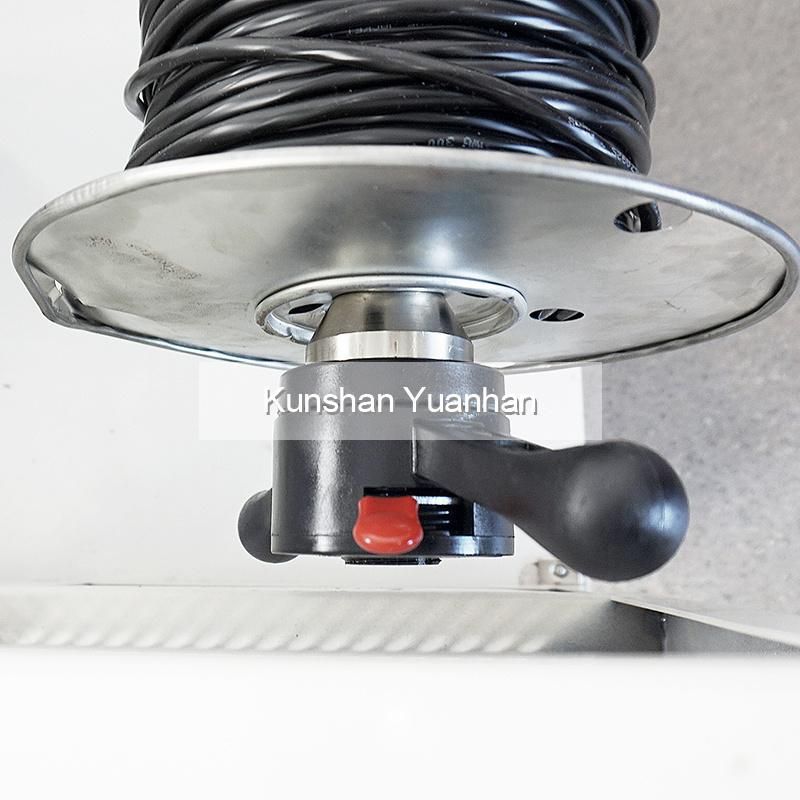

MACHINE PHOTOS
Automatic Wire Feeding Machine Cable Induction Wire Feeder Spool Cable Feeder MachineAutomatic Wire Feeding Machine Cable Induction Wire Feeder Spool Cable Feeder MachineAutomatic Wire Feeding Machine Cable Induction Wire Feeder Spool Cable Feeder MachineAutomatic Wire Feeding Machine Cable Induction Wire Feeder Spool Cable Feeder MachineAutomatic Wire Feeding Machine Cable Induction Wire Feeder Spool Cable Feeder MachineAutomatic Wire Feeding Machine Cable Induction Wire Feeder Spool Cable Feeder MachineAutomatic Wire Feeding Machine Cable Induction Wire Feeder Spool Cable Feeder Machine

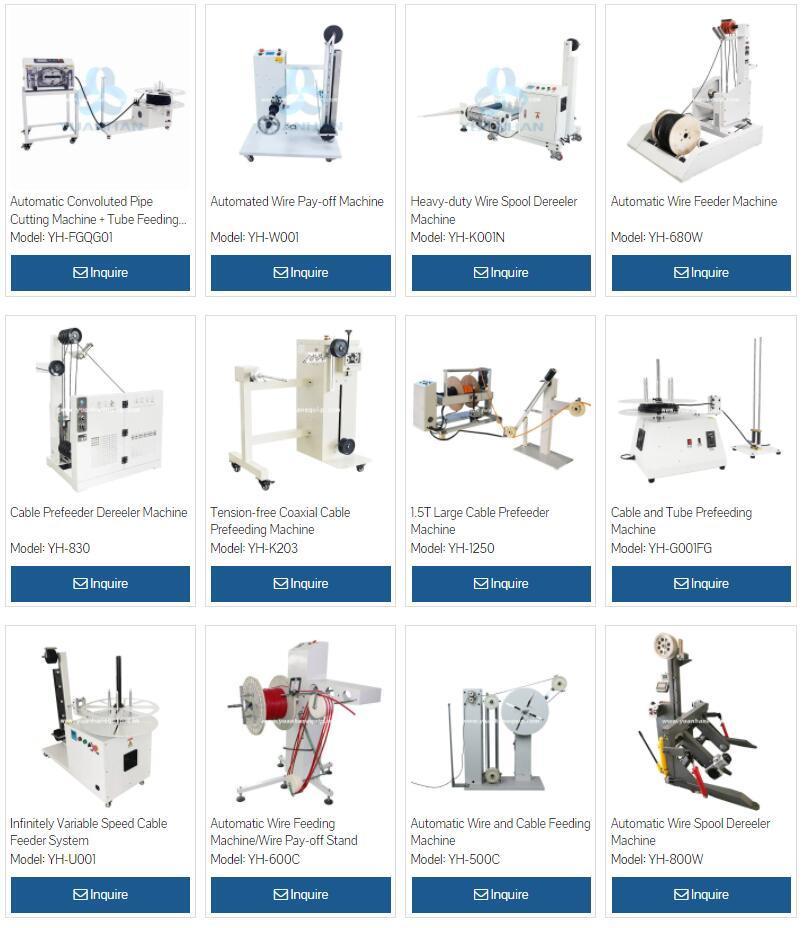

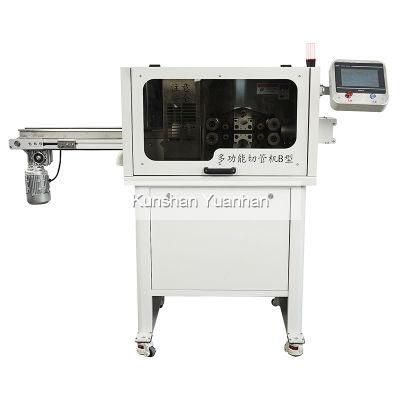

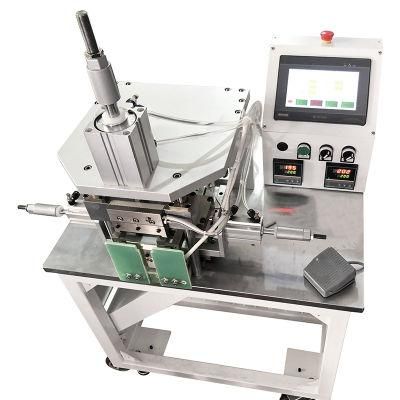

Other Model

If you are not so sure of if it's ok, please contact us, we will recommend the correct model to you! Tested video of your sample is no problem too.
Automatic Wire Feeding Machine Cable Induction Wire Feeder Spool Cable Feeder Machine


Packing & Shipping:

For small and light products packed by cartons,for large and heavy products packed by wooden

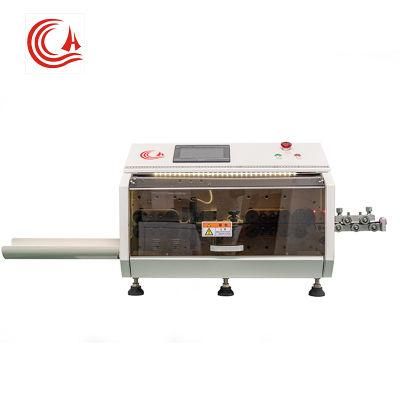

for Sale Small Size Automatic Computer Electrical Electric Cable Stripper Machine Wire Cutting Stripping Machine
