• Driven Type：Electric
• Mixing Method：Dynamic or Static
• Tank：10L, 25L, 40L Optional
• Cleaning Function：Yes
• Vacuum Function：Yes
• Heating Glue：Yes
• Pump：Gear, Screw, Dh Pump
• PLC：Panosinic
• Accuracy：1%
• Ab Ratio：1:1-10:1 Adjustable
• Gluing out Speed：5-66g,5s
• Transport Package：Wooden Packing
• Trademark：D&H
• Origin：China
• HS Code：8424899990
• Production Capacity：50PCS Per Month

Basic Info.

Driven Type Electric Mixing Method Dynamic or Static Tank 10L, 25L, 40L Optional Cleaning Function Yes Vacuum Function Yes Heating Glue Yes Pump Gear, Screw, Dh Pump PLC Panosinic Accuracy 1% Ab Ratio 1:1-10:1 Adjustable Gluing out Speed 5-66g/5s Transport Package Wooden Packing Trademark D&H Origin China HS Code 8424899990 Production Capacity 50PCS Per Month

Product Description

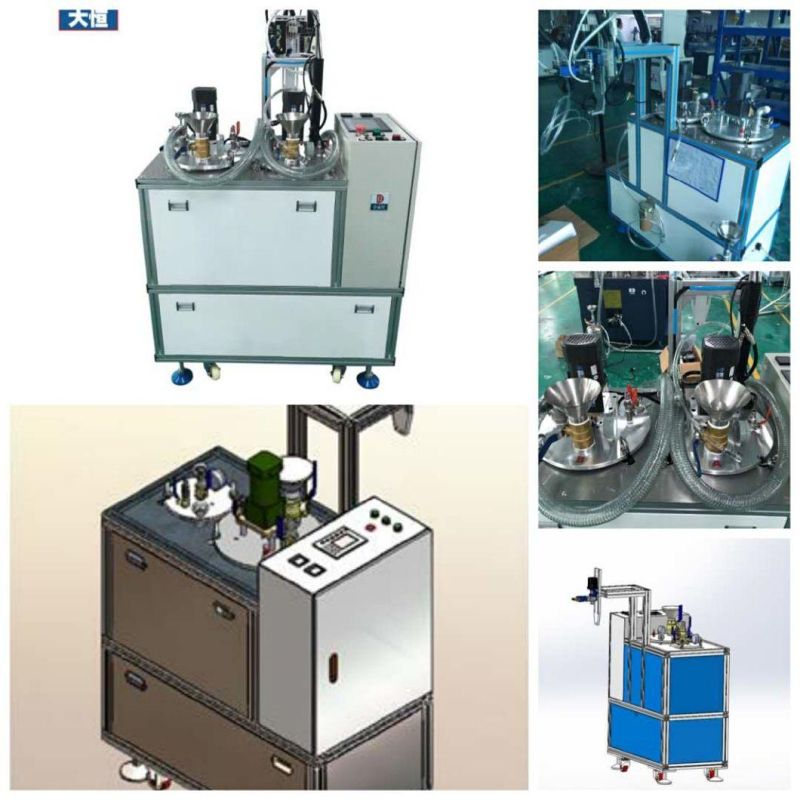

Glue Dispensing Machine for two component glue


Solution: YJPJ-1000 Semi Automatic Gluing Machine

Introduction :
1. Working Area: controlled by manual
2.Application products: Multi-purpose, such as led wall washer,Power supply, LED driver, Capacitor; transformer, sensor etc.
3.High precision valve: high speed, glue off clean, no glue drawing, no dropping.
4. Cyliner pump: No glue backflow, high speed, glue continuously, long life time.
5. Mix glue A & B more evenly; no more or no less for agent B.




Tech Data:
1.Gluing Speed: 0.2-12g/S or 20-30g/S
2.Repeatability: +/-1%
3. Glue Ratio: 1:1 to 10:1 adjustable
4. Tank Capacity: 10L, 25L, 40L available
5. Size:  L1500xW1050xH1700mm
6. Weight: 280kg
7. Power: 1.5-3kw, Voltage: 220V & 380V optional
8. Air Pressure: 0.5-0.65MPa ( 5-6.5kgf/ cm2 )

Our Advantages
1. Our patent  & Core Technology ensure the quality stability, long life span of the machine.
2. Our strong R&D team: 7 people, average age over 35 years
3. Complete sales service and support: warranty 12 months; send engineers; videos, drawings, files, etc…

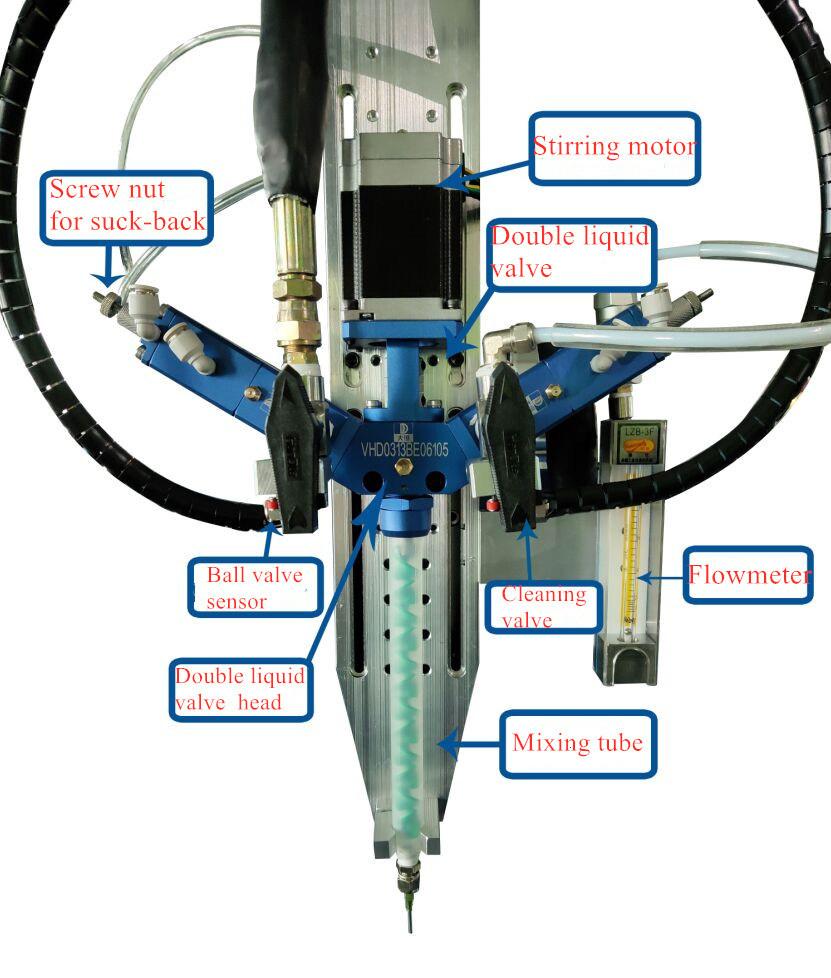

4. Configuration of the machine:        Vacuum: remove the air bubble;        Dynamic Mixing;        Stirring Motor on the tank:  prevent sediment
5. high profession and rich industry experience: 8 years

Appilication




Function	Introduction	Usage Advantages
Automatic Glue Supplying	Automatically supply the glue according to the set ratio, and send it to the mixing tank with constant speed.	Compare to the traditional manually glue preparation, saving more costs, convenient operation, keep working environment neat and clean and the ratio more accurate
Dynamic Mixing	Automatically mixing the A&B glues, high sealing ability to avoid bubbles	Timing quantitative, dynamic mixing and using, no need to do the vacuum, saving labor costs, convenient operation, improve production. Dispensing to products directly after stirring, make the most use of glue before it's solidified.
Timed Quantitative Filling	Set up and save the settings for one single product, this setting can be recalled for future usage. The glue amount, speed can be adjusted anytime.	Glue outputting more accurate, productive. The glue potted products will be more beautiful, flat and good quality.
Low Amount Alarming System	When the glue is not enough or the machine is abnormal, the machine will show the warning message.	Humanized engineering design, avoid the serious damages
Leak-proof Function	When the dispensing head needs to move accurately, and finished the potting process. The moment resorption function will start and make sure the glue won't drop off.	To avoid the glue to pollute or effect the outlook of the products.
Timing Dispensing	According to different glue features, users can set up the glue outputting speed and interval time. To avoid the glue curved in the mixing tube.	To avoid the glue curved in the mixing tube while workers short break, shift switching.
Glue Bucket Sealing	There's a professional sealing ring to make sure the glue tank in vacuum status.	To avoid the glue to be crystallization or curved.
Cleaning Function	Clean and wash the A&B rubber hose automatically.	Convenient, fast, clean. Dynamic mixing to avoid the machine was stuck by the glue.
Automatic Stiring Function	Can auto stirring the filler glue, to avoid the  sedimentation.	To avoid the the sediment of the glue to block the rubber hose, and make sure the glue ratio mixing equalization and quality. Reduce the waste, keep the working environment clean, and improve the production.
Heating Function	To heat up the glue tank.	Make sure the glue warm, movable and potting quality
