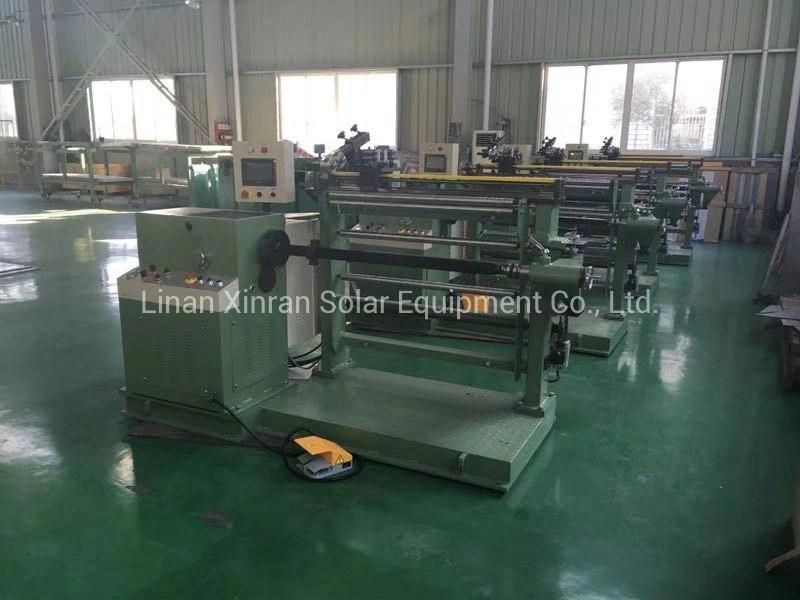

Automatic Transformer Coil Winding Machine
HANGZHOU LINAN XINRAN SOLAR EQUIPMENT CO., LTD.- Center Height：950mm
- Stepping Accuracy：0.01mm
- Winding Width (Max.)：Less Than 1000mm
- Power of Motor：5kw
- Max. Output Torque：156n.M
- Stepping Scope：0.1~5mm
Base Info
- Basic Output Shaft Speed：440 R,Min
- Wire Specifications：Max Flat Wire 3×12mm Round Wire 0.1mm~5mm
- Automatic：Automatic
- Certification：CE, ISO
- Transport Package：Wooden Package
- Specification：300-1300mm
- Trademark：EN-SOURCE
- Origin：China, Zhejiang
- HS Code：85041900
- Production Capacity：500
Description
II.Winding Machine Main Technical Parameters
| Item | Parameters |
| Center height | 950mm |
| Winding diameter (max.) | Ф600 mm |
| Winding width (max.) | ≤1000mm |
| Basic output shaft speed | 440 r/min |
| Stepping scope | 0.1~5mm |
| Stepping accuracy | 0.01mm |
| Counter maximum set number of turns | 9999.9 |
| Max. output torque | 156N.m |
| Maximum load | 500kg |
| Wire specifications | MAX Flat wire 3×12mm Round wire 0.1mm~5mm |
| Total weight | 1500kg |
| Power of motor | 5kw |
| Machine tool parts dimension (LxWxH) | 2250×1100×1630mm |

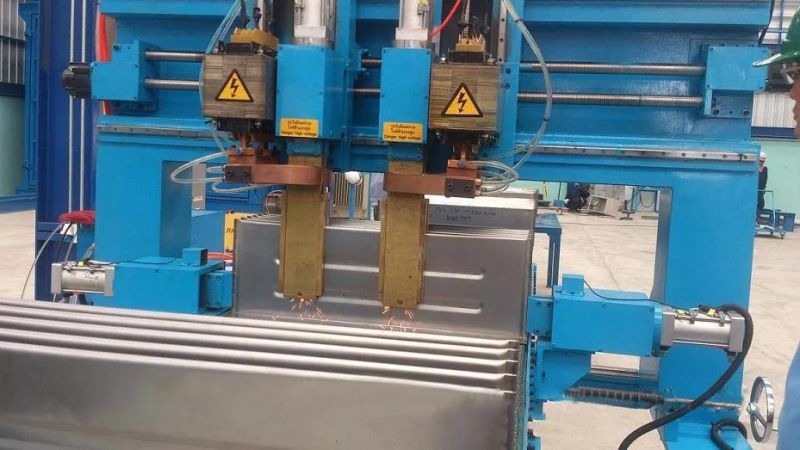

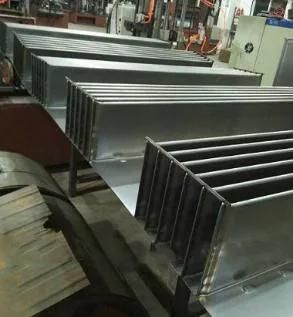

III.Equipment other photo:
