• Model NO.：HC-608E2+Z
• Power Consumption(220V)：350W
• Cutting Length：0.1mm--99999.99mm
• Stripping Length：0.1-100mm
• Number of Bending：10 Times
• Productivity(PCS/H)：400-1000PCS,H
• Air Supply：0.5-0.75MP
• Transport Package：Wooden Box
• Specification：L830*W345*H480
• Trademark：Hechang
• Origin：China
• HS Code：8479899990

Basic Info.

Model NO. HC-608E2+Z Power Consumption(220V) 350W Cutting Length 0.1mm--99999.99mm Stripping Length 0.1-100mm Number of Bending 10 Times Productivity(PCS/H) 400-1000PCS/H Air Supply 0.5-0.75MP Transport Package Wooden Box Specification L830*W345*H480 Trademark Hechang Origin China HS Code 8479899990

Product Description

Description:

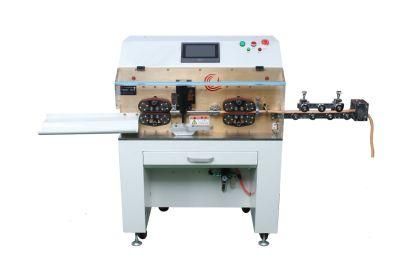

This machine mainly for the automotive industry, sensor industry, power industry, electric control cabinet, a battery box line, Military factory,Robotics,Automation, Railways, off shore, Medical, HC-608E2+Z machine can process whole electric wire according to required length,cut off and stripping head,not to hurt the tegument and conductor,high precision, thus greatly improving efficiency. You are assured maximum flexibility and even more efficient way of meeting your wire processing need.
Clockwise and counterclockwise, adjustable bending degree, 30degrees, 45 degree, 60 degrees, 90 degrees. positive and negative two bending in one line.

Feature:

Broad application range
Fully programmable
Multicore sheath cable ,electric wires ,cables cutting and stripping
Intuitive, flexible and simple User-friendly english operation ,colorful touch screen
Extremely low maintenance

Specification:


Model	HC-608E2+Z
Outer dimensions	L830mm*W480mm*H345mm
Weight	50kg
Power supply	AC175V-250≤50/60H
Power consumption(220V)	350W
Cutting length	0.1mm--99999.99mm
Cutting tolerances	±( 0.002* L : indicates a cutting length.
Stripping length	0.1-100mm
Number of bending	10 times ( more than 10 times is optional)
Bending length	Front shortest 10mm , last bend is greater than or equal to 120 mm
Bending way	Clockwise and counterclockwise, adjustable bending degree, 30 degrees, 45 degree, 60 degrees, 90 degrees. positive and negative two bending in one line
Wire range	1-16mm2 BV Hard wire  cutting stripping and bending , 0.2-25mm2 cutting and stripping
Productivity(pcs/h)	400-1000pcs/h
Drive supply	Stepping puls motor/Air cylinder ,four-wheel drive,independent drive box driver
Air supply	0.5-0.75MP
