150 Outside Sheath Extrusion Machine/ Hungary Iran Manufacturing Equipment /Cable Machine
Dongguan Newtopp Electrical Machinery Co., Ltd.- Driven Type：Electric
- Condition：New
- Certification：CCC, UL, ISO, CE
- Warranty：12 Months
- Screw：Single-Screw
- Transport Package：Standard Shipping Packing
Base Info
- Model NO.：XJ-150
- Specification：XJ50
- Trademark：Newtopp
- Origin：China
- HS Code：8477209000
- Production Capacity：150 Sets,Year
Description
Basic Info.
Model NO. XJ-150 Specification XJ50 Trademark Newtopp Origin China HS Code 8477209000 Production Capacity 150 Sets/YearProduct Description
Application field:Used for power wire,computer wire,data wire and high frequency wire outside jacket insulation extrusion.
Machine technical feature
1.Concentricity: 93-97% OD tolerance: Solid +/-0.005
2.Wire specification: Φ12mm-50mm
3.The highest output: 480KG/hr The highest wire speed: 100M/MIN
4.Body temperature will be controlled within ±1ºC
5.Extrusion material: PVC, SR-PVC, PE, PP, PU etc.
6.Screw parameters:L/D ratio:26;1,compression ratio:2.7-3.2,screw material:38CrMoAIA,vacuum heating treatment,surface grinding polishing chromium plating.
Machine parts
| No. | Parts name&Specs. | Qty |

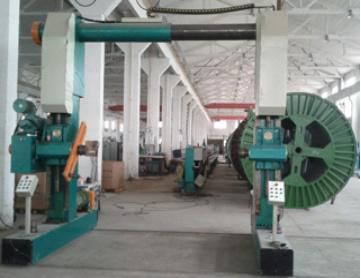

| 1 | Ø900-3000mm Gantry type pay off | 1set |
| 2 | ø150mm host extruder | 1set |
| 3 | Electrical control cabinet | 1set |
| 4 | Right-angle coating insulation crosshead | 1set |
| 5 | Hopper and dryer | 1set |
| 6 | Inkjet printer | 1set |
| 7 | 4m U type movable cooling trough | 1set |
| 8 | 36m single layer cooling trough | 1set |
| 9 | 1600kg Caterpillar hual off | 1set |
| 10 | Ø900-3000mm Gantry type take up | 1set |
| 11 | Spark tester | 1set |
Main parts brand
1.Motor: Siemens
2.Frequency converter: Yaskawa
3.Bearing: NSK (Japan brand)
4.Electrical component: Siemens or Omron
5.PLC controller: Siemens
Our Service
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install and how to use the machine
* Customized design support. * Engineers available to service machinery overseas.
* View our Factory.
About us
Company introduction
Dongguan NewTopp Electrical Machinery Co.,Ltd is a high-tech enterprise which professional in design and manufacture high-end wire and cable equipment,manily have the whole factory production line solution of Civil construction/power wire&cable,whole factory production line solution of Lan cable cat8/5E/6/6A/7,whole factory production line solution of HDMI,USB,SATA,RG59,6 etc. High frequency wire and cable,equipment include the copper bunching machine,teflon extrusion machine,insulation extrusion machine, chemical foaming extrusion machine,physical foaming extrusion machine,jacket sheath extrusion machine,planetary type cage twisting/stranding machine, numerical control type double layers/multi layers taping machine,cantilever type single twisting/stranding machine,Lan cable back-twist pair twisting/stranding machine etc. For more information please log in our official website http://dgnewtopp.en.made-in-china.com or feel free to contact us directly.

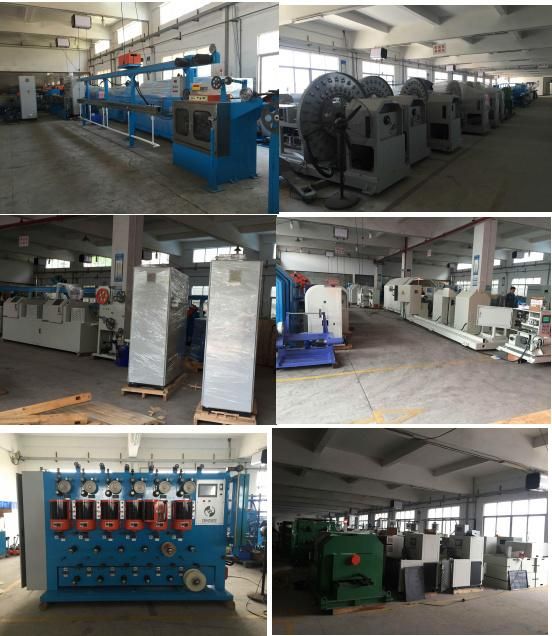

Our products

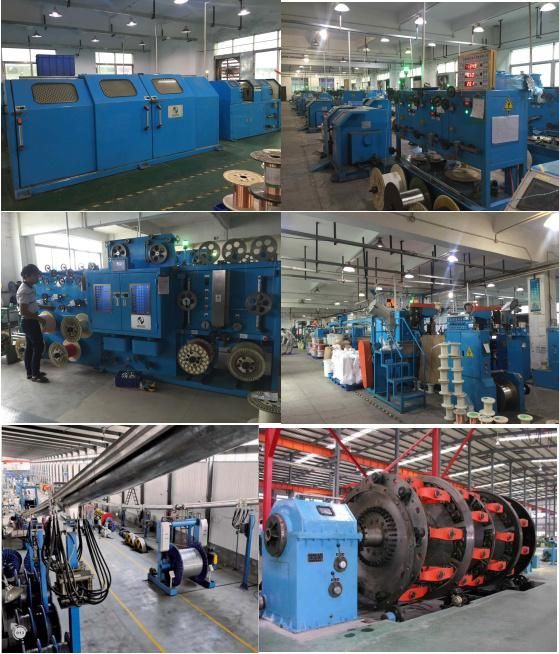

Products in client site
