• Model NO.：XJ-630
• Type：To Back Stranding Machine
• Voltage：220V-660V or Others
• Transport Package：PE Film + Wooden Frame
• Specification：XJ-630
• Trademark：Newtopp
• Origin：China
• Production Capacity：200sets,Year

Basic Info.

Model NO. XJ-630 Type To Back Stranding Machine Voltage 220V-660V or Others Transport Package PE Film + Wooden Frame Specification XJ-630 Trademark Newtopp Origin China Production Capacity 200sets/Year

Product Description

Application field:

Used for CAT-5,CAT-5E,CAT-6 and so on date cable back-twist and pair twisting.


Machine feature:

Back-twist before pair twisting and reduce the wire damage during twisting progress.Back-twist and pair twisting machine worked together.

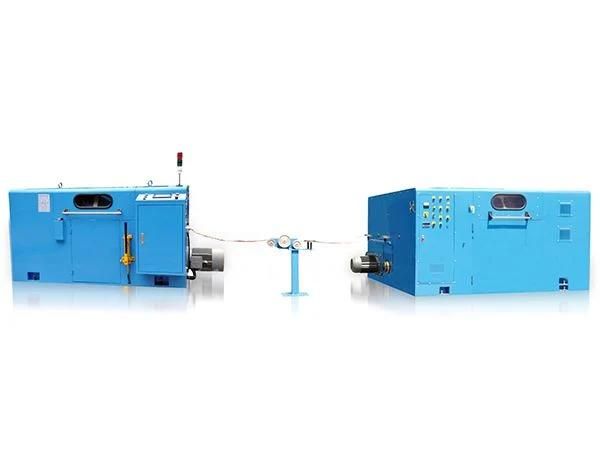

Machine parts:

No.	Parts name&Specs.	Qty
1	Ø500mm double core torsion free pair twisting machine	1set
2	Ø300mm dual wheeels capstan	1set
3	Ø630mm pair twisting machine	1 set
4	Electrical control cabinet	1set

Main parts brand

1.Motor: Siemens
2.Frequency converter: Yaskawa
3.Bearing: NSK  (Japan brand)
4.Electrical component: Siemens or Omron
5.PLC controller: Siemens
6.Touch screen: Tontek (Taiwan)

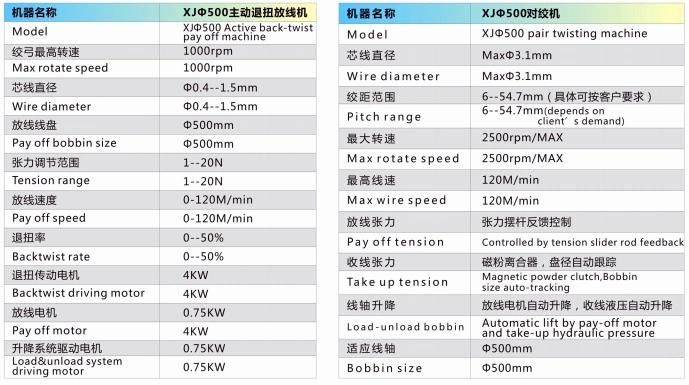

Technical parameters





Our Service

Pre-Sales Service                                      After-Sales Service

* Inquiry and consulting support.              * Training how to install the machine,  and how to use the machine.
* Customized design support.                   * Engineers available to service machinery overseas.
* View our Factory.

About us
Company introduction



Dongguan NewTopp Electrical Machinery Co.,Ltd is a high-tech enterprise which professional in design and manufacture high-end wire and cable equipment,manily have the whole factory production line solution of Civil construction/power wire&cable,whole factory production line solution of Lan cable cat8/5E/6/6A/7,whole factory production line solution of HDMI,USB,SATA,RG59,6 etc. High frequency wire and cable,equipment include the copper bunching machine,teflon extrusion machine,insulation extrusion machine, chemical foaming extrusion machine,physical foaming extrusion machine,jacket sheath extrusion machine,planetary type cage twisting/stranding machine, numerical control type double layers/multi layers taping machine,cantilever type single twisting/stranding machine,Lan cable back-twist pair twisting/stranding machine etc. For more information please log in our official website http://dgnewtopp.en.made-in-china.com or feel free to contact us directly.

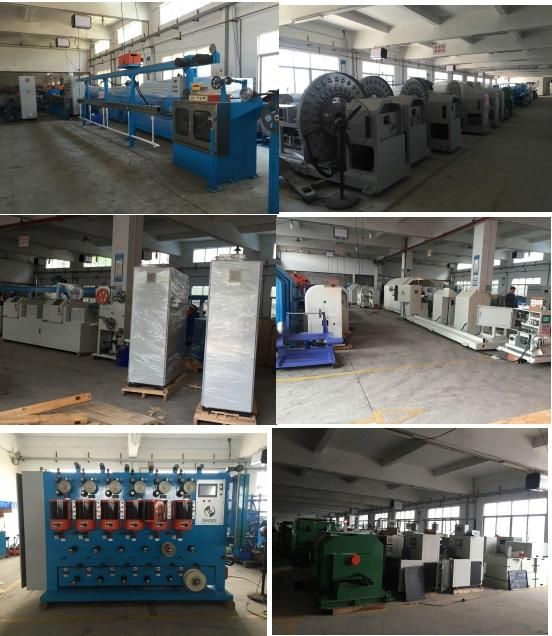

Our products

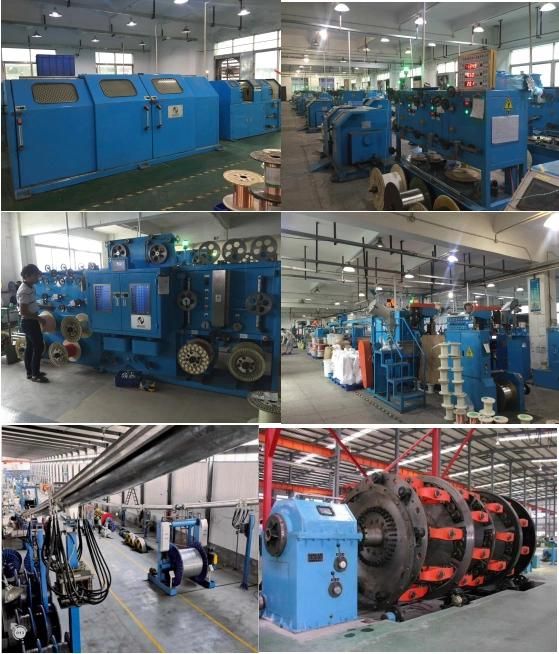

Products in clients site






Certification and Patent



 Contact us

Contact person: Owen Zeng
Mob:+86-17390410655


DongGuan Newtopp Electrical Machinery Co.,Ltd.
http://dgnewtopp.en.made-in-china.com
Tel.:+86-769-85372062   Fax:+86-769-85340833
Add.:No.286, Huaide Road, Humen Town,Dongguan City, Guangdong Province.
