• Model NO.：XJ-500
• Inverter：Japan-Yaskawa
• Range of Application：Wire and Cable
• Precision：High Precision
• Transport Package：PE Film + Wooden Box
• Specification：CE SGS
• Trademark：NEWTOPP
• Origin：Dongguan City, China
• HS Code：8479400000
• Production Capacity：8ses,Month

Basic Info.

Model NO. XJ-500 Inverter Japan-Yaskawa Range of Application Wire and Cable Precision High Precision Transport Package PE Film + Wooden Box Specification CE SGS Trademark NEWTOPP Origin Dongguan City, China HS Code 8479400000 Production Capacity 8ses/Month

Product Description

                      Numercal Horizontal Type   Double layers   Wraping Machine


1.Purpose:
  Used for twisted and parallel wire double layers/single layer continuosly centering wrapping.

2.Technical Parameters:

Model	XJ-500 Horizontal micro-fine winding and taping machine
Usage	Used in single coaxial wire and similar wire winding and taping.
Core wire arrange	AWG32 - AWG20
Taping material	Aluminum foil tape, myra tape, transparent tape, mica tape etc.
Rotate speed	Max.2500rpm/MAX20m/min
Machine power	Whole set servo motor with servo controller, taping plate is linkage with capstan motor.
Taping tension	Automatic calculation and tracking, and keep constant from start to end, no need any manual adjustment.
Heating device	Auto-flexible type, OMRON temperature control, temperature controlled within ±1°C
Take-up tension	Take-up tension keep constant from start to end, no need any manual adjustment.
Take-up type	Axis-row type take-up, no damage during the traversing process, traversing pitch and width can be adjusted.

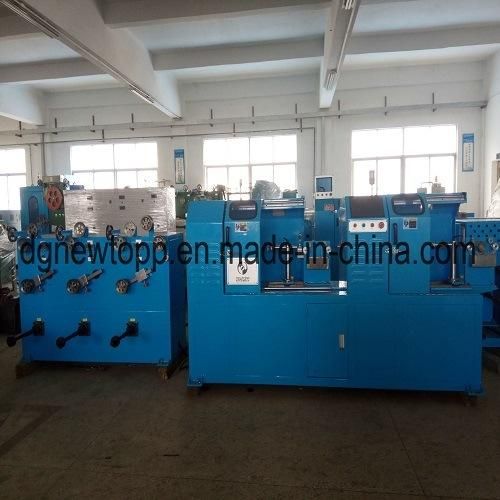

4.Product picture



4. Brand of main parts:
     Motor:Siemens
     Bearing:Japan
     Driven belt:Germany.
5.FAQ
Q:Are you a manufacturer or trading company?
 A:We are a manufacturer with more than 10 years manufacturing exprience in cable machinery, and we have 7000 spuare meters production workshop and office space.
