• Model NO.：PGB-700
• Driven Type：Electric
• Transport Package：Polywood Case
• Specification：700x700x80mm
• Trademark：Daheng , OEM
• Origin：Guangzhou China
• HS Code：842489990

Model PGB-700Dimension1500*1100*1600mmXYZ working area700*700*100mmAB ratio100:100-100:10 adjustableMovement TrackDot/Line/Arc/CircleSpeed500mm/s (Movement speed) 1-12g/s (gluing out speed)Accuracy±0.03mm (Repeatability) ±2% (potting) ±2% (mixing)Program99pcs/moreInput pressure0.5MPa-0.7MPaViscosity50cps-30000cps (Glue can be heated to decrease viscosityOperation MethodAutomaticMeter PumpGear pump/Screw pump/Double cylinder plunger pumpFlow ControlDigital InputProgramming methodTeaching programmingAutomated control syste PLC / touch screen (programming, modification, storage, etc.)Glue control systemAB glue suction valve to achieve independent operation of AB glueMixed modeDynamic and static optional, instant mixing, easy to cleanTankStainless steel(40L),(25L),(10L)optionalPower supply220V/50Hz/1200W ( The power consumption without heater)
4. Features

1, Glue controlling system of metering, mixing and potting.
2, Accurate metering and even mixing helps to avoid the waste of glue.
3, Dispensing size and positioning keep machine work consistent and fast.
4, Good universality makes PGB-700 machine suitable for applications of LED, electric and others glue potting needed products.
5, Easy to program and operate.
6, Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing back-flow device and other functional device.

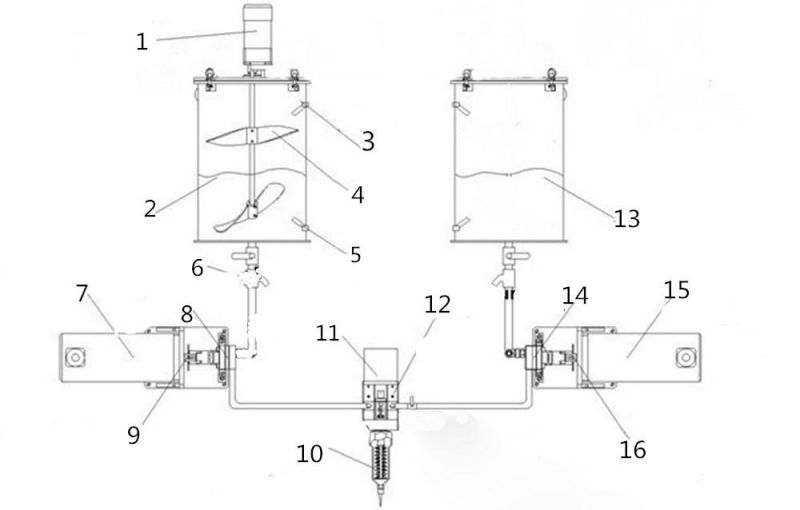

5. Working principle

Liquid A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine, draining out liquids individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.
