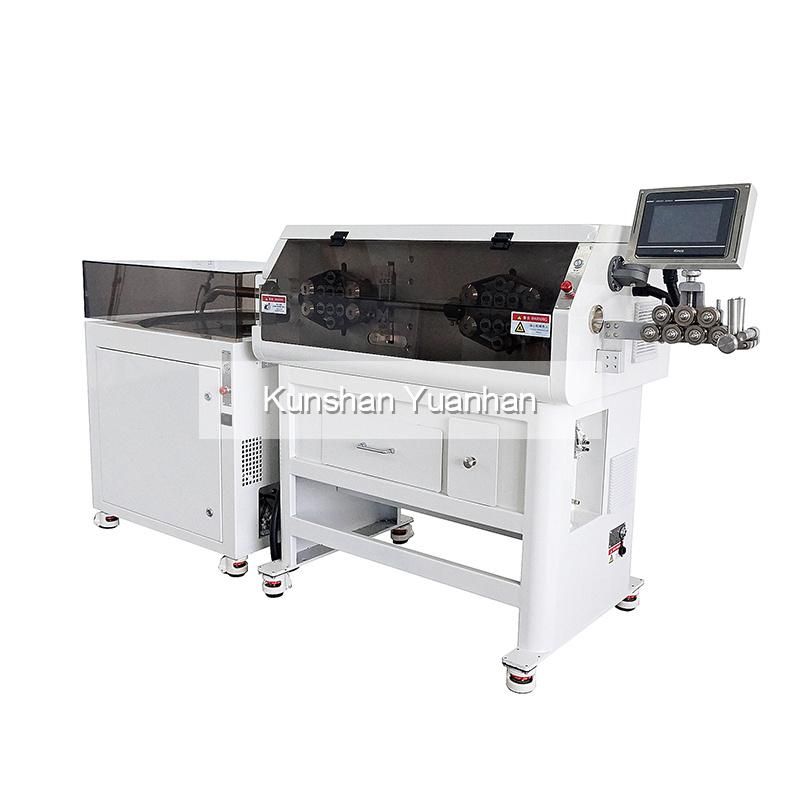

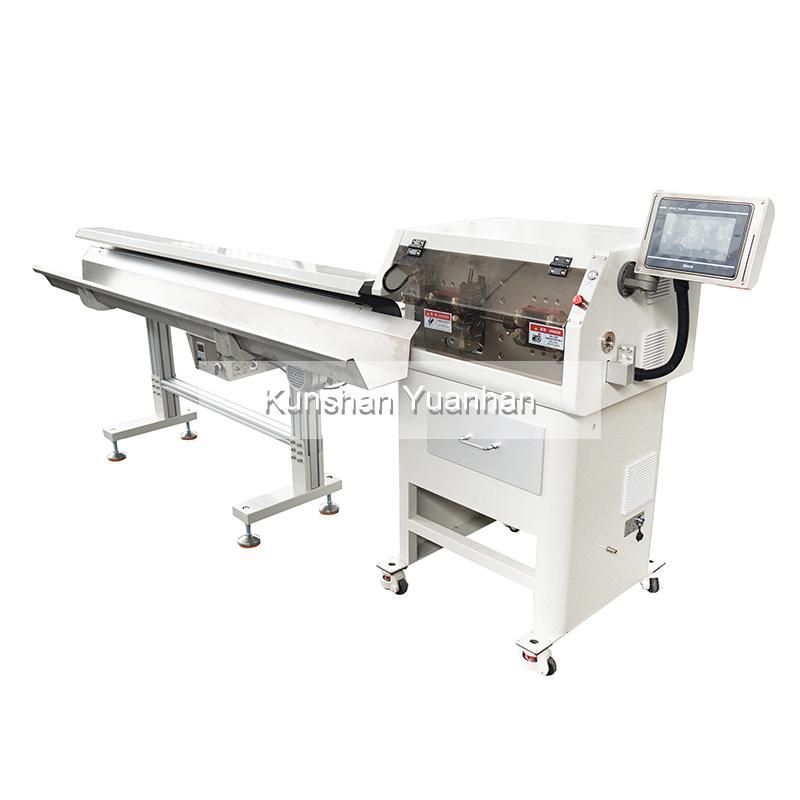

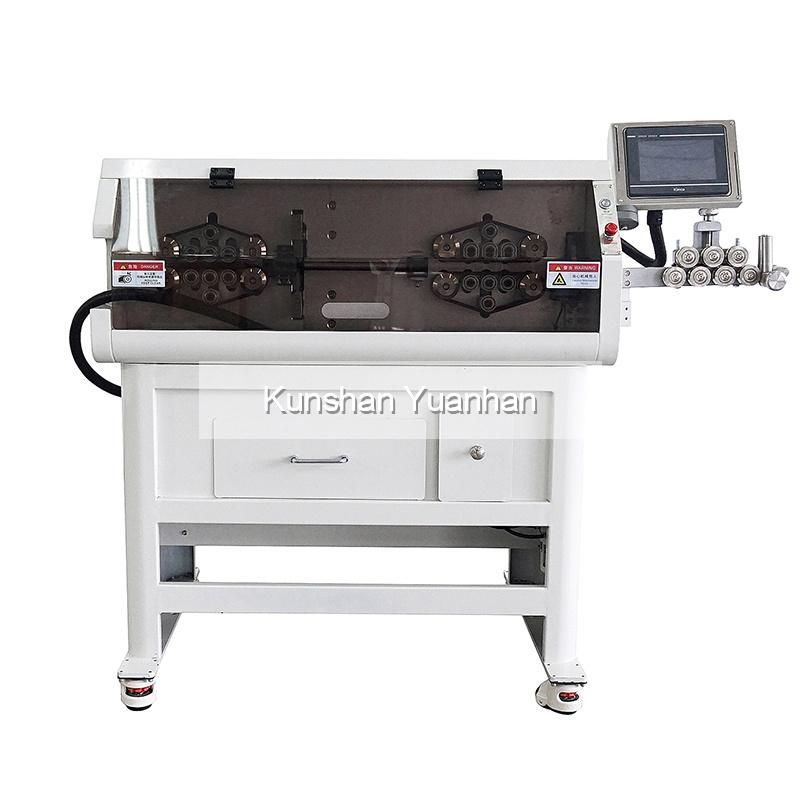

Large Cable Cutting and Stripping Machine Multi-Core Sheathed Cables Stripping Twisting Machine

Kunshan Yuanhan Electronic Equipment Co., Ltd.
  • After-sales Service：24th
  • Driven Type：Electric
  • Condition：New
  • Certification：RoHS, ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic

Base Info

  • Model NO.：YH-8070H ,YH-SXJ2

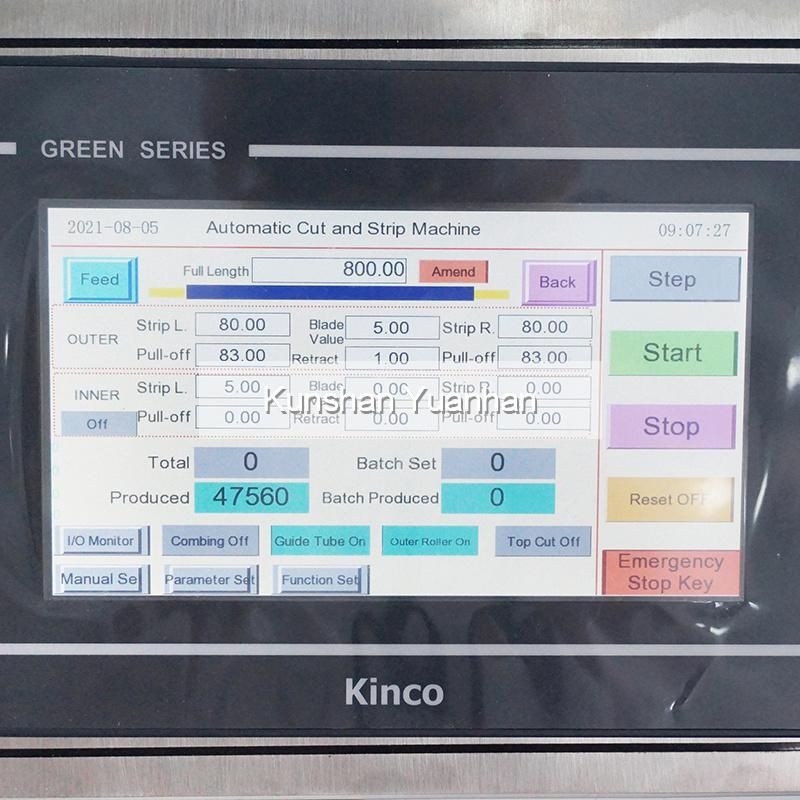

  • Display：7 Inch True Color Touch Screen
  • Function：Cutting and Stripping
  • Feeding Method：12-Wheel Belt Feeder
  • Cutting Length：0.01-999999.99mm
  • Wire Diameter：10-70 mm2
  • Core Wires：2-8 Cores
  • Head Peeling：Head Peeling Max 120mm
  • Tail Peeling：Tail Peeling Max 240mm
  • Stripping Accuracy：0.01mm
  • Blade Material：Japanese Tungsten Steel,Swedish High Speed Steel
  • Capacity：2300PCS,H
  • Detect Function：Wire Presence Detection
  • Air Pressure：0.5-0.8MPa
  • Input Power：AC220V,50Hz
  • Power：3.2kw
  • Transport Package：Double-Layer Export Carton
  • Specification：530*530*400mm
  • Trademark：yuanhan
  • Origin：China
  • HS Code：8479819000
  • Production Capacity：L=100mm, 3000-7000PCS,H

Description

Φ25Blades materialimported high speed steelCapacity1800 PCS/hDriving mode32 wheel drive (silent hybrid stepping motor, servo tool holder)Feeding methodFeeding with belt, the cable has no indentationRemarkThe machine can be customized for processing special cables, and the sample cable should be sent to us for test


Product Pictures
Large Cable Cutting and Stripping Machine Multi-Core Sheathed Cables Stripping Twisting MachineLarge Cable Cutting and Stripping Machine Multi-Core Sheathed Cables Stripping Twisting MachineLarge Cable Cutting and Stripping Machine Multi-Core Sheathed Cables Stripping Twisting MachineLarge Cable Cutting and Stripping Machine Multi-Core Sheathed Cables Stripping Twisting Machine

Large Cable Cutting and Stripping Machine Multi-Core Sheathed Cables Stripping Twisting MachineLarge Cable Cutting and Stripping Machine Multi-Core Sheathed Cables Stripping Twisting MachineLarge Cable Cutting and Stripping Machine Multi-Core Sheathed Cables Stripping Twisting Machine

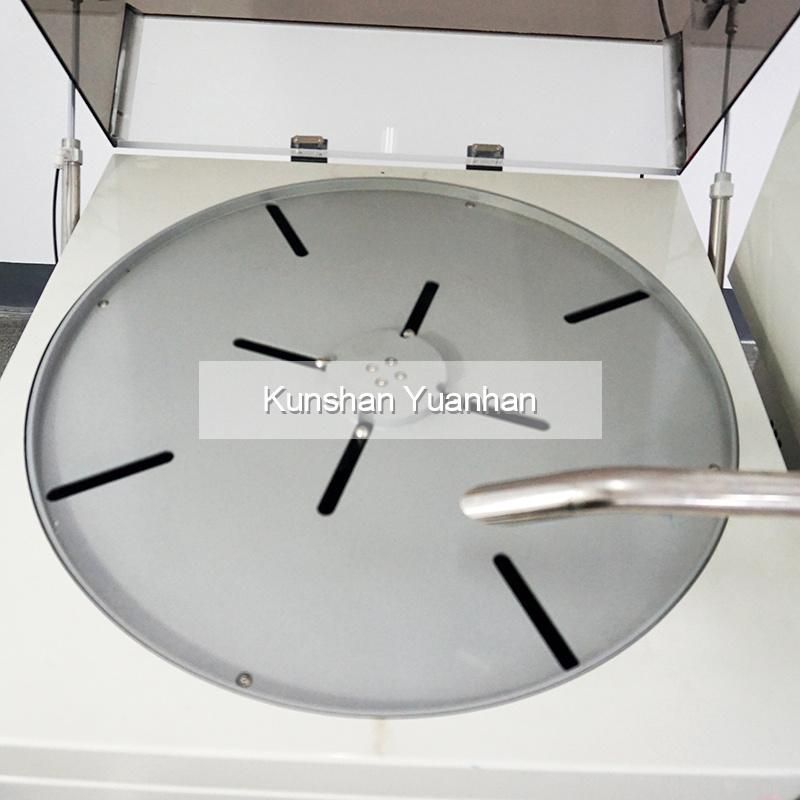

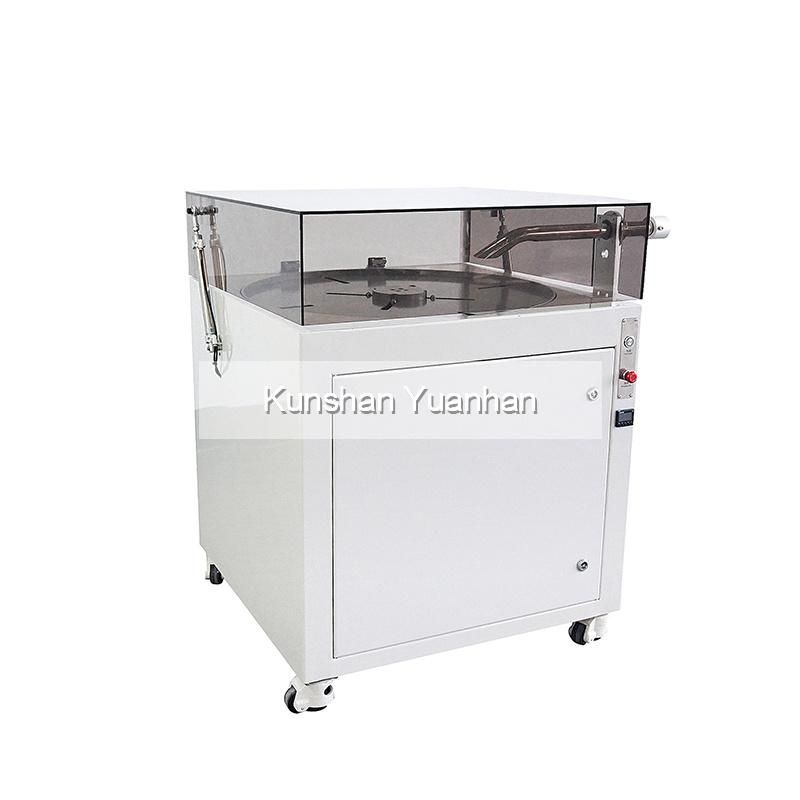

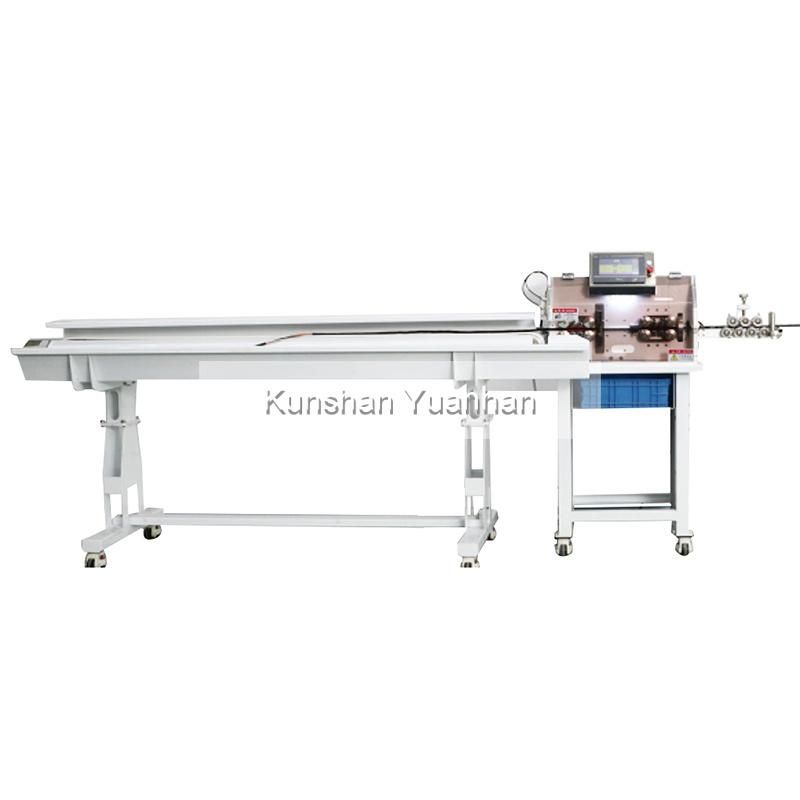

  30 square sheathed wire cutting and stripping both inside and outside. All-in-one machine, with manipulator + 2 meters of wire take-up frameLarge Cable Cutting and Stripping Machine Multi-Core Sheathed Cables Stripping Twisting MachineLarge Cable Cutting and Stripping Machine Multi-Core Sheathed Cables Stripping Twisting Machine



Features:

1.  Chinese and English switching display

2.  The key operation, convenient and quick, Can stay in the middle of 34mm glue,
3.  Make both ends semi-stripping and twisting.

4.  Easy and fast, ultra-high precision, while compatible with ordinary wire machine function, improve production efficiency.

Processing Capabilities: Cutting to length, Full strip,

Half strip, precision cut

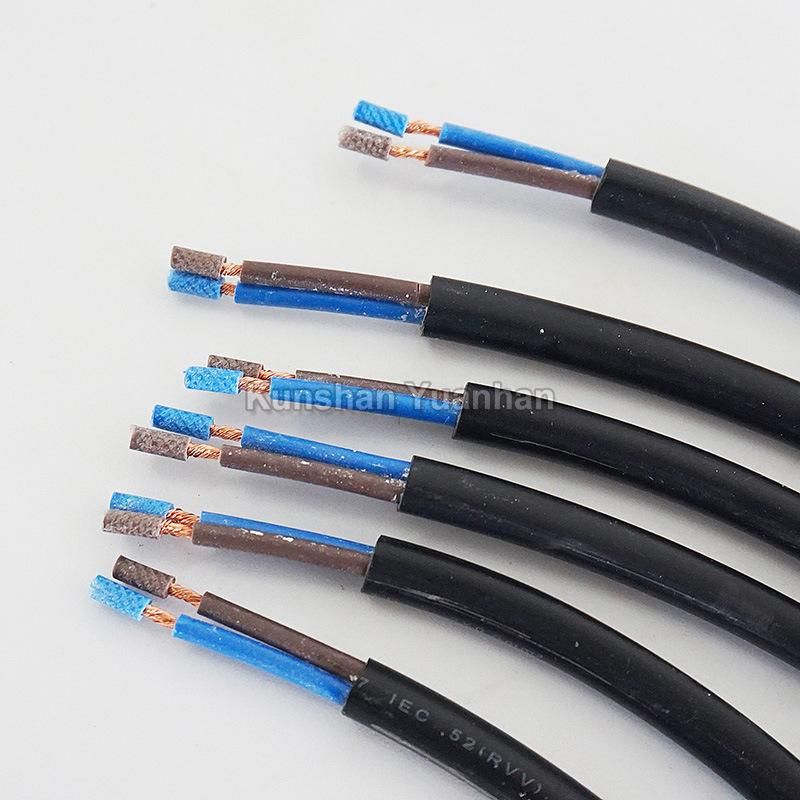

Sample: cut and strip wire automatically

Large Cable Cutting and Stripping Machine Multi-Core Sheathed Cables Stripping Twisting MachineLarge Cable Cutting and Stripping Machine Multi-Core Sheathed Cables Stripping Twisting Machine
Any questions, please feel free to contact us ! Thank you !
