Multi Core Wire Stripping Crimping and Rubber Seal Insertion Loading Machine

Kunshan Yuanhan Electronic Equipment Co., Ltd.
  • After-sales Service：All Life
  • Driven Type：Electric
  • Condition：New
  • Certification：RoHS, ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic

Base Info

  • Model NO.：YH-3000FS
  • Model：Yh-3000fs
  • Capacity：About 1,200 Pieces,Hour
  • Applicable Wire Diameter：0.2mm2;-2.5mm2;
  • Cutting Precision：+-0.02mm
  • Stripping Length：0-10mm
  • Crimping Force：3t
  • Crimping Stroke：30mm
  • Single Cycle：3 Seconds
  • Rubber Seal Size：Diameter Less Than10*10mm
  • Crimping Mode：Servo Crimping
  • Power Supply：AC 200V 50Hz
  • Compressed Air：0.5-0.7MPa
  • Dimensions：1,100mm*920mm*1,600mm
  • Weight：350kg
  • Transport Package：Wooden Case Package
  • Specification：180x175x180cm
  • Trademark：yuanhan
  • Origin：China
  • HS Code：8479819000
  • Production Capacity：50PCS,Month

Description

350KG

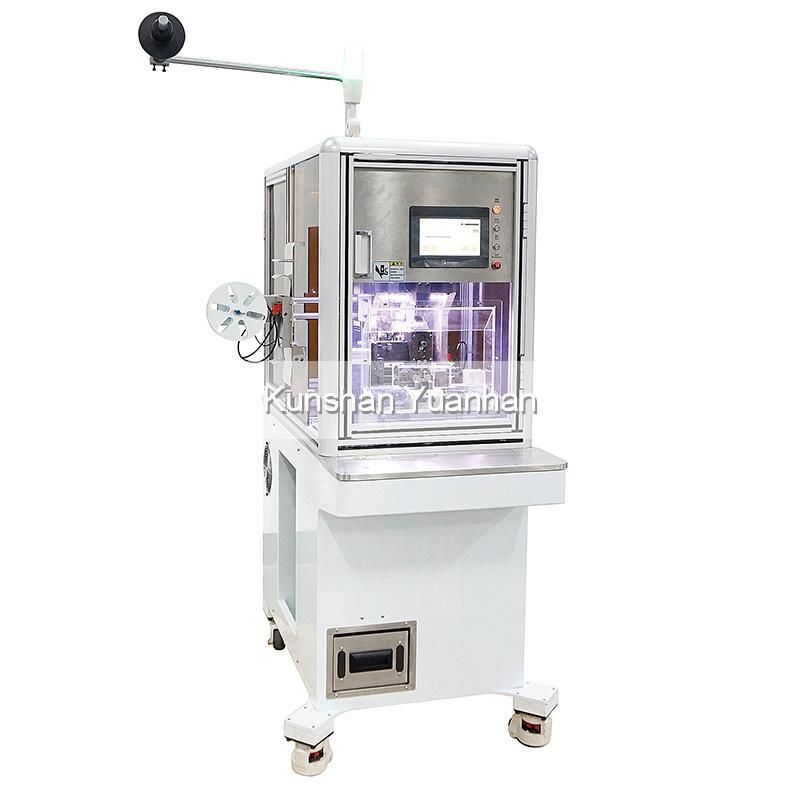

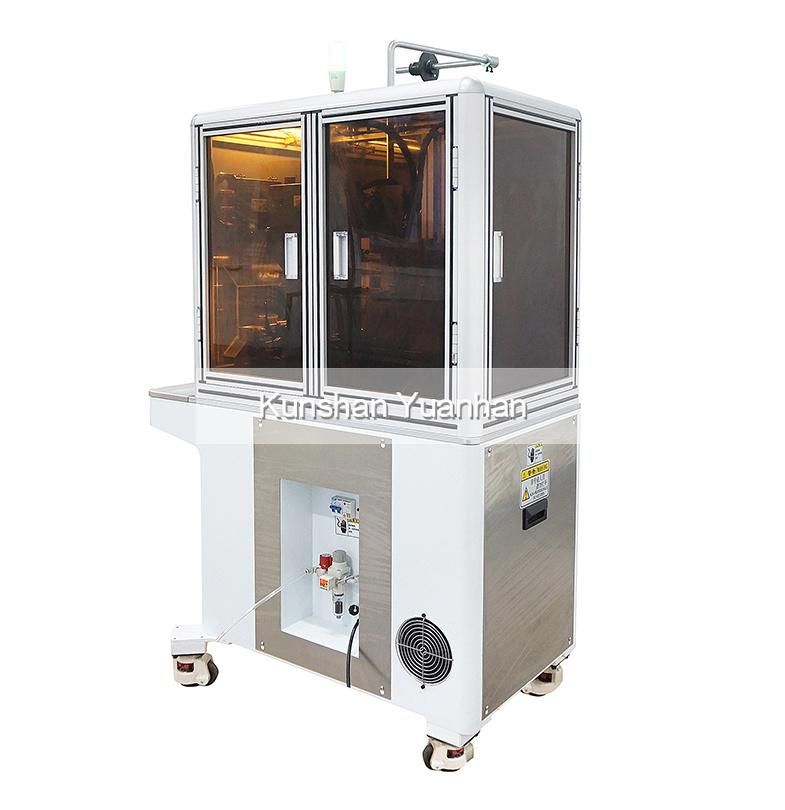

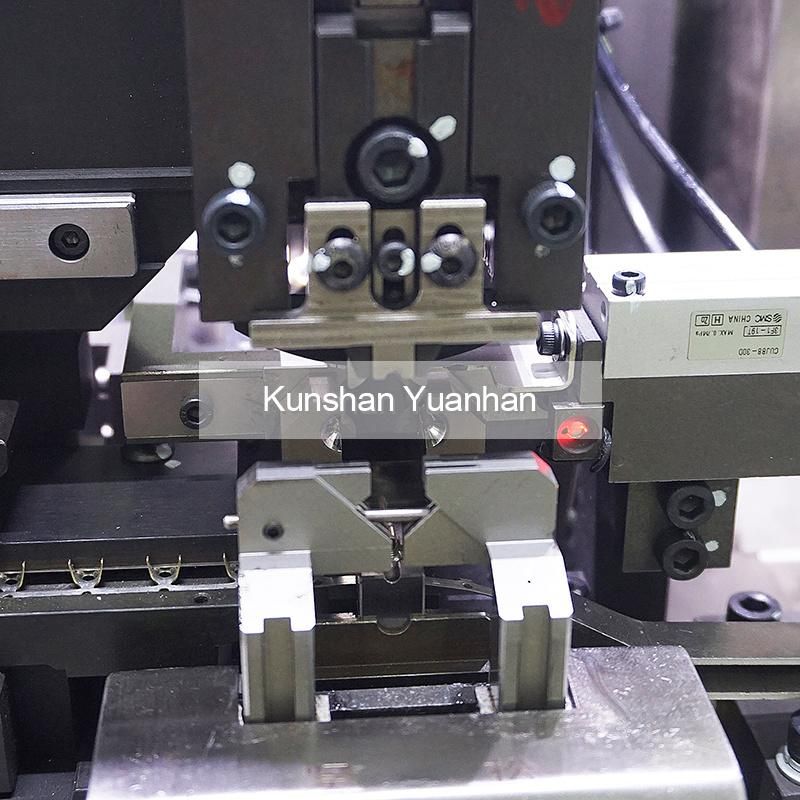

Machine Shows

Multi Core Wire Stripping Crimping and Rubber Seal Insertion Loading MachineMulti Core Wire Stripping Crimping and Rubber Seal Insertion Loading Machine

Multi Core Wire Stripping Crimping and Rubber Seal Insertion Loading MachineMulti Core Wire Stripping Crimping and Rubber Seal Insertion Loading MachineMulti Core Wire Stripping Crimping and Rubber Seal Insertion Loading MachineMulti Core Wire Stripping Crimping and Rubber Seal Insertion Loading MachineMulti Core Wire Stripping Crimping and Rubber Seal Insertion Loading MachineMulti Core Wire Stripping Crimping and Rubber Seal Insertion Loading MachineMulti Core Wire Stripping Crimping and Rubber Seal Insertion Loading Machine


We have more models for your choices

Multi Core Wire Stripping Crimping and Rubber Seal Insertion Loading Machine



Company Shows
Multi Core Wire Stripping Crimping and Rubber Seal Insertion Loading MachineFor more details and inquiry please contact Ms. Alice, thank you!
