• Model NO.：HC-2BT
• Dimensions：300mm*280mm*450mm
• Weight：62kg
• Power：AC220V,60W
• Operations：Single Pedal Switch
• Crimping Force：Single Pedal Switch Crimping Forcet2.0 Ton
• Stroke：30mm
• Horse Power：1,4HP
• Stripping Length：1.0mm-6.0mm
• Wire Range：up to AWG15 (1.5sqmm)
• Transport Package：Wooden Box
• Specification：W300*L280*H450mm
• Trademark：hechang
• Origin：Changzhou
• HS Code：8479819000
• Production Capacity：20sets,Mouth

Basic Info.

Model NO. HC-2BT Dimensions 300mm*280mm*450mm Weight 62kg Power AC220V/60W Operations Single Pedal Switch Crimping Force Single Pedal Switch Crimping Forcet2.0 Ton Stroke 30mm Horse Power 1/4HP Stripping Length 1.0mm-6.0mm Wire Range up to AWG15 (1.5sqmm) Transport Package Wooden Box Specification W300*L280*H450mm Trademark hechang Origin Changzhou HS Code 8479819000 Production Capacity 20sets/Mouth

Product Description

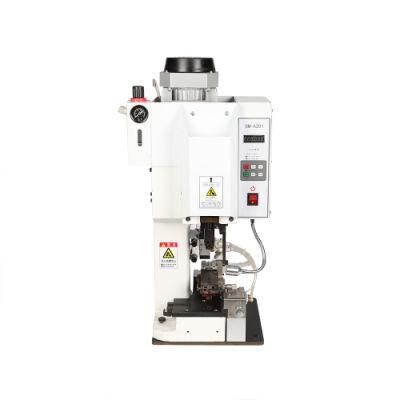

HC-2BT Wire stripping terminal crimping machine (up to AWG15)
Stripping wire and crimping terminals on one step


 Description
The mute HC-2BT terminal machine adoption high technology becomes repeatedly technique , the electron precision clampings,while pressing connecting dynamo operate the noise is smaller than traditional terminal crimping machine,and the provice give or get an electric shock and adjust a mold more convenience fast,avoid traditional terminal clutch,and electromagnet common faults.
Advanced motor-driven, super-mute, efficient, fewer parts and easy maintenance. With pneumatic source , clamp , peeling, knife back, sucking at one step , and visual wire thickness hardness adjusting feed time , the product has reached a stable precise stripping




Feature:

1. the machine molding tool connect a body, don't need to replace a molding tool and quickly save time .
2. the voltage is stable, the velocity is quick, and the accuracy is high.
3. Chain/joint terminals workable
4. the structure is agile,easily move working area, small operate sound .
5. folder lines, peeling , knife forward block,suction-inch cutting are automatic and dynamic devices, to facilitate movement of the adjustment process.



Model	HC-2BT
Dimensions	300mm*280mm*450mm
Weight	62kg
Power	AC220V/60W
Operations	Single pedal switch
Crimping force	2.0 Ton
Stroke	30mm
Horse power	1/4HP
Stripping length	1.0mm-6.0mm
Wire range	Up to AWG15 (1.5sqmm)



Q1. What are your terms of packing?

A: Generally, we pack our goods in bulks or wooden box, suitable for shipping container.

Q2. What is your terms of payment? A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What are your terms of delivery?

A: EXW, FOB, CFR, CIF.

Q4. How about your delivery time?

A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.  Q5. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings.

Q6. What is your sample policy?

A: We can supply the sample if we have ready parts in stock.

Q7. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q8: How do you make our business long-term and good relationship?

A1:We keep excellent quality, thoughtful after-sales service and competitive price to ensure our customers' benefit; A2:We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from
