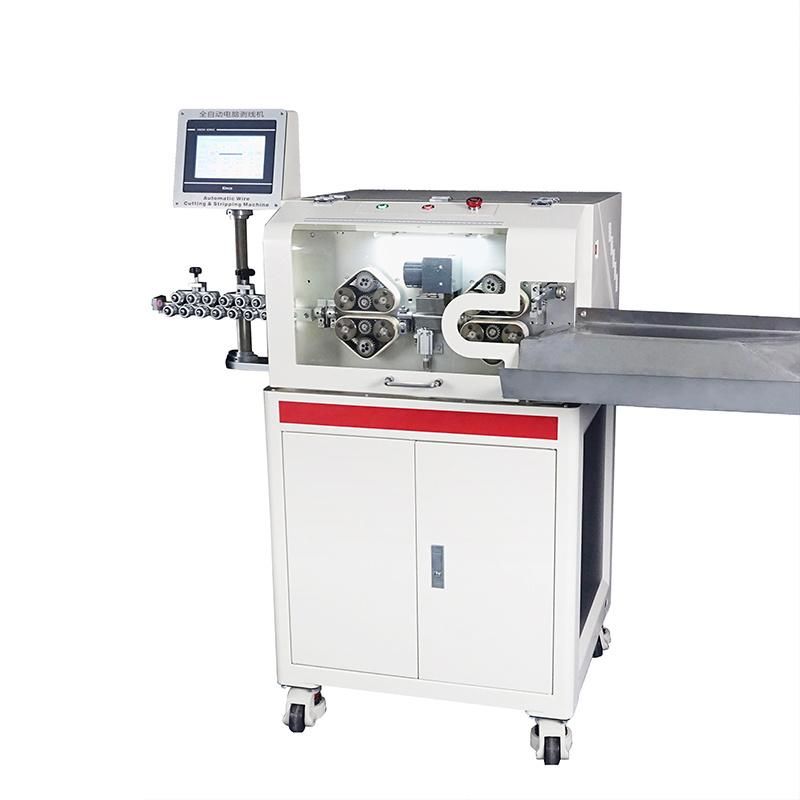

Automatic Multi-Core Cable Cutting and Stripping Machine for Stripping Outer Sheath and Inner Core Wire Insulation

Kunshan Yuanhan Electronic Equipment Co., Ltd.
  • After-sales Service：24th
  • Driven Type：Electric
  • Condition：New
  • Certification：RoHS, ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic

Base Info

  • Model NO.：YH-908HT
  • Display：7 Inch True Color Touch Screen
  • Function：Cutting and Stripping

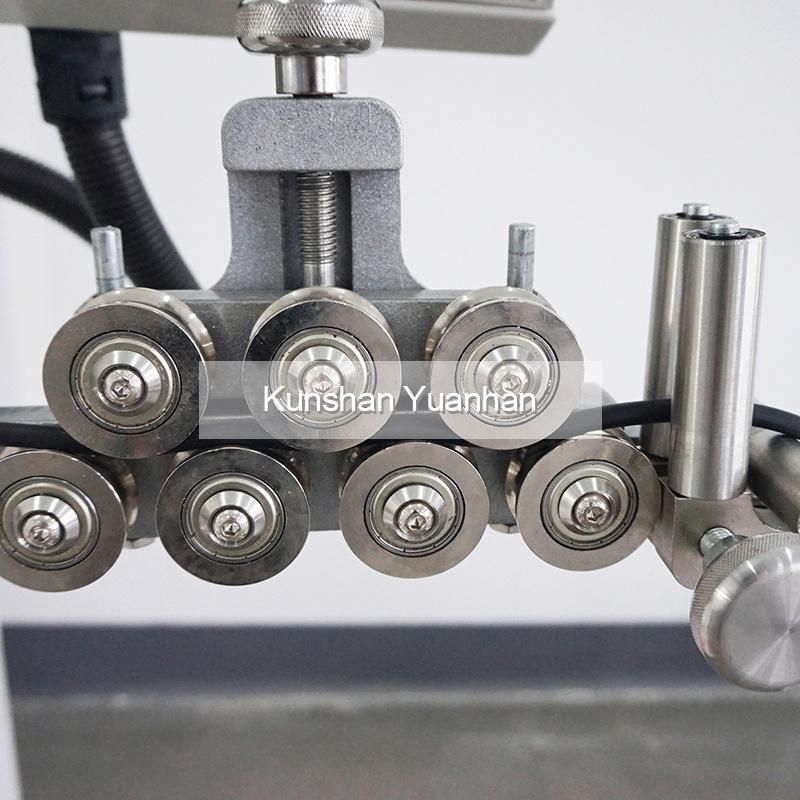

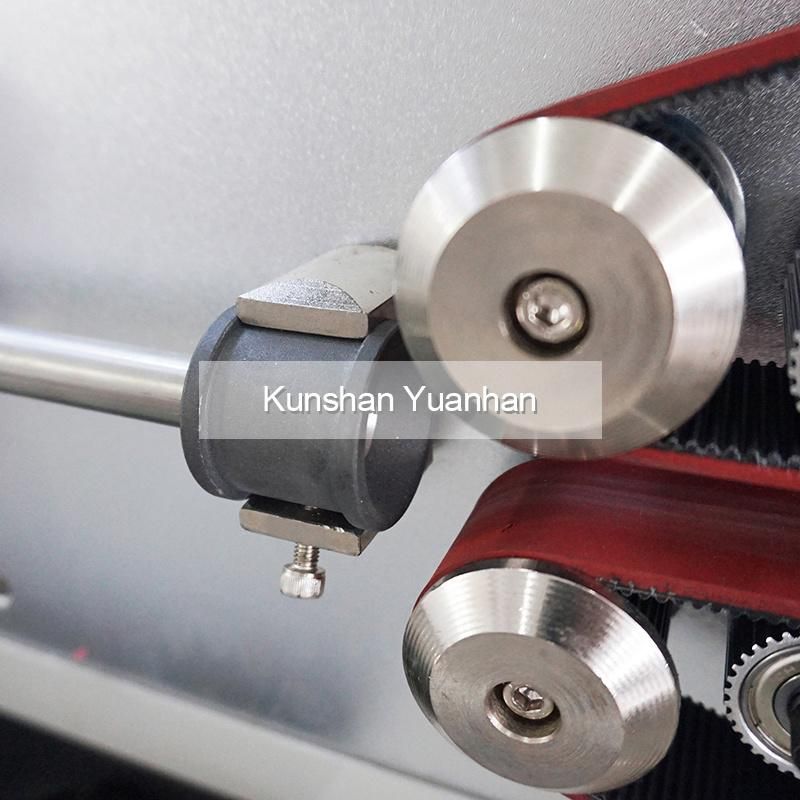

  • Feeding Method：12-Wheel Belt Feeder
  • Cutting Length：0.01-999999.99mm
  • Wire Diameter：φ3mm-φ10mm
  • Core Wires：2-8 Cores
  • Outer Sheath Stripping Length：Side a: 0.1-250mm, Side B: 0.1-70mm
  • Core Wire Stripping Length：Side a: 0.1-15mm, Side B: 0.1-15mm
  • Stripping Accuracy：0.01mm

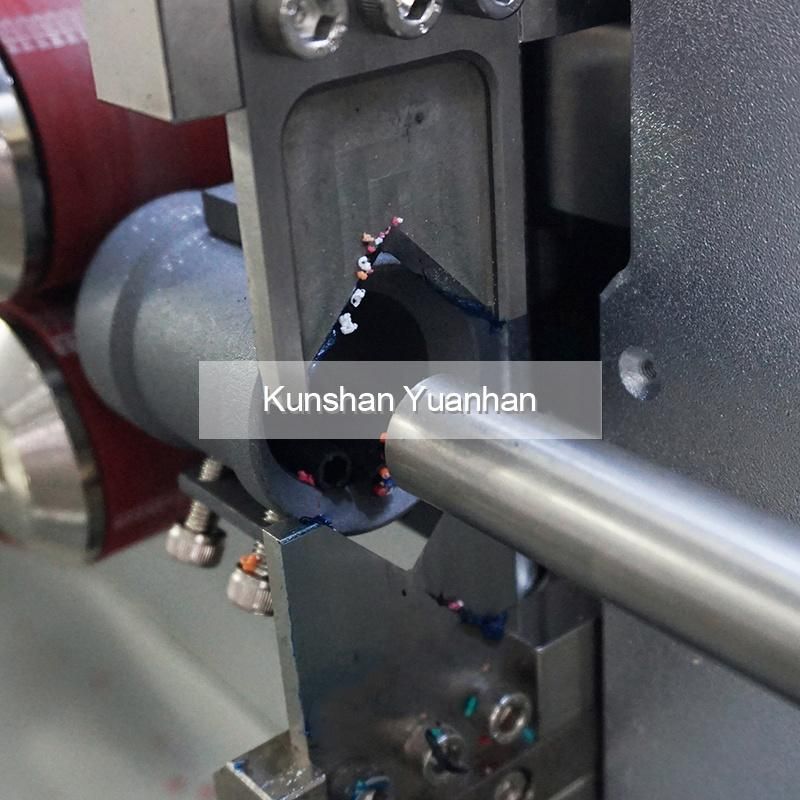

  • Blade Material：Japanese Tungsten Steel,Swedish High Speed Steel
  • Capacity：1100PCS,H (Length=500mm)

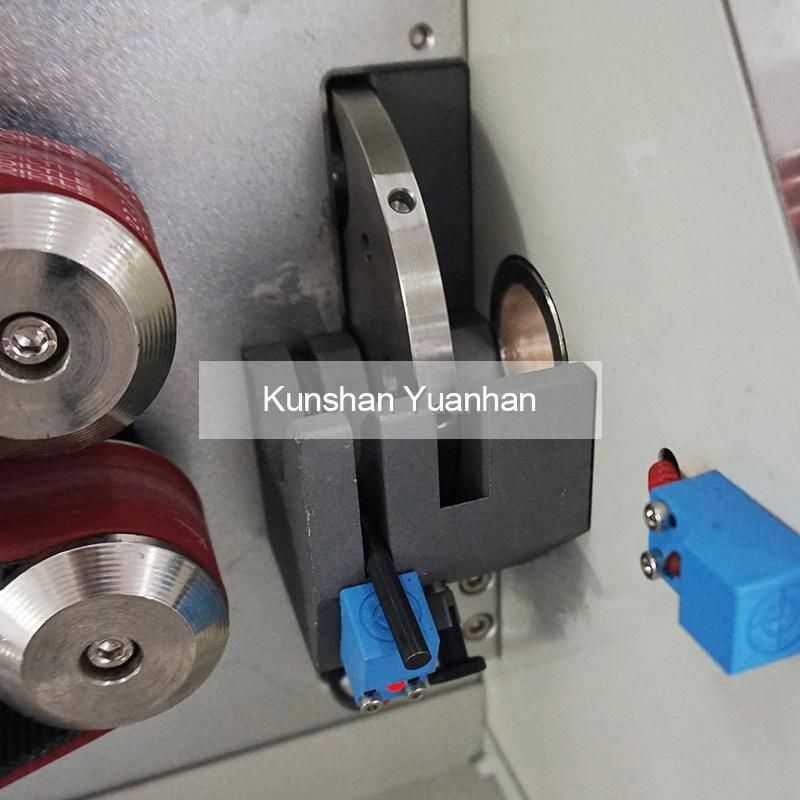

  • Detect Function：Wire Presence Detection
  • Air Pressure：0.5-0.8MPa
  • Input Power：AC220V,50Hz
  • Power：1.6kw
  • Transport Package：Double-Layer Export Carton
  • Specification：530*530*400mm
  • Trademark：yuanhan
  • Origin：China
  • HS Code：8479819000
  • Production Capacity：L=100mm, 3000-7000PCS,H

Description

ModelYH-908HTWeight120KGFeeding method12-wheel belt feederCutting length0.01-999999.99mmWire diameterφ3mm-φ10mmCore wires2-8 coresOuter sheath stripping lengthside A: 0.1-250mm, side B: 0.1-70mmCore wire stripping lengthside A: 0.1-15mm, side B: 0.1-15mmStripping accuracy0.01mmBlade materialJapanese Tungsten Steel/Swedish High Speed SteelCapacity1100pcs/h (length=500mm)Detect functionwire presence detectionAir pressure0.5-0.8MPaInput powerAC220V/50HzPower1.6KWRated power0.8KWTransmission structurehybrid stepping motor, precision ball screw, linear guideProgram storageserial number 00-99Display7-inch touchscreen display
Automatic Multi-Core Cable Cutting and Stripping Machine for Stripping Outer Sheath and Inner Core Wire Insulation
Automatic Multi-Core Cable Cutting and Stripping Machine for Stripping Outer Sheath and Inner Core Wire InsulationAutomatic Multi-Core Cable Cutting and Stripping Machine for Stripping Outer Sheath and Inner Core Wire InsulationAutomatic Multi-Core Cable Cutting and Stripping Machine for Stripping Outer Sheath and Inner Core Wire InsulationAutomatic Multi-Core Cable Cutting and Stripping Machine for Stripping Outer Sheath and Inner Core Wire InsulationAutomatic Multi-Core Cable Cutting and Stripping Machine for Stripping Outer Sheath and Inner Core Wire InsulationAutomatic Multi-Core Cable Cutting and Stripping Machine for Stripping Outer Sheath and Inner Core Wire InsulationAutomatic Multi-Core Cable Cutting and Stripping Machine for Stripping Outer Sheath and Inner Core Wire InsulationAutomatic Multi-Core Cable Cutting and Stripping Machine for Stripping Outer Sheath and Inner Core Wire InsulationAutomatic Multi-Core Cable Cutting and Stripping Machine for Stripping Outer Sheath and Inner Core Wire Insulation



Features:

1.  Chinese and English switching display

2.  The key operation, convenient and quick, Can stay in the middle of 34mm glue,
3.  Make both ends semi-stripping and twisting.

4.  Easy and fast, ultra-high precision, while compatible with ordinary wire machine function, improve production efficiency.

Processing Capabilities: Cutting to length, Full strip,

Half strip, precision cut

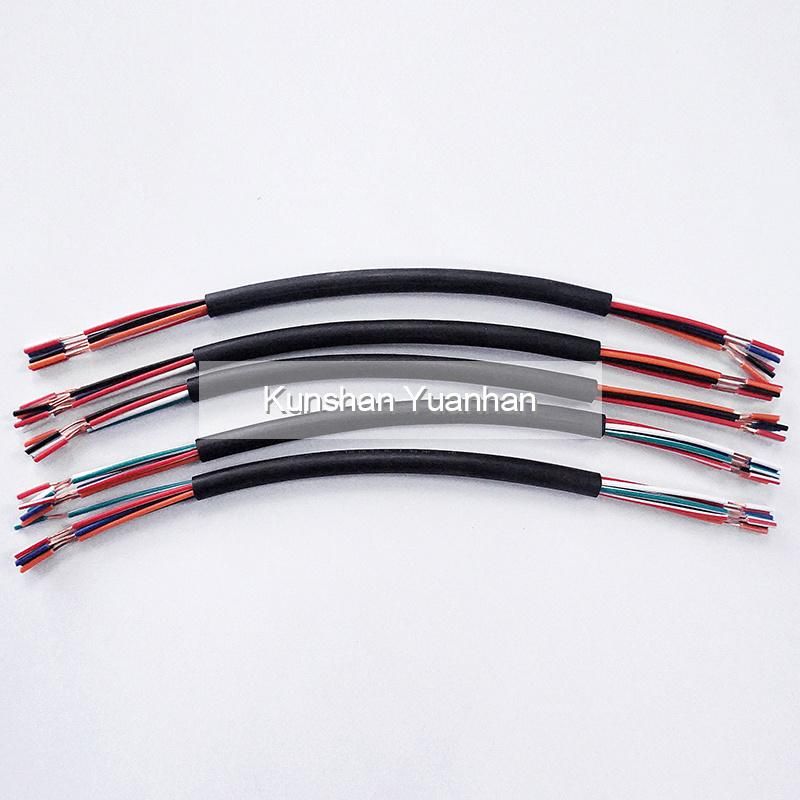

Sample: cut and strip wire automatically


Other Model

If you are not so sure of if it's ok, please contact us, we will recommend the correct model to you! Tested video of your sample is no problem too.



Packing & Shipping:

For small and light products packed by cartons,for large and heavy products packed by wooden
