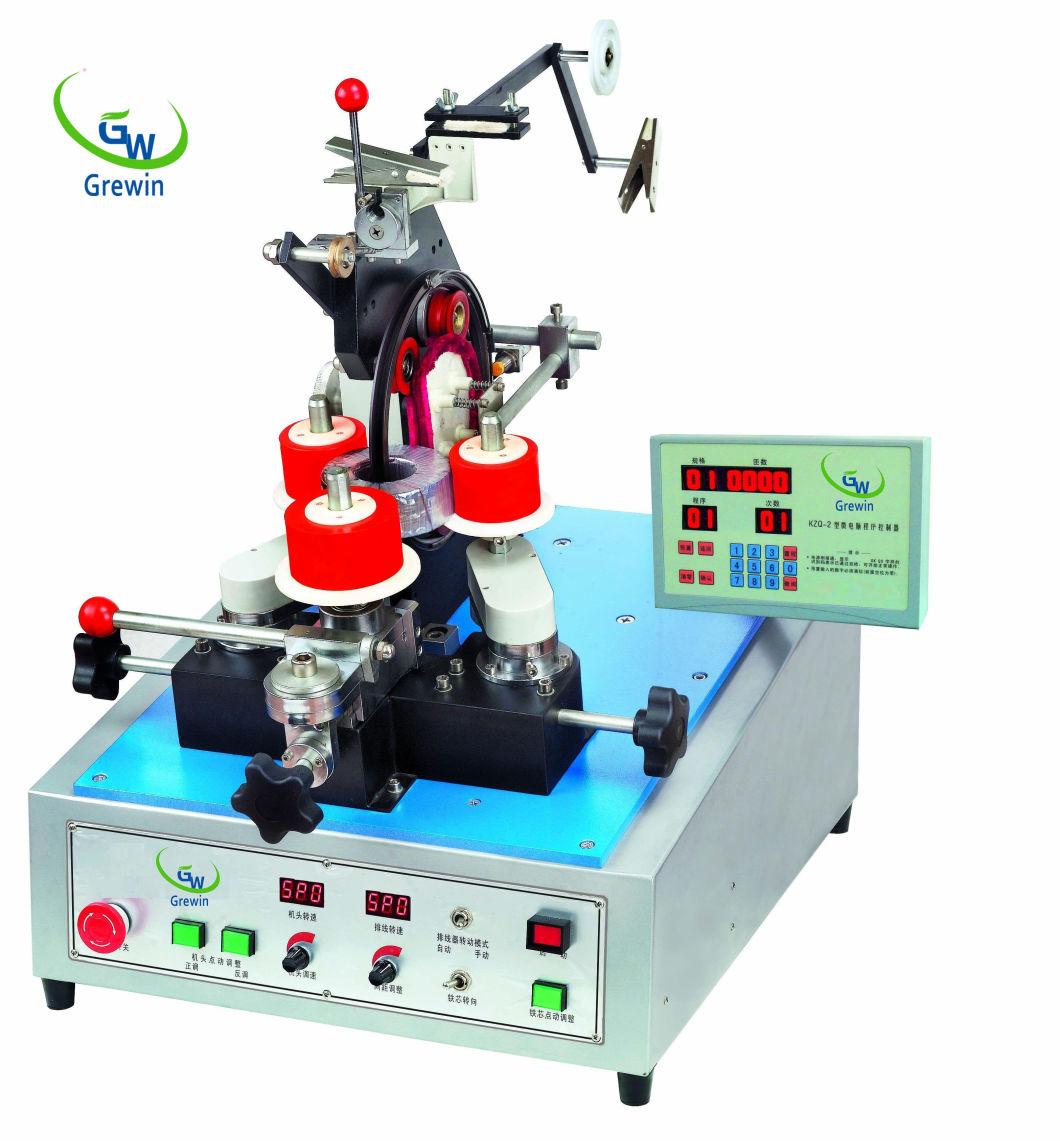

80mm Height Coil Transformer Tape Wrapping Winding Machine

Tianjin Grewin Technology Co., Ltd.
  • Voltage：220V
  • Tape Width：10(8, 12, 15)
  • Max.Final Coil.O.D：60-200
  • Min.Final Coil.I.D：30
  • Max.Final Coil Height：80
  • Controller Storage Capacity Programs：29 Sets

Base Info

  • Model NO.：GWTM-0118
  • Max.Taping Speed：200rpm
  • Tape Spacing：Proportional Linkage
  • Supply Voltage：AC 220V(50Hz)
  • Mechanical Dimensions：550*500*1100
  • Weight：100kg
  • Automatic：Automatic
  • Certification：RoHS, CE, ISO
  • Transport Package：Export Standard Carton or Customize Strong Pallet
  • Specification：CE
  • Trademark：Grewin
  • Origin：China
  • HS Code：85043190
  • Production Capacity：100PCS

Description

GWJ-0961Tape width15(8,10,12,20)Max. taping speed200 rpmMax. final coil O. D.φ65-430,φ55Tape spacingProportional linkageMin. final coil I. D.φ45-385,φ35Supply voltageAC 220V(50Hz)Max. final coil height80mmMechanical dimensions1000×950×780Controller storage capacity programs29(set)Weight110kg

Related Products

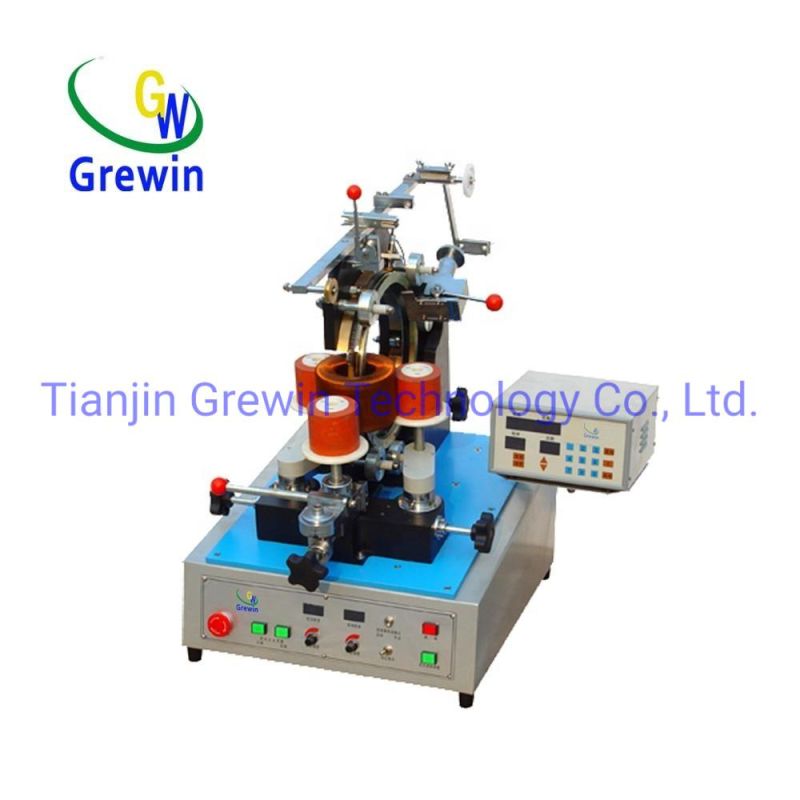

1.GWM-0119 Gear type toroidal coil winding machine

80mm Height Coil Transformer Tape Wrapping Winding MachineWire diameter0.70-2.50Max.winding speed200rpmMax.final coil.O.Dφ60-200Wire spacingProportional linkageMin.final coil.I.Dφ40Supply voltageAC 220V(50Hz)Max.finalcoil height100Mechanical  dimensions550*500*780Controller storage
capacity Programs29 (set)Weight94kgGWM-0119(winding machine/Mag.OD.400)
(unit): mm

2.GWSM-0219B Gear type toroidal coil winding machineWire diameter0.12-0.40Max.winding speed700rpmMax.final coil.O.Dφ60-200Wire spacingProportional linkageMin.final coil.I.Dφ20Supply voltageAC 220V(50Hz)Max.finalcoil height80Mechanical  dimensions550*500*700Controller storage
capacity Programs29 (set)Weight83kgGWSM-0219B (winding machine/Mag.OD.400)
(unit): mm
80mm Height Coil Transformer Tape Wrapping Winding Machine

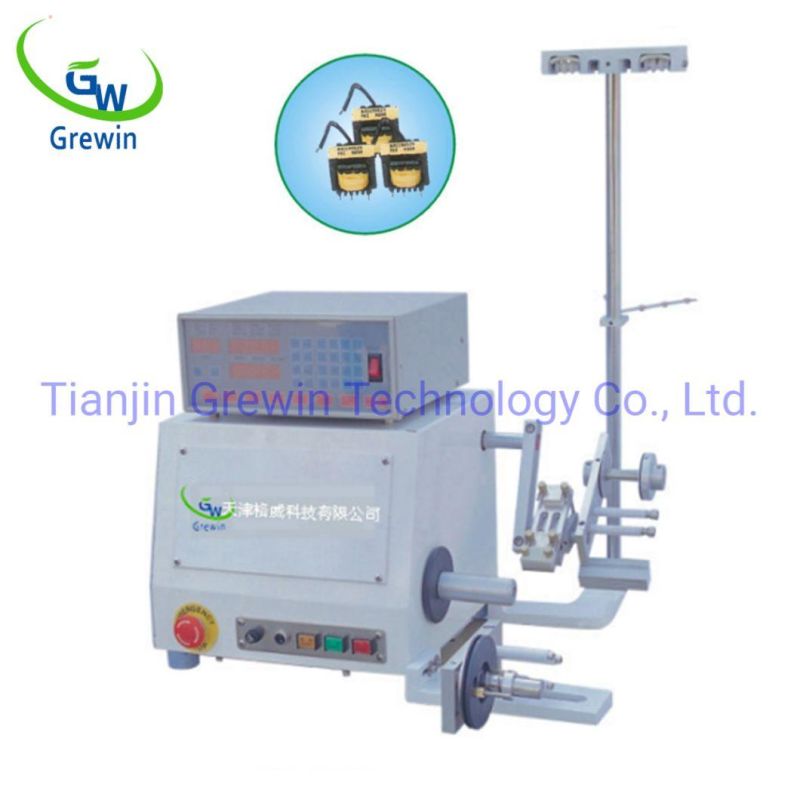

2.GW-9751i  high torsion coil winding machineWire diameter0.50-1.60Machine Revolution0-3000rpmSpread width200mmWinding width200mmwinding motor1/2HP DC motorSupply voltageAC 220V(50Hz)spread motorstepping motorMechanical  dimensions390*580*430Memory number999Weight32kgsGW-9751i (winding machine/Mag.OD.400)
(unit): mm
80mm Height Coil Transformer Tape Wrapping Winding Machine

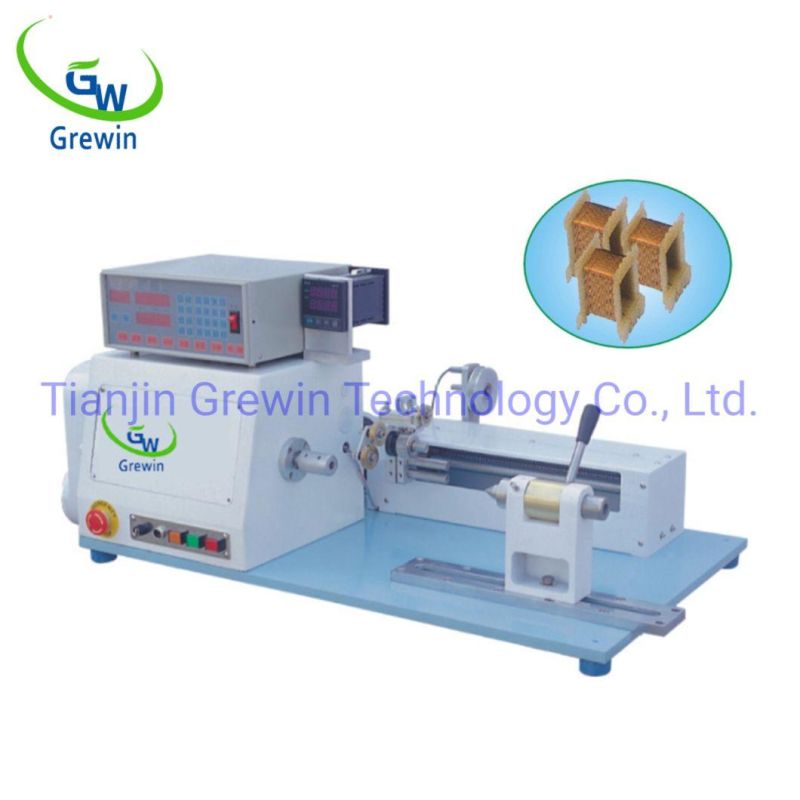

3.GW-9800  transformer coil winding machineWire diameter0.08-1.00Machine Revolution0-3000rpmSpread width200mmWinding width200mmwinding motor1/8HP DC motorSupply voltageAC 220V(50Hz)spread motorstepping motorMechanical  dimensions760*680*720Memory number999Weight32kgsGW-9800 (winding machine/Mag.OD.400)
(unit): mm
80mm Height Coil Transformer Tape Wrapping Winding Machine
Why Choose Us
1.operating videos
2.24 hours technical support
3.1 year free Warranty4.Free training.
5. OEM/ODM accept

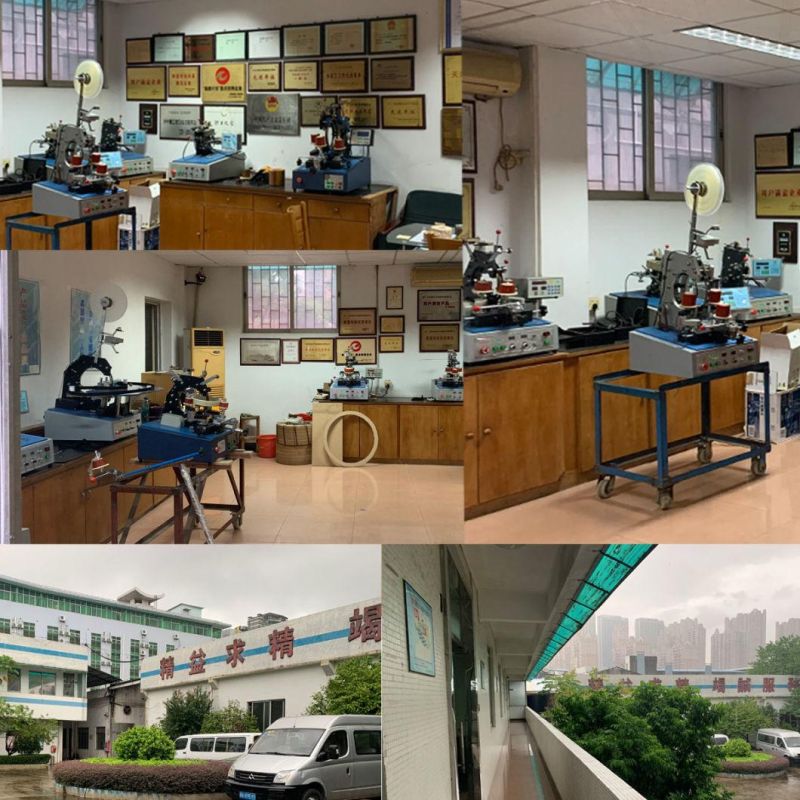

Company Information and Profile
