• Model NO.：SUNY W1-F
• Type：High-speed Chip Mounter
• Quantity of Mounting Head：6
• Quantity of Cameras：One Set of Flying Camera System
• Max. PCB Board Size：330*250mm
• Z Axis Max. Moving Range：15mm
• Motors：Panasonic Servo System
• Transport Package：Standard Export Package
• Trademark：SUNY
• Origin：Hunan China
• Production Capacity：500PCS,Month

Basic Info.

Model NO. SUNY W1-F Type High-speed Chip Mounter Quantity of Mounting Head 6 Quantity of Cameras One Set of Flying Camera System Max. PCB Board Size 330*250mm Z Axis Max. Moving Range 15mm Motors Panasonic Servo System Transport Package Standard Export Package Trademark SUNY Origin Hunan China Production Capacity 500PCS/Month

Product Description

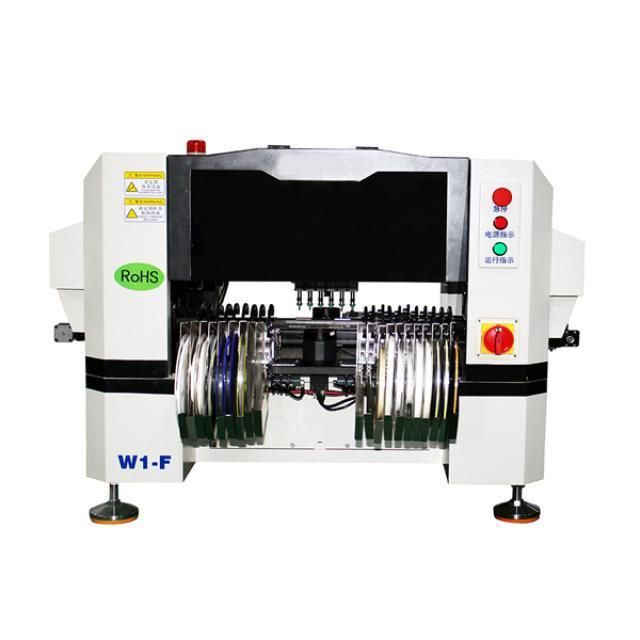

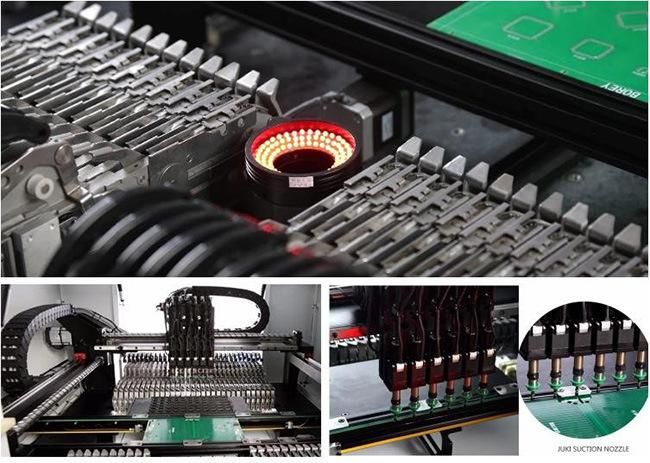

Item:6 Heads Full-automatic Visual SMT Pick and Place Machine
Model: SUNY W1-F

Product Parameters:


Quantity of Mounting Head	6

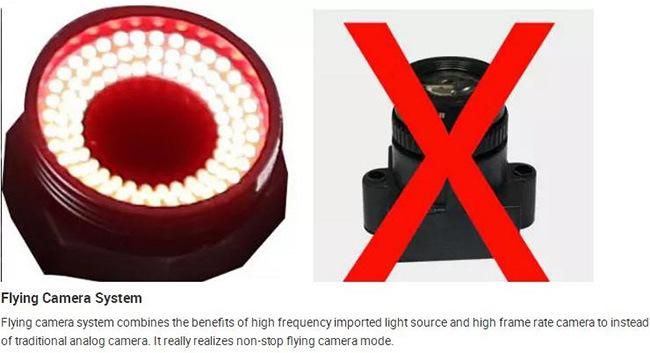

Quantity of Cameras	One Set of Flying Camera System
Max. PCB Board Size	330*250mm
Z Axis Max. Moving Range	15mm

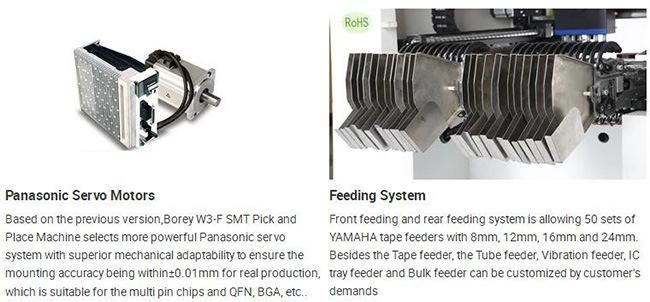

Quantity of Feeders Available	50 sets of Type Feeders of 8mm ,12mm,16mm and 24mm,Supporting tube feeder,Bulk feeder and IC tray feeder.
Max. Theoretical Mounting Speed	8000CHP
Average Theoretical Mounting Speed	6000CHP
Positioning Accuracy	0.01mm
Resetting Accuracy	±0.03mm
Buffering Range of Suction Nozzle	4mm

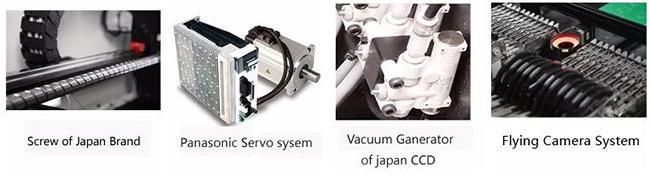

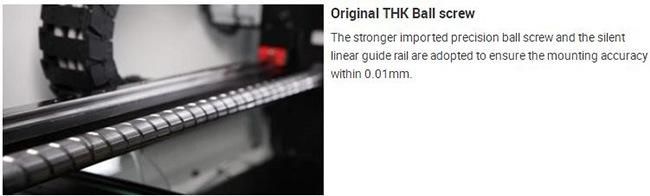

Motion Driving System	Panasonic Servo Control System+Original THK Ball Screw

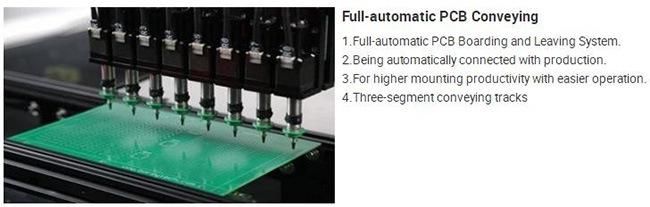

PCB Boarding Mode	on-line automatic boarding
Component Rotational Angle	0-360°, synchronous rotation
Operating System	Windows XP ,Win7 operating system

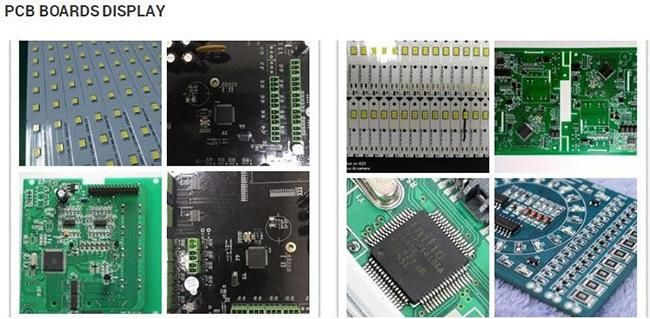

Components Available	0402, 0603, 0805 RC Components, Diode, Triode, SOT, TSOP, SOP and PLCC, CSP, QFP, BGA(35*35mm)with line spacing at 0.3mm, etc.
Motors	Panasonic Servo system
Visual Display	Industrial Control Display (Proportion: 4:3; Resolution: 1280*1024)
X/Y Motion Mode	2 axes simultaneous motion
Average Power	1000W
Power Supply	220V 50HZ
Programming Mode	able to import file format, like: Pick place file, Protel file, and import coordinates point by point.
Net Weight	About 200KG
Compressed Air Supply	0.6Mpa
Overall Dimension	1050*950*720mm
