Foam-PE Chemical Foaming Extrusion Machine Extruder Extrusion Equipment Extruding Line

Dongguan Newtopp Electrical Machinery Co., Ltd.
  • Driven Type：Electric
  • Condition：New
  • Certification：CCC, UL, CE
  • Warranty：12 Months
  • Screw：Single-Screw
  • Transport Package：Standard Shipping Packing

Base Info

  • Model NO.：XJ30+25
  • Specification：XJ30-70
  • Trademark：NEWTOPP
  • Origin：China
  • Production Capacity：200sets,Year

Description

Basic Info.

Model NO. XJ30+25 Specification XJ30-70 Trademark NEWTOPP Origin China Production Capacity 200sets/Year

Product Description

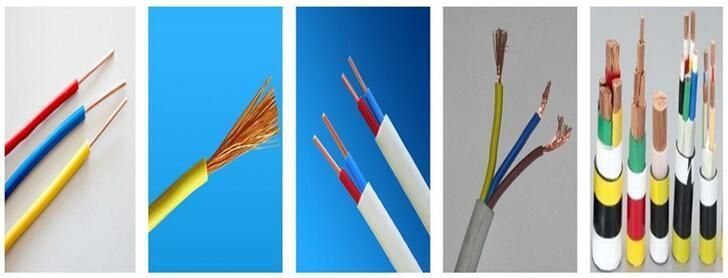

Application field:
Used for CAT5E, CAT6, IEEE1394, DVI, HDMI, etc. core wire dual layer co-extrusion chemical foaming or solid core wire extrusion.

Foam-PE Chemical Foaming Extrusion Machine Extruder Extrusion Equipment Extruding Line


Products feature:
1. High quality:The finished cable products up to international or national standards.Widely application FM-PE, PE, PP, PVC, SR-PVC material.Machine running speed: foaming core (Max)400m/min, solid core (Max)600m/min.
2. Strict QC:Equipped with outer diameter and capacitance detection device, which process control the product's outer diameter, foaming degree and other technological parameters.
3. Host machine:Choose the import cross-head device from Europe or the domestic high-quality double-layer cross-head device, realize the inner and outer layer of precision.
4. Electrical controller: Imported frequency converter +PLC touch screen control.


Foam-PE Chemical Foaming Extrusion Machine Extruder Extrusion Equipment Extruding Line

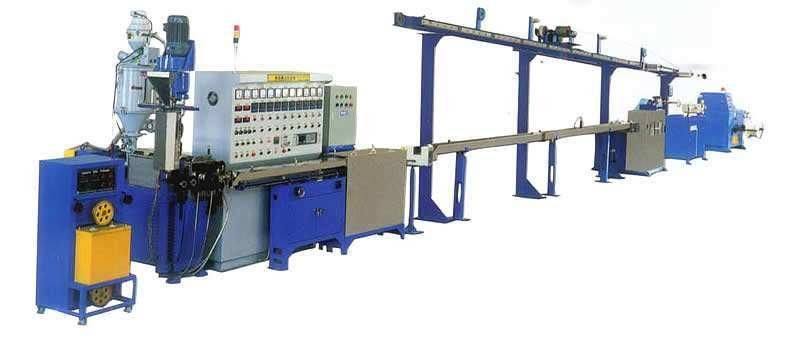

Machine parts:
Consist of active pay-offs stand,copper conductor pre-heater, straightening machine, host machine&auxiliary machine of the extrusion line,automatic suction&drying machine,electric main control cabinet,moveable constant temperature water tank,in water static capacity tester,outer diameter measuring caliper, fixed cistern,dual wheel capstan, horizontal line storage rack, high frequency spark machine, dual-axis take-up stand etc.

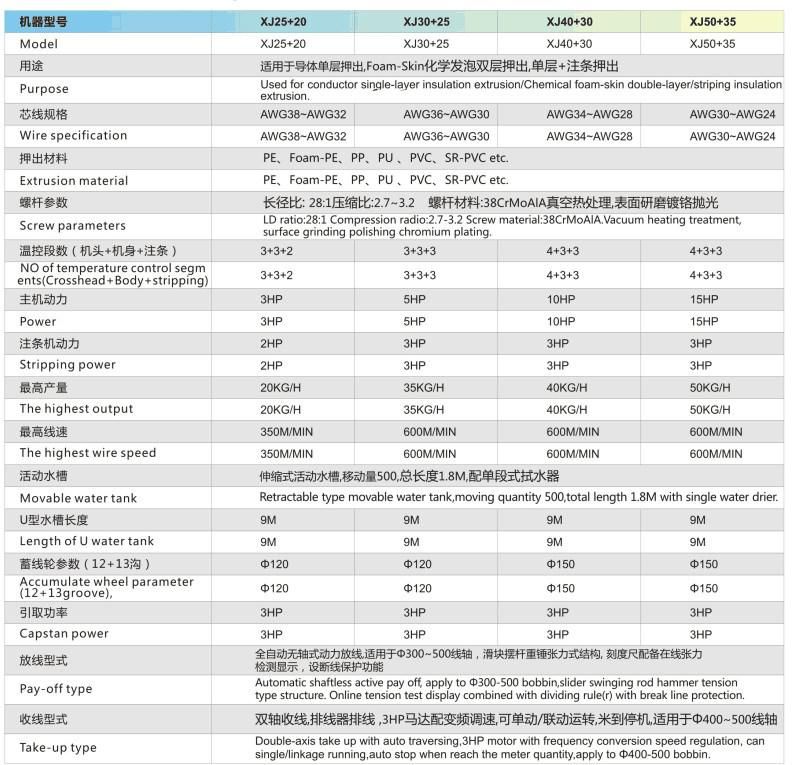

Technical parameters
Foam-PE Chemical Foaming Extrusion Machine Extruder Extrusion Equipment Extruding Line



Our Service

Pre-Sales Service                                      After-Sales Service

* Inquiry and consulting support.              * Training how to install the machine,  and how to use the machine.
* Customized design support.                   * Engineers available to service machinery overseas.
* View our Factory.

About us

Foam-PE Chemical Foaming Extrusion Machine Extruder Extrusion Equipment Extruding Line
Newtopp electrical machinery Co., Ltd. is anational high&new technology enterprise. It located in Humen Town, Dongguan city, and through ISO9001 quality certification and IS014001 environmental management system certification.
Our company is professional in design and manufacture high-end wire and cable equipment, mainly products included: the copper bunching machine, teflon extrusion machine, insulation extrusion machine, chemical foaming extrusion machine, physical foaming extrusion machine, jacket sheath extrusion machine, planetary type cage twisting/stranding machine, Numerical control type double layers / multi layer taping machine, Cantilever type single twisting/stranding machine, lan cable back-twist pair twisting/stranding machine etc.

Trade exhibition
Foam-PE Chemical Foaming Extrusion Machine Extruder Extrusion Equipment Extruding Line

Certification and Patent

Foam-PE Chemical Foaming Extrusion Machine Extruder Extrusion Equipment Extruding Line
