• Model NO.：SUNY-ZTM500
• Working Power：AC380V,9kw
• Net Weight：200kg
• Overall Dimension：1400mm×1040mm×1250mm
• Transport Package：Standard Export Package
• Trademark：SUNY
• Origin：Hunan China
• Production Capacity：500PCS,Month

Basic Info.

Model NO. SUNY-ZTM500 Working Power AC380V/9kw Net Weight 200kg Overall Dimension 1400mm×1040mm×1250mm Transport Package Standard Export Package Trademark SUNY Origin Hunan China Production Capacity 500PCS/Month

Product Description

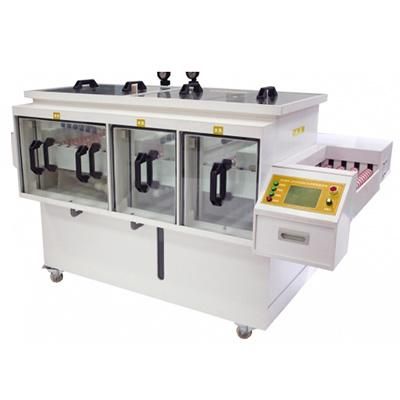

Item: Auto PCB etching and stripping film machine
Model: SUNY-ZTM500

Changsha Suny Electronic Technology Co.,Limited is a Professional manufacturer of the PCB production field. We have the factory in changsha of hunan, we can provide the:

PCB cutting machine
PCB  CNC drilling and milling machine
Circuit board buffing machine
Through-hole machine
Screen printing machine
Laser printer
Film laminator
Spray imaging machine
Spray etching machine
Spray stripping machine
Tin-sinking machine
Pick and place machine
Reflow Oven

SUNY with more than 10 years experienced engineer team,we can povide the professional  technical support as well as the overseas installation and training.

SUNY can provide all the related consumables and raw materials for the PCB machines and the PCB production line.

SUNY with the professional showing room in china, we provide the free installation and training service in china.

Our PCB making machine video:https://sunyinstrument.en.made-in-china.com

Specification:

1. Usage: realizing stripping process of the circuit board processing through high pressure spraying and automatic transmission;
2. ★Control system: high-performance ARM embedded processor + embedded operating system, human-computer interface: big screen color LCD screen + touch screen; In touch screen you can read electronic edition stripping process manual ; In touch screen you can play the video file in stripping process;
3. The machine adopts anticorrosive PVC material, with excellent anti acid and alkali performance;
4. The roof and the front of the machine both have double completely transparent glass windows, so the whole process can be observed;
5. ★With level automatic in board detection function, it can stop automatically in a due time, to make the machine operation more intelligent and automatic;
6. With up and down spraying pressure testing and adjustment function, it can make some adjustment to up and down spraying pressure according to the technical requirements;
7. With liquid level instruction window, you can understand the liquid level of the machine in real-time;
8. The machine configures four universal caster wheels for more convenient location adjustment of the equipment;
9. With automatic stripping, liquid isolation, automatic water washing, liquid blotting of board surface and other functions, realizing clean and environmental protect production of the PCB;
10. The effective work area: double-sided plate of 400 mm width; double-sided plate of unlimited length;
11. Working mode: PCB automatically in and out board, automatic high pressure spraying up and down double-sided;
12. Work time: 10~240s adjustable;
13. Temperature setting: 20~55°C;
14. Standard volume: 50L;
15. ★Optional configuration: Ethernet interface, realizing remote diagnosis, monitoring, booking open and close the machine and etc. through the wireless or local area network and the Internet, seamless connection with network management system and software, mating PCB network management software, providing long-term free upgrades service;
16. Power supply: AC380V/9KW;
17. Overall dimension: 1400mm×1040mm×1250mm;
18. Net weight: 200KG.
