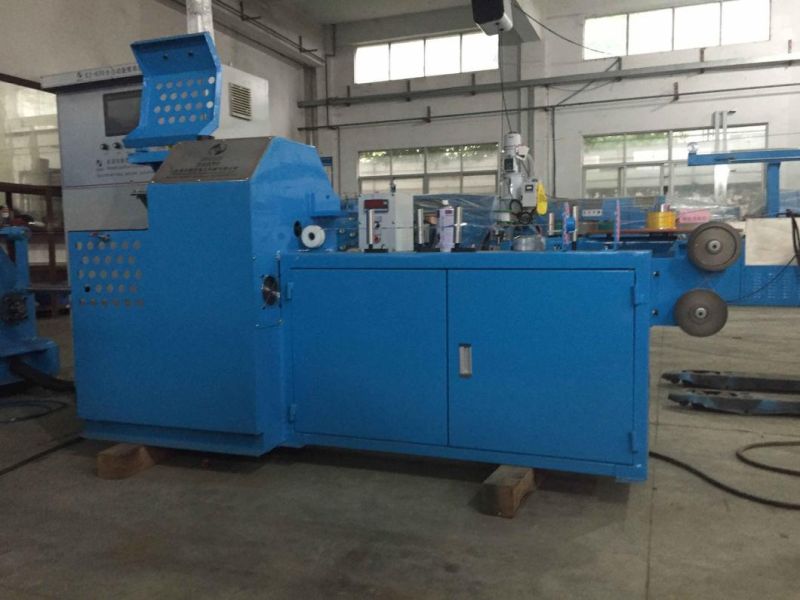

• Model NO.：XJ-800
• Type：Single Stranding Machine
• Transport Package：Standard Shipping Packing
• Specification：XJ800
• Trademark：NEWTOPP
• Origin：China
• Production Capacity：200sets,Year

Basic Info.

Model NO. XJ-800 Type Single Stranding Machine Transport Package Standard Shipping Packing Specification XJ800 Trademark NEWTOPP Origin China Production Capacity 200sets/Year

Product Description

Application field:

Used for high frequency wire,date wire,computer wire,power wire multi group twisting.


Machine technical parameter:

1.Wire specification:Φ0.6-5.0mm  Twisted outside diameter:Φ18mm
2.Rotate speed: Max 800rpm
3.Pitch range:Set pitch on touch screen:20-250mm,PLC control,pitch is steady when it's accelerate and decelerate.
3.Tapping material: Aluminum foil tape,cotton paper tape,transparent tape,mica tape,teflon tape etc.
4.Wrapping type:Single-head horizontal type high speed centering taping device+double-head longitudinal taping device.
5.Wrapping tension:Adopt Magnetic clutch+PLC automatic calculation,wrapping tension keep constant from start to end,needn't any adjustment.
6.Take-us type: Axis-row type,no damage during the traversing process,traversing space and distance can be set freely according to the wire specification.







Machine parts:

No.	Parts name&Specs.	Qty
1	ø500mm*6 heads active pay-off stand	1set
2	Centering tapping device	1set
3	Electrical control cabinet(touch screen)	1set
4	Main machine (take up)	1set

Main parts brand

1.Motor: Siemens
2.Frequency converter: Yaskawa

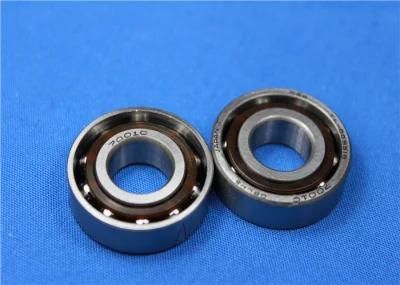

3.Bearing: NSK  (Japan brand)
4.Electrical component: Schneider(France) or SHIHLIN(Taiwan)
5.PLC controller: FATEK(Taiwan)
6.Touch screen: Tontek (Taiwan) or Pro-face(international brand)



Our Service

Pre-Sales Service                                      After-Sales Service

* Inquiry and consulting support.              * Training how to install the machine,  and how to use the machine.
* Customized design support.                   * Engineers available to service machinery overseas.
* View our Factory.
