• Model NO.：XJ-500
• Specification：XJ-500
• Trademark：Newtopp
• Origin：China
• Production Capacity：500set,Year

Basic Info.

Model NO. XJ-500 Specification XJ-500 Trademark Newtopp Origin China Production Capacity 500set/Year

Product Description

Application field:

Used to twisted wire and parallel wire single layers/double layers continuous centering tapping.



Machine  technical parameter:

1. Wire specification:AWG32-AWG42(0.2-0.5mm)
2. Aluminum foil tape,cotton paper tape,transparent tape,mica tape,teflon tape etc.
3. Rotate speed:Max2000rpm/Max18m/min
4. Power:Speed regulation by 1HP servomotor plus servo controller,wrapping plate is linkage with capstan motor
5. Wrapping tension:Wrapping tension automatic calculation tracking and keep constant from start to end.Needn't any artificial adjustment.
6. Heating device:Auto flexible type with Omron temperature control,the temperature will controlled within ±1ºC
7. Take-up tension:Take-up tension keep constant from start to end,needn't any adjustment.
8. Take-up: Axis-row type take up, no damage during the traversing process,distance can be set freely according the wire specification
9. Pay-off type:Straight line slide rail slider heavy hammer tension type power pay-off with variable frequency speedf regulation and set the break line protection function.

Machine parts:


No.	Parts name&Specs.	Qty
1	ø400-500mm four-heads dynamic pay-off	1set
2	ø350mm centering tapping device	2set
3	Electrical control cabinet(touch screen)	1set
4	Automatic heating machine	1set
5	Ø500mm Axis row-type take up machine	1set

Main parts brand

1.Motor: Siemens
2.Frequency converter: Yaskawa
3.Bearing: NSK  (Japan brand)
4.Electrical component: Siemens or Omron
5.PLC controller: Siemens
6.Touch screen: Tontek (Taiwan)




Our Service

Pre-Sales Service                                      After-Sales Service

* Inquiry and consulting support.              * Training how to install the machine,  and how to use the machine.
* Customized design support.                   * Engineers available to service machinery overseas.
* View our Factory.


About us

Company introduction



Dongguan NewTopp Electrical Machinery Co.,Ltd is a high-tech enterprise which professional in design and manufacture high-end wire and cable equipment,manily have the whole factory production line solution of Civil construction/power wire&cable,whole factory production line solution of Lan cable cat8/5E/6/6A/7,whole factory production line solution of HDMI,USB,SATA,RG59,6 etc. High frequency wire and cable,equipment include the copper bunching machine,teflon extrusion machine,insulation extrusion machine, chemical foaming extrusion machine,physical foaming extrusion machine,jacket sheath extrusion machine,planetary type cage twisting/stranding machine, numerical control type double layers/multi layers taping machine,cantilever type single twisting/stranding machine,Lan cable back-twist pair twisting/stranding machine etc. For more information please log in our official website http://dgnewtopp.en.made-in-china.com or feel free to contact us directly.


Our products

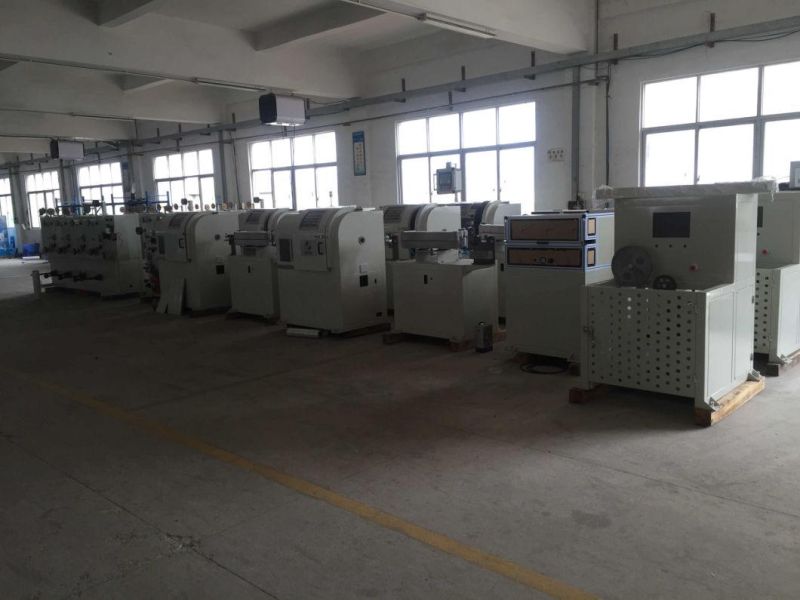

Products in client site


Certification and Patent
