Wire Drawing Spooler Coiler Static Payoff Machine
SHIJIAZHUANG SATLE MACHINERY MANUFACTURE CO., LTD.- Automatic Grade:Automatic
- Driven Type:Electric
- Warranty:12 Months
- Application:for Wire Drawing Machine Payoff
- Core Component:PLC, Engine, Bearing, Gearbox, Motor, Pressure Ves
- Voltage:380V,220V
Base Info
- Model NO.:800
- Key Selling Points:High Productivity
- Quality:High Standard
- Customize:Acceptable
- for:Wire Drawing Machine
- Export Experience:19 Years
- Transport Package:Waterproof Plastic Film
- Specification:1400*1000*570mm
- Trademark:SATLE
- Origin:China
- HS Code:8463300000
- Production Capacity:30 Sets Per Month
Description
Basic Info.
Model NO. 800 Key Selling Points High Productivity Quality High Standard Customize Acceptable for Wire Drawing Machine Export Experience 19 Years Transport Package Waterproof Plastic Film Specification 1400*1000*570mm Trademark SATLE Origin China HS Code 8463300000 Production Capacity 30 Sets Per MonthProduct Description

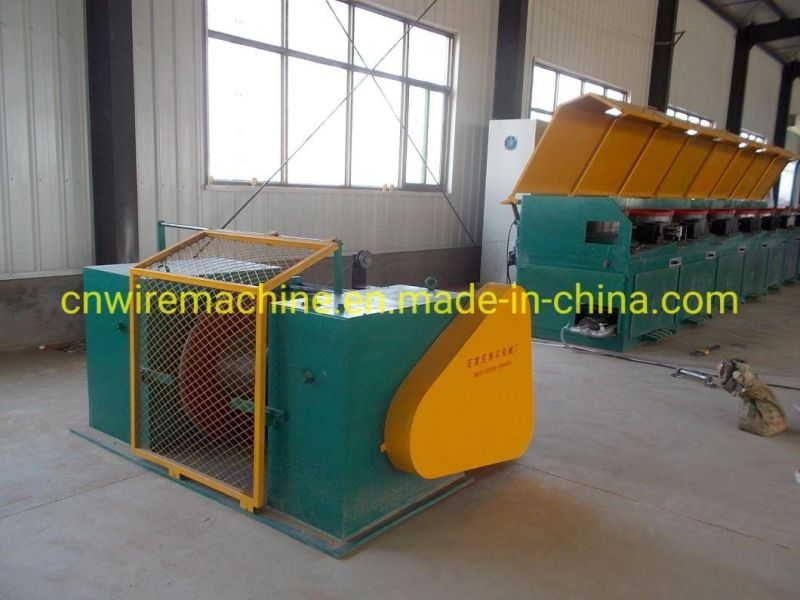

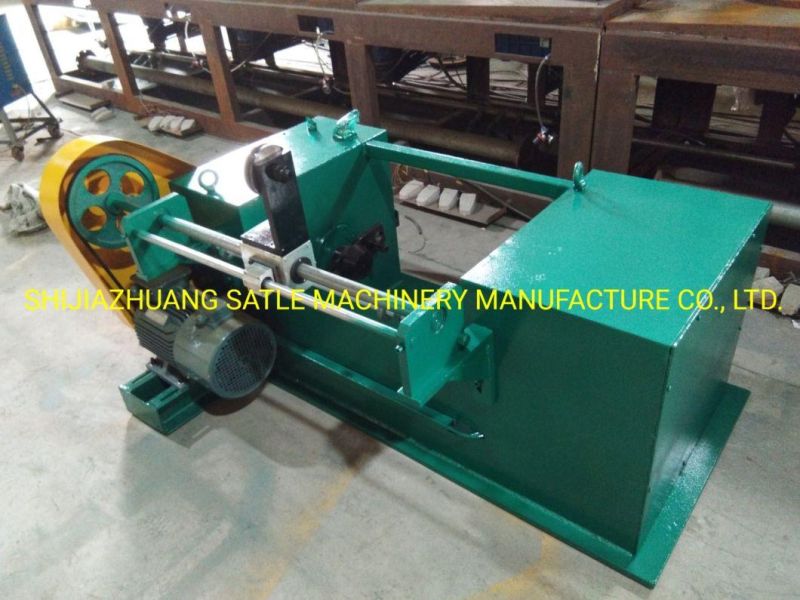

Spooler Vertical Drop Coiler Static Coiler payoff for Capstan Steel Wire Drawing Machine

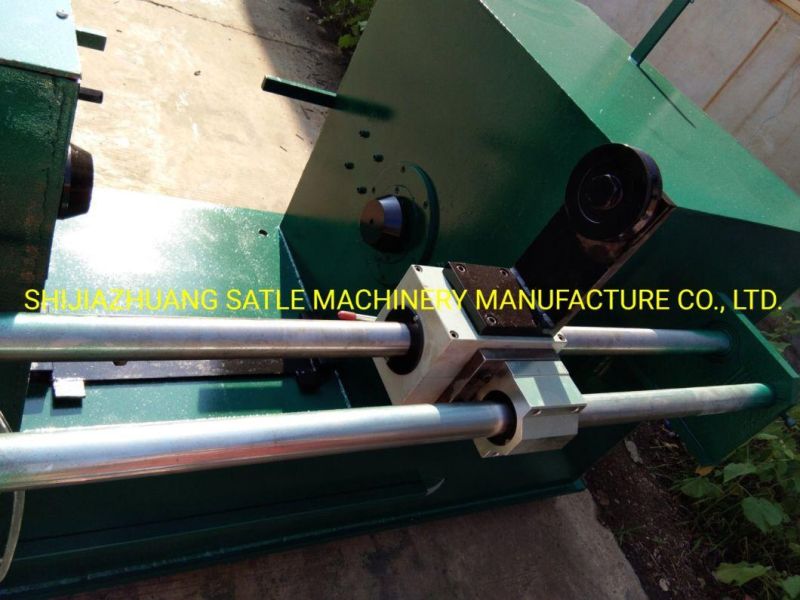

Constructed by one-piece welded steel plate,and completed by shaft-hole boring mill in one-shot process, the spool take-up machine with concentricity of 0.1mm can bear high coiling speed to 15m/s, excellent ancillary facility for high-speed wire drawing machine.
Maximum Diameter of Coiling Wire (mm) | 4.5-10mm |
Minimum Diameter of Coiling Wire (mm) | 0.8-3.5mm |
Torque Motor (n.s) | 40-60n.s |
Frequency Conversion Control (KW) | 5.5KW-15KW |
Maximum Coiling Speed | 12m/s |
Weight (kg) | 850kg |
Shijiazhuang Satle Machinery Manufacture Co.,Ltd. established in the year of 2001, is located in Shijiazhuang City, HeBei Province,China. The company, possessing a professional technical and production team, is mainly specialized in developing and manufacturing the whole set of welding wire production line and whole set metal wire drawing machine, including straight line wire drawing machine, water tank wire drawing machine, pulley wire drawing machine, horizontal drawing machine,trunk type take up machine,spooler take up machine, payoff machine, layer winding machine,straightening cutting machine and so on. Most the machines are automatic, high speed and effective.
