• Model NO.：XJ 30+50+35
• Motor：Siemens
• Transport Package：PE Film + Wooden Box
• Trademark：Newtopp
• Origin：Dongguan, China
• HS Code：8479400000
• Production Capacity：8sets,Month

Basic Info.

Model NO. XJ 30+50+35 Motor Siemens Transport Package PE Film + Wooden Box Trademark Newtopp Origin Dongguan, China HS Code 8479400000 Production Capacity 8sets/Month

Product Description

1.Machine Feature:
Used widely:Used for copper conductor wire physical foam-skin/skin-foam-skin dual/three-layers insulation extrusion and single layer+striping extrusion.Apply to all kinds communication cable,data cable,coaxial cable
,radio frequency cable,RG,JIS,DVI,HDMI and so on high demandingness foaming wire.
High output:Optimizing screw design,Screw durable,non cohesive gel,non take off a chrome,color change quickly,high wire speed,high output.
High quality:Extrusion concentricity:over 93%;OD tolerance:+/-0.005mm,capacitance value:+/-0.5PF
Temperature control precise:Adopted SCR power ccontrol machine with imported high quality temperature
control table,the machine temperature controlled within +/-1ºC.
Easy control: Intelligent control,wire diameter auto-feedback and adjustment,the first company in China  which can did that,hommization machine design combined with Newtopp specialized touch screen.make machine operation more easier and convenient.

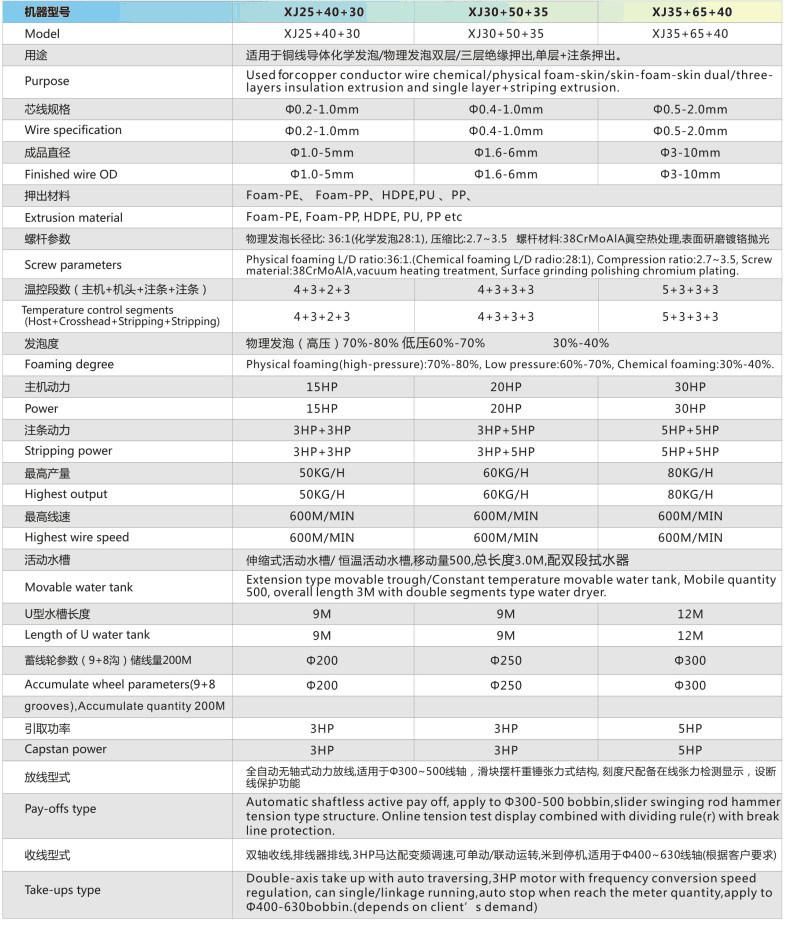

2.Technical parameters:





3.Brand of main parts:
1) Motor: Siemens
2) Driver: Yaskawa or inovance
3) Bearing:NSK, NACHI, ASCHI
4) Electric components: Imported famous brands.

Ø30mm+ Ø50mm+35mm CHEMICAL FOAMING EXTRUSION LINE  Main parts:
1.Ø300-500mm Active type payoff stand                                            1 set
2.Automatic high frequency copper wire preheater                             1 set
3. Straightening toolbox                                                                       1 set
4. Ø50mm Host extruder + Ø35mm +Ø30mm Auxiliary extruder        1 set
5. Electrical control cabinet                                                                  1 set
6. U7 Double-layer special foaming crosshead                                    1 set
7. 1.8M Automatic movable type water trough                                     1 set
8.  9M Single layer cooling water trough                                               1 set
9. High precision 9M horizontalaccumulator                                          1 set
10. Electrostatic capacity tester (Proton, UK original)                            1 set
11.  ø250 Double wheel capstan + Double shaft take-up machine         1 set
12.  Laser diameter tester(EECTRL shanghai)                                       1 set
13. High-frequency spark tester(CTEK)                                                  1 set
14. Supporting tools and spare parts                                                       1 set
15.  Operating instruction for the line                                                       1 book

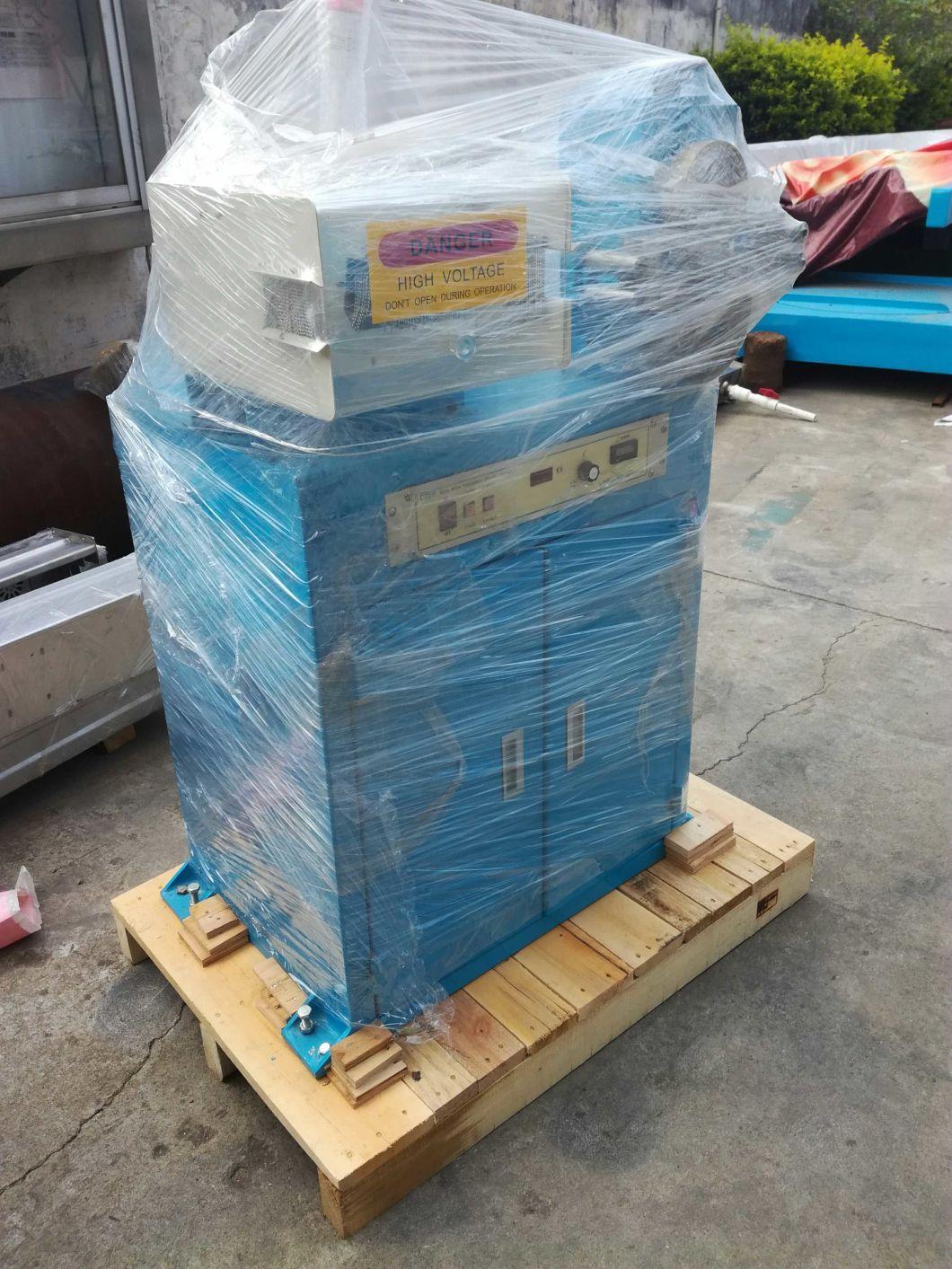

4.Packaging & Shipping:


5.Trade exhibition:








6.Our Services
Pre-sale Services:
1) Spot investigation and professional guiding suggestions;
2) Equipment configuration, model selection reference and technical consultation;
3) Onestop service for investment equipment,product developing, new materials researching and personnel training.
Sale Services:
1) Invite customers to inspect and take trials of finished machines;
2) Provide the training of the maintenance knowledge;
3) Improve the design to the operator's requirements.
After-sale Services:
1) Regular maintenance and product tracking service;
2) Cost price for required parts in lifelong period;
3) Provide quality and efficient after-sale service life long time.

7.Company certification
