Yh-Bw04 All in One Corrugated Tube Cutting Machine for Long Tube Cutting

Kunshan Yuanhan Electronic Equipment Co., Ltd.
  • After-sales Service：24th
  • Driven Type：Electric
  • Condition：New
  • Certification：RoHS, ISO, CE
  • Warranty：24 Months
  • Automatic Grade：Automatic

Base Info

  • Model NO.：Yh-bw04
  • Model：Yh-Bw04
  • Cutting Length：4.5-32mm
  • Cutting Tolerance：0.02mm
  • Cutting Diameter：4.5-32mm
  • Power：1500W
  • Speed：3000-8000PCS,H (L=100mm)
  • Voltage：220,110(V)
  • Gross Weight：70kg
  • Dimension：700*580*450mm
  • Transport Package：Double-Layer Export Carton
  • Specification：390*350*255mm
  • Origin：China
  • HS Code：8479819000

Description

Basic Info.

Model NO. Yh-bw04 Model Yh-Bw04 Cutting Length 4.5-32mm Cutting Tolerance 0.02mm Cutting Diameter 4.5-32mm Power 1500W Speed 3000-8000PCS/H (L=100mm) Voltage 220/110(V) Gross Weight 70kg Dimension 700*580*450mm Transport Package Double-Layer Export Carton Specification 390*350*255mm Origin China HS Code 8479819000

Product Description

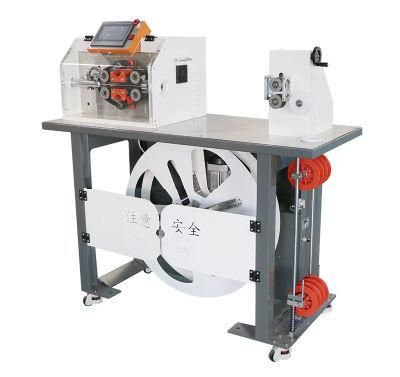

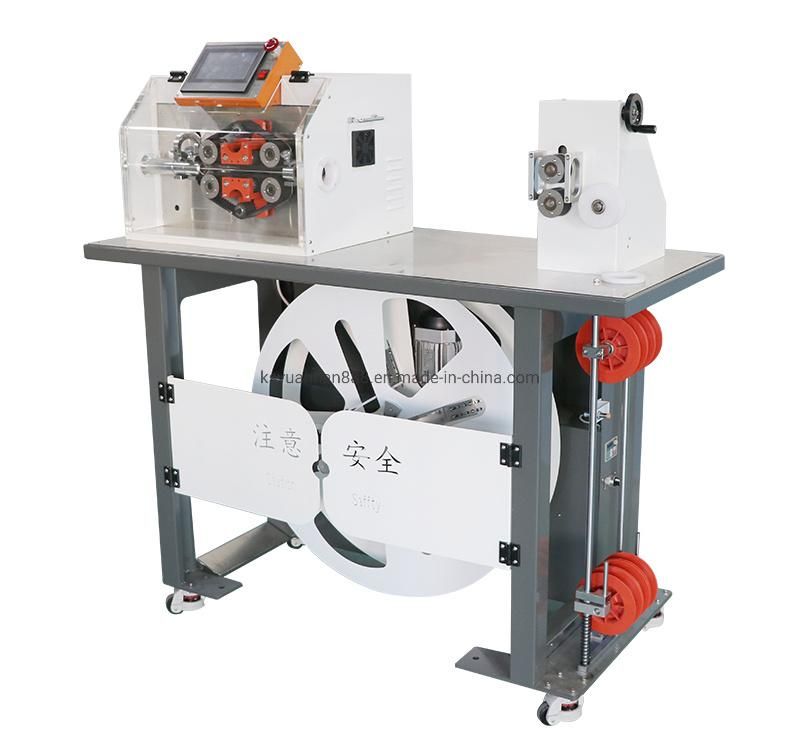

 YH-BW04 All in One Corrugated Tube Cutting Machine for long tube cutting

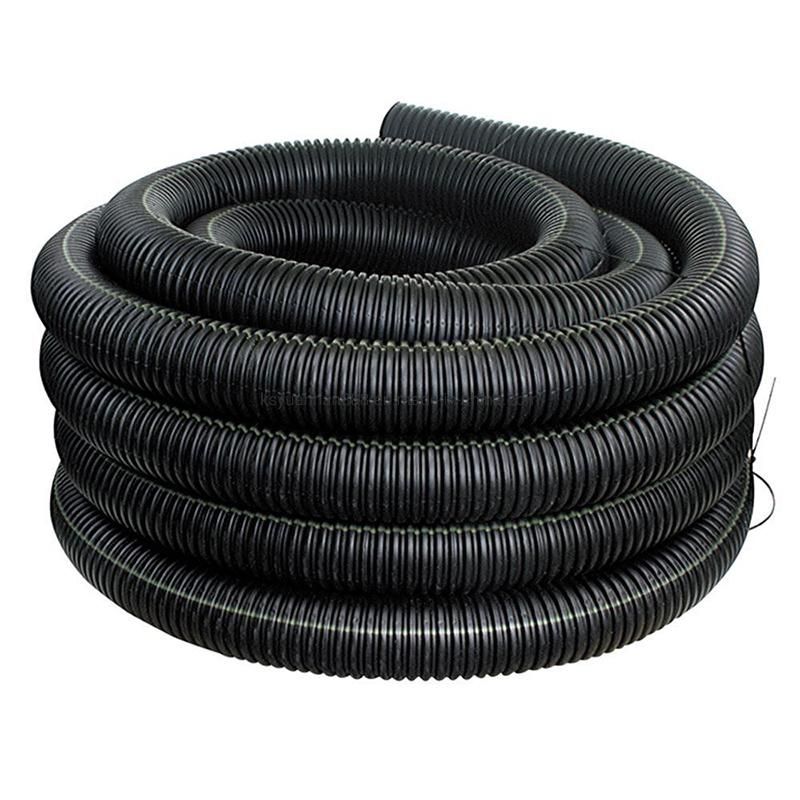

This all in one corrugated tube cutting machine is used to cut long length corrugated tubes with high cutting precision. It is the preferred corrugated tube cutting machine for high-end customers such as automobile wiring harness, new energy harness, aerospace, motor train, urban rail transit, high voltage cabinet, and more.

  • Digitalized operation - PCL touch screen control

  • Cut long length corrugated tubes with high cutting precision

  • This machine adopts belt traction and displacement sensor, actively responds to pre-placed pipes, and is actively transported with high accuracy

  • Integrated circuit, stable control, simple maintenance

  • It is the preferred corrugated tube cutting machine for high-end customers such as automobile wiring harness, new energy harness, aerospace, motor train, urban rail transit, high voltage cabinet, etc.

Specifications:
ModelYH-BW04
Cutting length10-9999mm
Cutting width4.5-32mm
Power1.50KW
Voltage/Frequency220/110(V)   50/60Hz
Weight100kg
Package size1450*700*1500mm
 Yh-Bw04 All in One Corrugated Tube Cutting Machine for Long Tube CuttingYh-Bw04 All in One Corrugated Tube Cutting Machine for Long Tube Cutting




Other Model

If you are not so sure of if it's ok, please contact us, we will recommend the correct model to you! Tested video of your sample is no problem too.



Packing & Shipping:

For small and light products packed by cartons,for large and heavy products packed by wooden
