• Model NO.：XJ-500
• Machine Name：High-Speed Back-Twist Pair Strander Machine
• Precision：High Precision
• Demoulding：Automatic
• Heating System：Electric
• Function：High Temperature Resistance
• Customized：Customized
• Transport Package：PE Film + Wooden Box
• Specification：CE SGS
• Trademark：NEWTOPP
• Origin：Dongguan City, Guangdong Province, China
• HS Code：8479400000
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. XJ-500 Machine Name High-Speed Back-Twist Pair Strander Machine Precision High Precision Demoulding Automatic Heating System Electric Function High Temperature Resistance Customized Customized Transport Package PE Film + Wooden Box Specification CE SGS Trademark NEWTOPP Origin Dongguan City, Guangdong Province, China HS Code 8479400000 Production Capacity 10 Sets/Month

Product Description

High-speed back-twist pair strander machine for Lan Cable
1.Application:
   Used for Cat5,Cat5e,Cat6,Cat7 and so on data cable back-twist and pair twisting.
2.Machine Features:
   Back-twist before pair twisting and reduce the wire damage during twisting progress; back-twist and pair twisting machine worked together.
3. Equipment composition:
    Φ500 Active Back-twist Pay-off Machine + Φ500 Pair Twisting Machine
4.Technical Parameters:

Model	XJ-500 Active Back-twist  Pay-off Machine
Max rotate speed	1000 RPM
Wire diameter	Φ0.4-1.5MM
Pay-off bobbin	Φ500MM
Tension range	1-20N
Pay-off speed	0-120M/MIN
Backtwist rate	0-50%
Driving motor	4KW
Pay-off motor	0.75KW
Lifting motor	0.75KW



Model	XJ-500 Pair Twisting Machine
Wire diameter	MaxΦ3.1mm
Pitch range	6-54.7mm
Rotate speed	Max 2500RPM
Line speed	Max 120M/min
Pay-off tension	Tension ontrolled by slider rod feedback
Take-up tension	Magnetic powder clutch, bobbin size auto-tracking.
Take-up lifting	Auto-lifting hydraulic pressure
Bobbin size	Φ500mm

Packaging & Shipping:
Our Services:
Pre-sale Services:
1) Spot investigation and professional guiding suggestions;
2) Equipment configuration, model selection reference and technical consultation;
3) Onestop service for investment equipment,product developing, new materials researching and personnel training.
Sale Services:
1) Invite customers to inspect and take trials of finished machines;
2) Provide the training of the maintenance knowledge;
3) Improve the design to the operator's requirements.
After-sale Services:
1) Regular maintenance and product tracking service;
2) Cost price for required parts in lifelong period;
3) Provide quality and efficient after-sale service life long time.

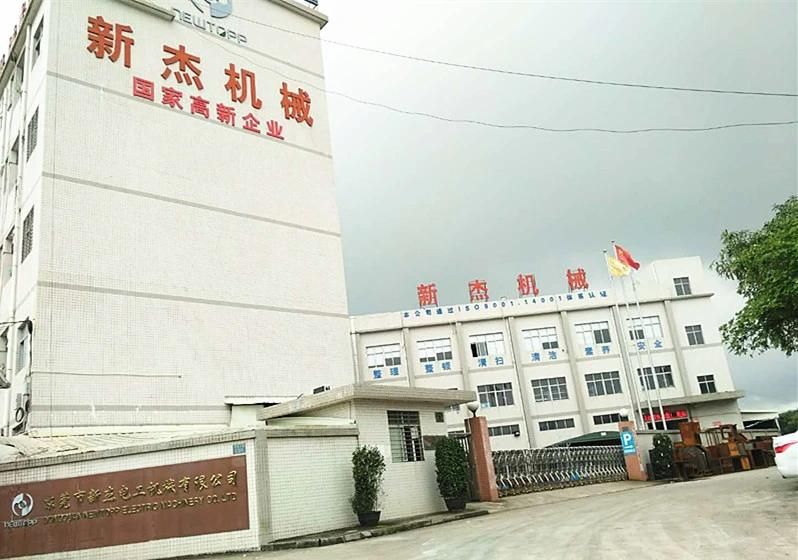

About Us:
Dongguan NewTopp Electrical Machinery Co.,Ltd is a high-tech enterprise which specializes in developing and manufacturing wire and cable machines, and our main products includes all kind of extrusion production line, single twisting machine, double twisting machine, cantilever stranding machine, cage-type twisting machine, planetary cabling machine, triple-core stranding with back-twist and taping, and single layer/double layer taping machine etc. and our products have passed CE certification and SGS audited, and we have passed ISO9001 since 2010.
 Our Team and Exhibitions:
FAQ
1) Are you a manufacturer or trading company?
   We are a manufacturer with more than 10 years manufacturing exprience in cable machinery, and there are total over 6000 spuare meters of production workshop in our factory.
2) What is the advantages of your machine compared with competitors?
    Our automatic control technology is in leading position in wire and cable equipment field.
    Good cost performance, quality is steady.
    We combine the equipment and the wire&cable technology, offer you technology assistance.
3) How can we get to your factory to see the machines works?
   Address: No.286 Huai'de road, ,Humen Town, Dongguan City,Guangdong Province,China.
   Only 40 minutes by car from Shenzhen Baoan International airport to our factory;
   Only 1.5 hours by car from Guangzhou Baiyun Airport to our factory;
   Only 17 minutes take high-speed rail from Guangzhou south station to Humen.
