Waterproof Cable Seal Plug Loading Inserting Crimping Machine

Kunshan Yuanhan Electronic Equipment Co., Ltd.

After-sales Service：All Life
Certification：RoHS, ISO, CE
Warranty：12 Months
Automatic Grade：Automatic
Model：Yh-300fs
Size of Seals：Max: 9X10mm (Outer Diameter X Length)

Base Info

Model NO.：YH-300FS
The Inner Diameter of Seals：0.6-3.0mm
Max. Insertion Length：10mm
The Length of The Inner Sheath of The Mu：Over 38mm
Working Efficiency：50 Times,Min (Not Counting Manual Speed)
Accuracy：±0. 3mm
Power Supply：200V 50Hz, <150W
Transport Package：Wooden Case Package
Specification：22*25*60cm
Trademark：yuanhan
Origin：China
HS Code：8479819000
Production Capacity：50

Description

ModelYH-300FSSize of seals

MAX: 9x10mm (outer diameter x length)

The inner diameter of seals0.6-3.0mmMax. insertion length10mmThe outer diameter of the wire1-3.5mmThe length of the inner sheath of the multi-core wire> 38mmWorking efficiency50 times/min (not counting manual speed)Accuracy±0. 3mmPower supply200V 50HZ, <150W

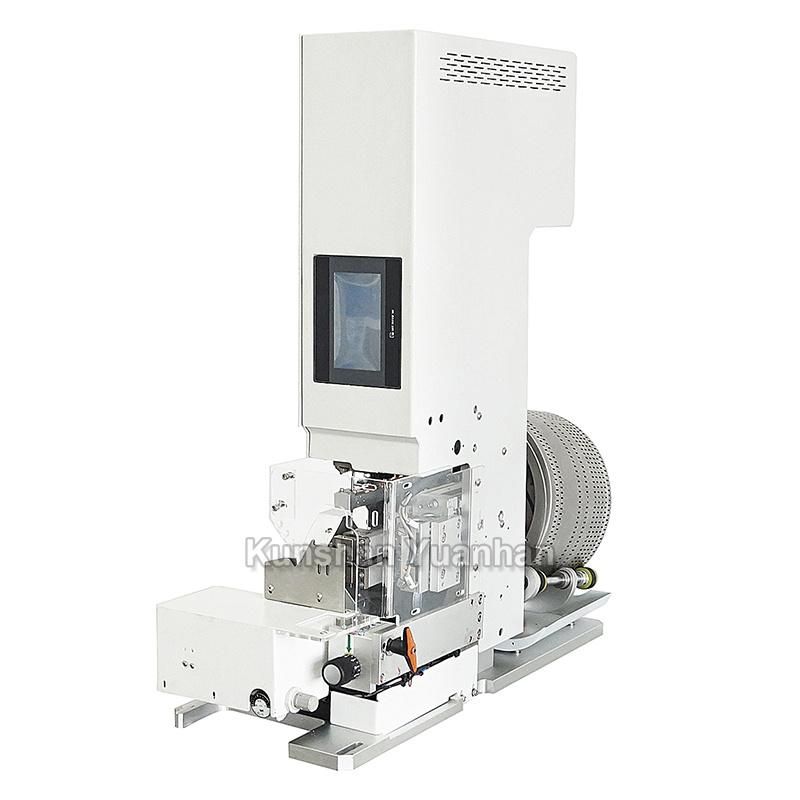

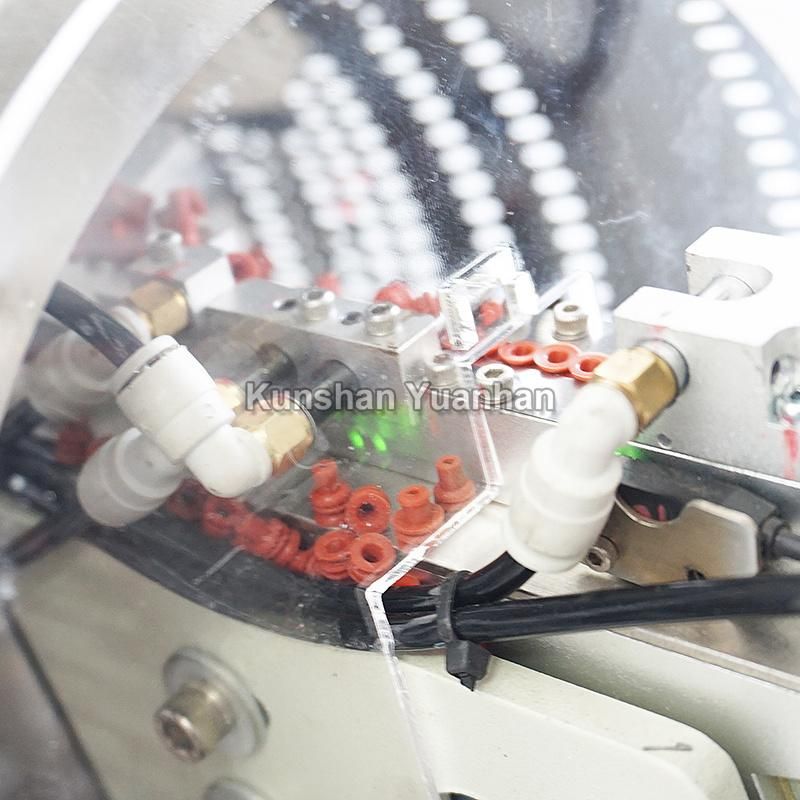

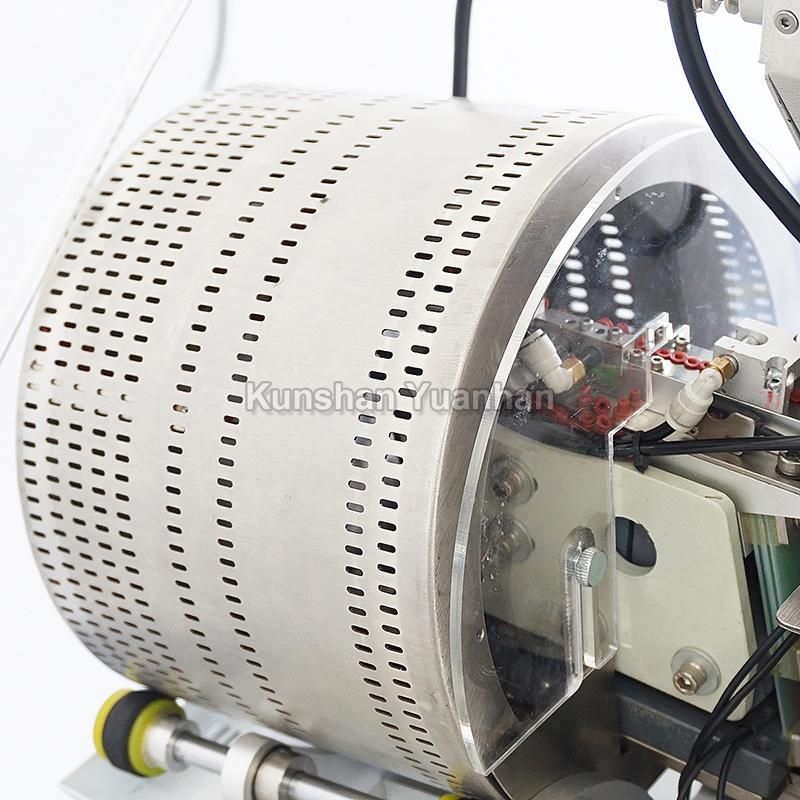

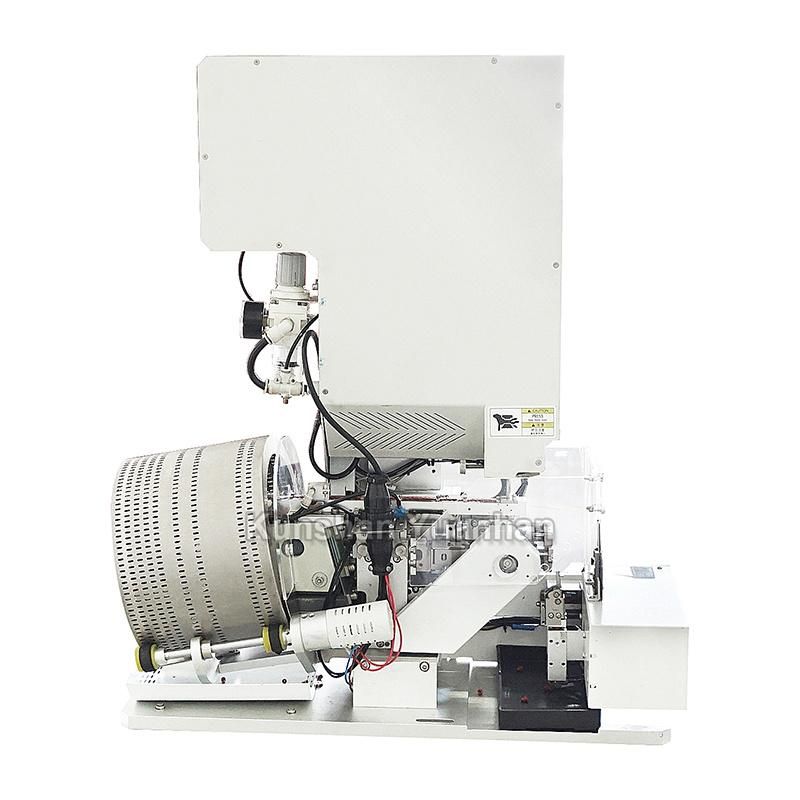

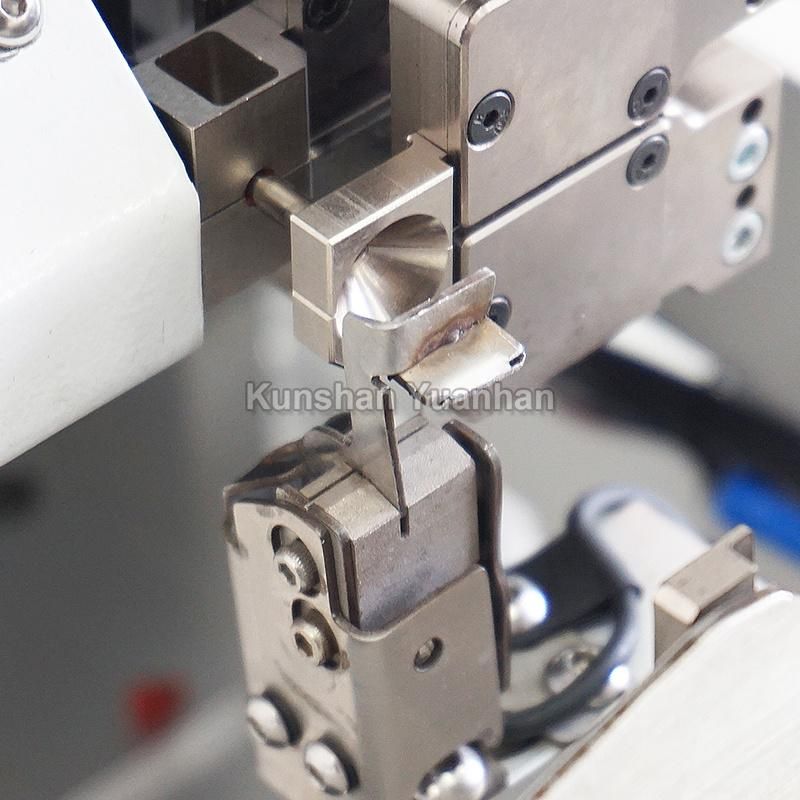

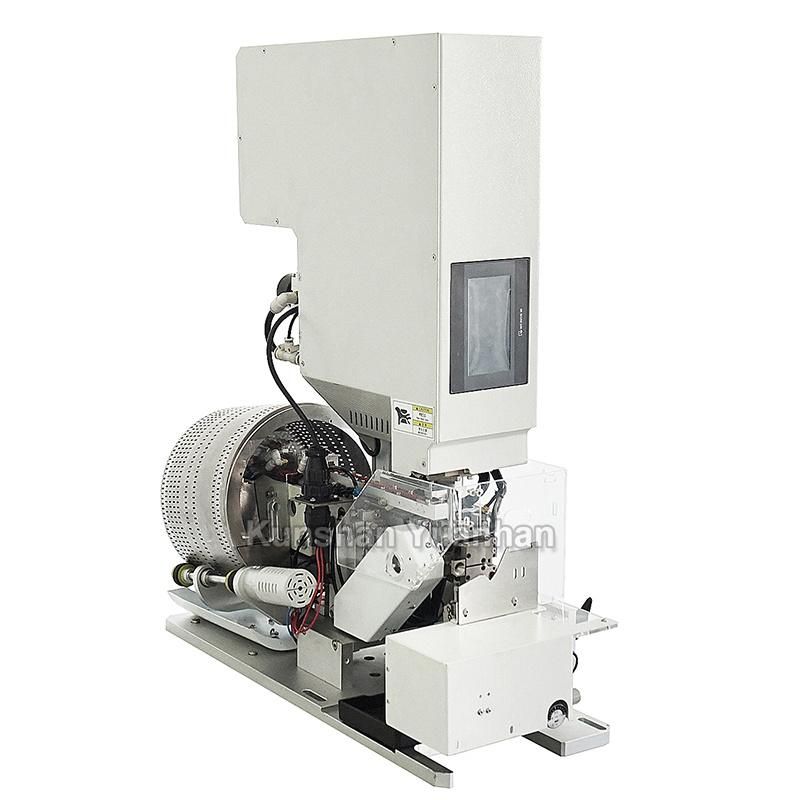

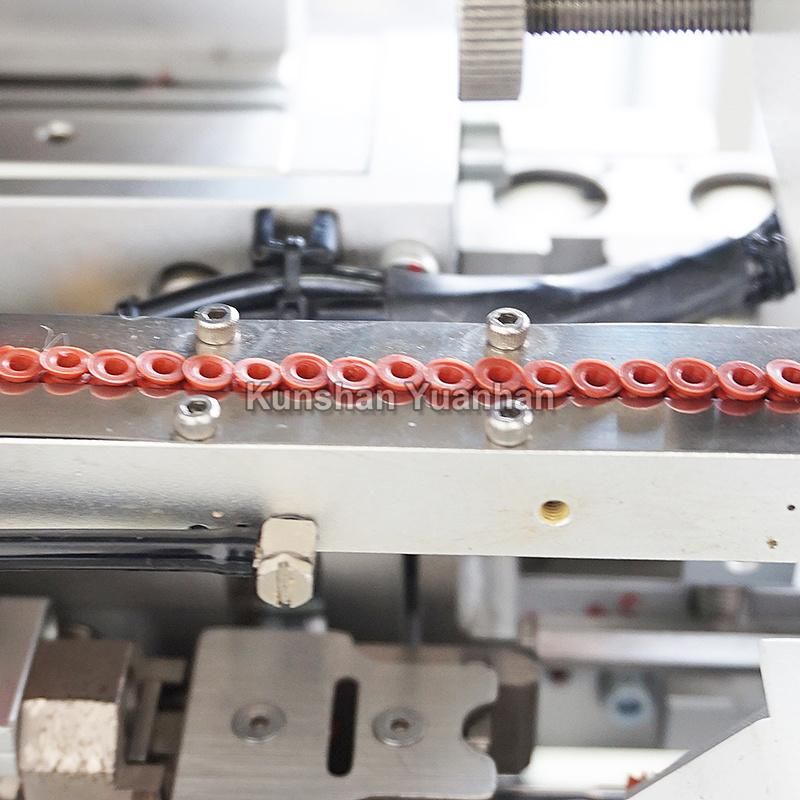

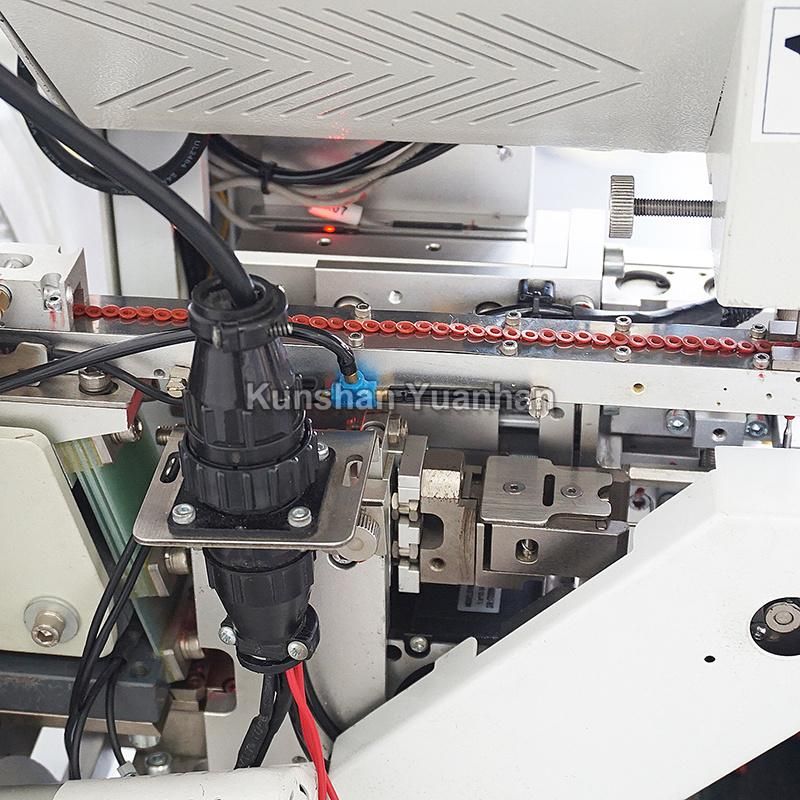

MACHINE SHOWS
Waterproof Cable Seal Plug Loading Inserting Crimping Machine

Waterproof Cable Seal Plug Loading Inserting Crimping Machine

Waterproof Cable Seal Plug Loading Inserting Crimping Machine

Waterproof Cable Seal Plug Loading Inserting Crimping Machine

COMPANY SHOWS
ANY QUESTIONS PLEASE CONTACT MS Angela Zhou
