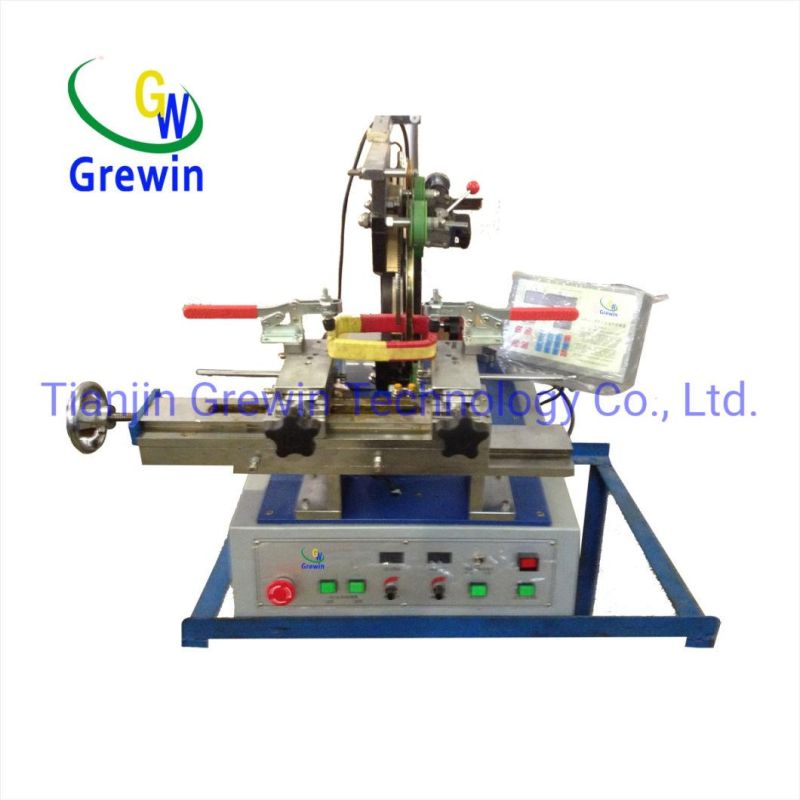

0.3-1.2mm Slider Type CNC Micro Toroid Smaller Coil Winding Machine

Tianjin Grewin Technology Co., Ltd.
  • Warranty：1 Year
  • Wire Diameter：0.3-1.2

Base Info

  • Model NO.：GW-9020S coil winding machine
  • Max.Final Coil.O.D：40-200
  • Min.Final Coil.I.D：12
  • Spread Motor：Stepping Motor
  • Controller Storage Capacity Programs：999 Sets
  • Max.Winding Speed：1200rpm
  • Winding Motor：1,2HP DC Motor
  • Supply Voltage：AC 220V(50Hz)
  • Mechanical Dimensions：77*69*64
  • Weight：80kg
  • Automatic：Automatic
  • Certification：RoHS, CE, ISO
  • Transport Package：Export Standard Carton or Customize Strong Pallet
  • Specification：CE
  • Trademark：Grewin
  • Origin：China
  • HS Code：8479811000
  • Production Capacity：100PCS

Description

According to the machine head and shuttle size

FEATURES:
Digital Stepping Motor Coil Winding Machine has Hi-tech shuttle for highest efficiency.
Digital Stepping Motor Coil Winding Machine has separate speed controls for loading and winding.
Digital Stepping Motor Coil Winding Machine has accurately count length of loading by limited-switch.
Accurately count turns of winding by photo-electricity sensor
Programmable winding direction, winding returns range (Turns or Angle) and segment winding angle
Accurately wire spacing by programmable controller
Memory capacity accommodates 999 sequences of parameters with off-power memory retention for more than one year.
Automatic wire clamp and cut system, layer winding, material unloading and cleaning of the tool during each cycle.
Optional release agent dispensing to aid removal of the coil from the tooling.
Fine programmable pitch control enabling precise layer winding.
Related Winding Machines:

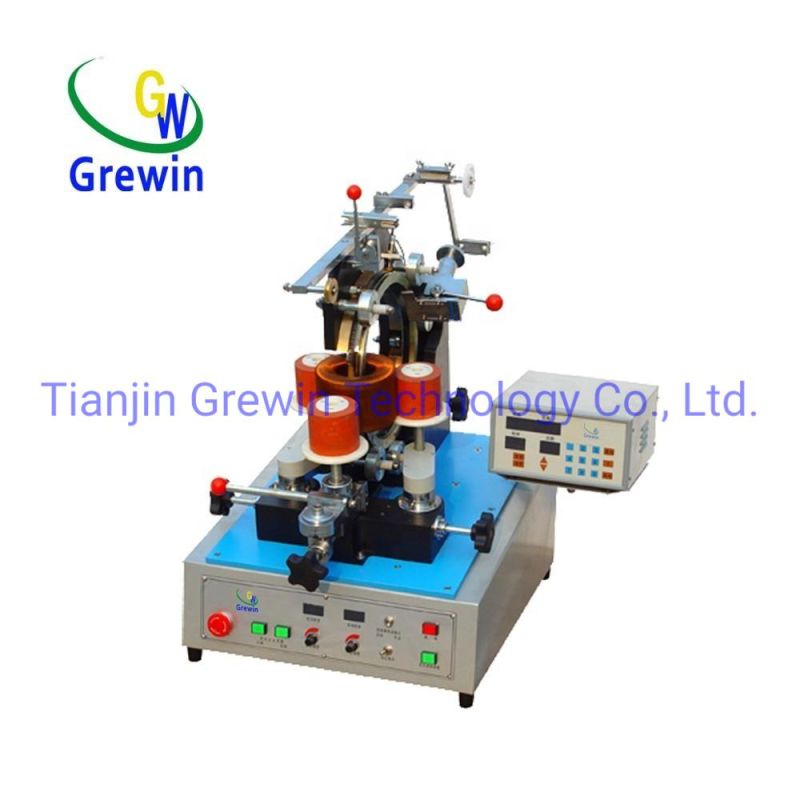

1.GWM-0119 Gear type toroidal coil winding machine

0.3-1.2mm Slider Type CNC Micro Toroid Smaller Coil Winding Machine
 Wire diameter0.70-2.50Max.winding speed200rpmMax.final coil.O.Dφ60-200Wire spacingProportional linkageMin.final coil.I.Dφ40Supply voltageAC 220V(50Hz)Max.finalcoil height100Mechanical  dimensions550*500*780Controller storage
capacity Programs29 (set)Weight94kgGWM-0119(winding machine/Mag.OD.400)
(unit): mm

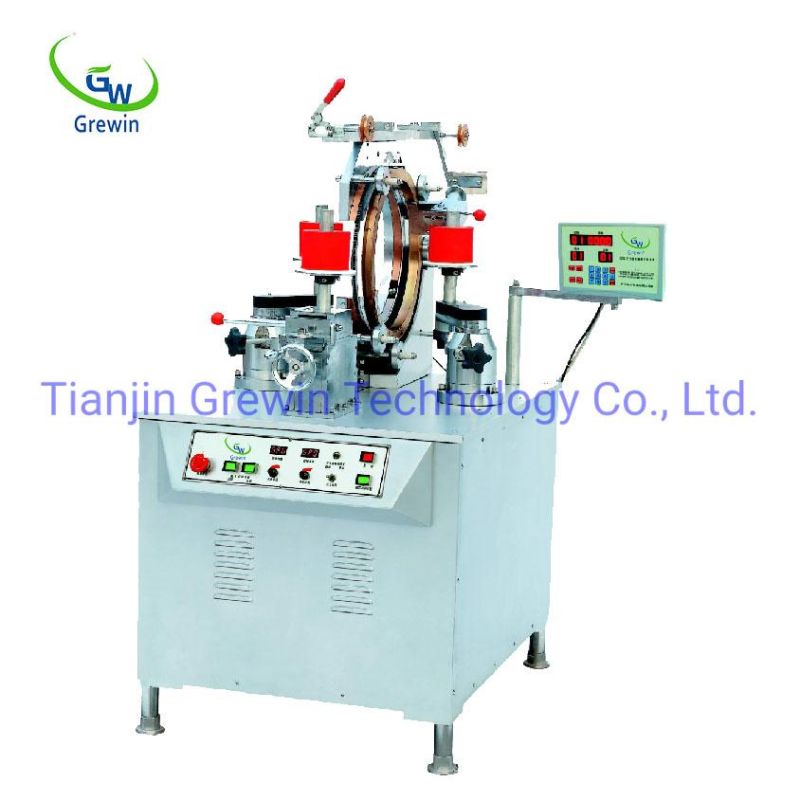

2.GWM-0719 Floor type toroidal coil winding machine

0.3-1.2mm Slider Type CNC Micro Toroid Smaller Coil Winding Machine
 Wire diameter1.0-4.50Max.winding speed150rpmMax.final coil.O.Dφ250-800Wire spacingProportional linkageMin.final coil.I.Dφ80Supply voltageAC 220V(50Hz)Max.finalcoil height250Mechanical  dimensions1050x900x1530mmController storage
capacity Programs29 (set)Weight383kgGWM-0719 (winding machine/Mag.OD.400)
(unit): mm

3.GW0950 Mobile rectangular coil winding machine0.3-1.2mm Slider Type CNC Micro Toroid Smaller Coil Winding MachineWire diameter0.70-2.00Max.winding speed200rpmMax.final coil.O.Dφ65-500,55Wire spacingProportional linkageMin.final coil.I.Dφ50-430,45Supply voltageAC 220V(50Hz)Max.finalcoil height80Mechanical  dimensions1000*950*780Controller storage
capacity Programs29 (set)Weight110kgGW0950(winding machine/Mag.OD.400)
(unit): mm

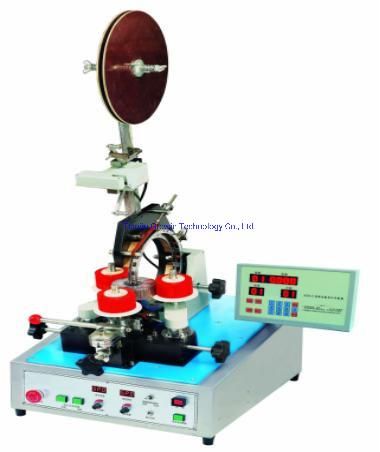

4.GWTM-0218  Gear type automatic wrapping insulating tape machine

0.3-1.2mm Slider Type CNC Micro Toroid Smaller Coil Winding Machine

 Tape width12(8,10,15)Max.taping speed250rpmMax.final coil.O.Dφ50-200Tape spacingProportional linkageMin.final coil.I.Dφ35Supply voltageAC 220V(50Hz)Max.finalcoil height80Mechanical  dimensions550×500×1100Controller storage
capacity Programs29 (set)Weight100kgGWTM-0218 (taping machine/Mag.OD.400)
(unit): mm
Of course we have other models, please contact us if you need.

How to select the best suited automatic toroid taping machine for your toroid coil?
Tell us your toroidal coil of data as below please:
1.toroid core outside diameter before winding?
2.toroid core inside diameter before winding?
3.toroid core height before winding?
4.how many windings on this core?
5.how many tape windings total on this toroidal coil?
6.how about the tape width of each tape winding?
7.how many turns of each tape winding?
8.provide pictures of product which is better.

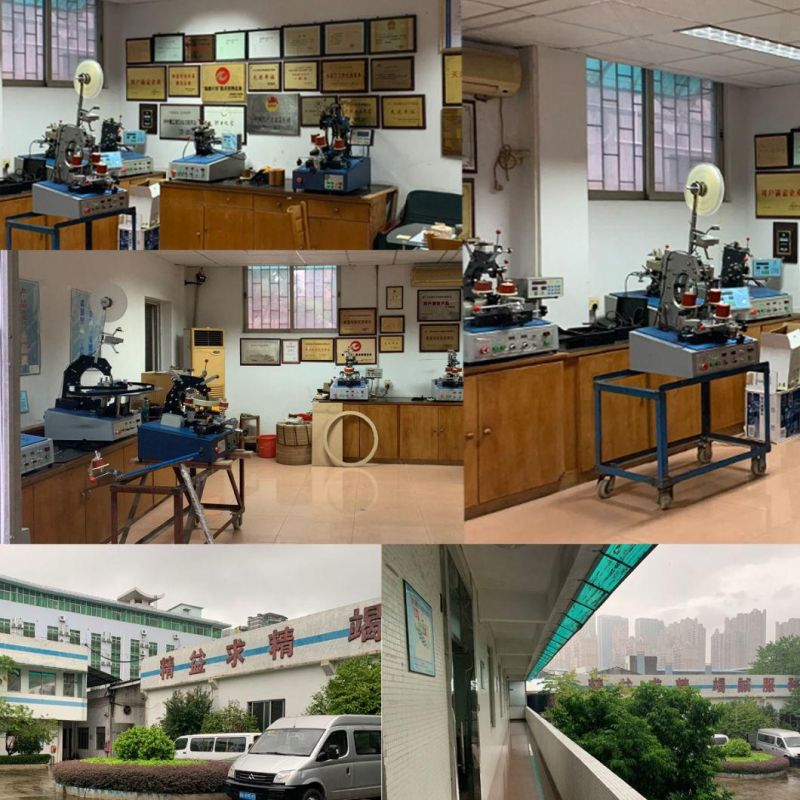

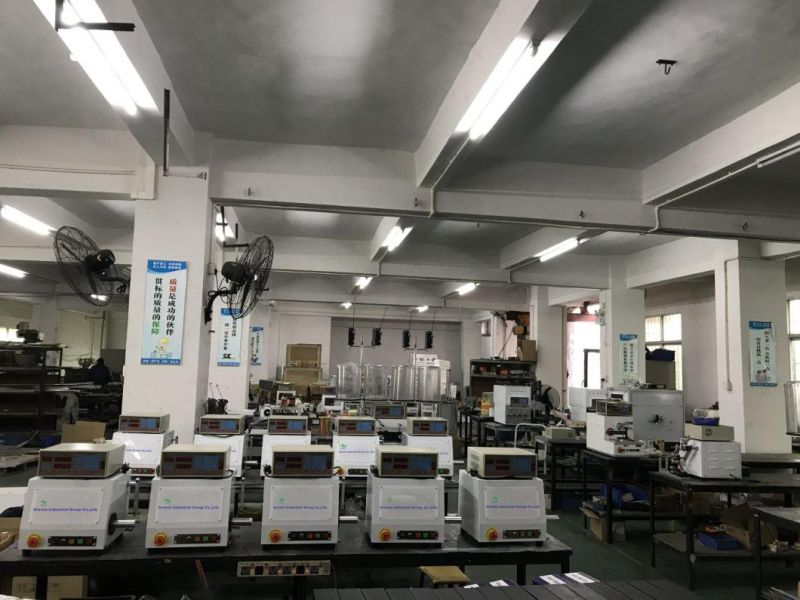

Company Information and Profile
