• Model NO.：T-937M
• Rated Power：3300W
• Drawer Area：350mmx400mm
• Soldering Size：Lead Paste: 300*310mm Leadfree Paste:260*260mm
• Cycle Time：2~16min
• N. Weight：20.7kg
• Temperature Range：Room Temp-350
• Voltage/Frequency：AC220~230V,50~60Hz
• Overall Dimension：473mmx466mmx290mm
• Mode of Controling：8 Intelligent Temperature Waves Heating
• Precision：High Precision
• Demoulding：Automatic
• Function：High Temperature Resistance
• Mould Life：>1,000,000 Shots
• Heating System：IR and Hot Air
• Transport Package：Carton Size: 47cmx46cmx29cm, Gross Weight: 20.7kg
• Specification：AC110V220,50~60Hz
• Trademark：Puhui
• Origin：Tai′an City, Shandong Province, China
• HS Code：85151100
• Production Capacity：800 PCS,Month

Basic Info.

Model NO. T-937M Rated Power 3300W Drawer Area 350mmx400mm Soldering Size Lead Paste: 300*310mm Leadfree Paste:260*260mm Cycle Time 2~16min N. Weight 20.7kg Temperature Range Room Temp-350 Voltage/Frequency AC220~230V/50~60Hz Overall Dimension 473mmx466mmx290mm Mode of Controling 8 Intelligent Temperature Waves Heating Precision High Precision Demoulding Automatic Function High Temperature Resistance Mould Life >1,000,000 Shots Heating System IR and Hot Air Transport Package Carton Size: 47cmx46cmx29cm, Gross Weight: 20.7kg Specification AC110V220/50~60Hz Trademark Puhui Origin Tai′an City, Shandong Province, China HS Code 85151100 Production Capacity 800 PCS/Month

Product Description

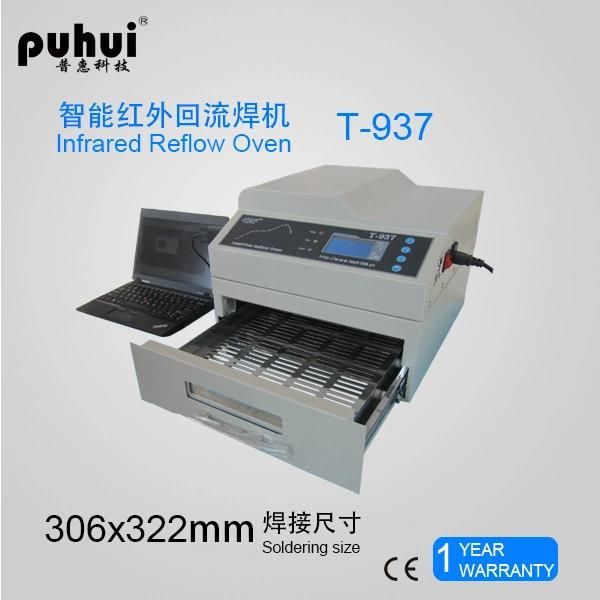

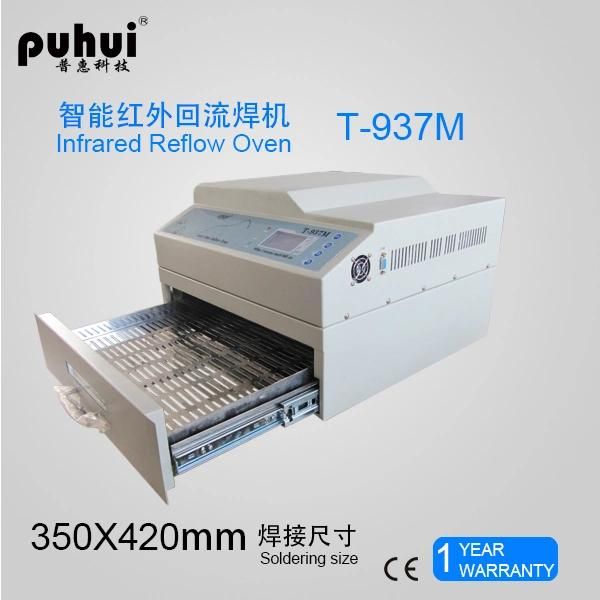

Desktop Reflow Oven T937, LED SMT Reflow Oven Puhui T-937M

Model: T-937&T-937M


Product Description

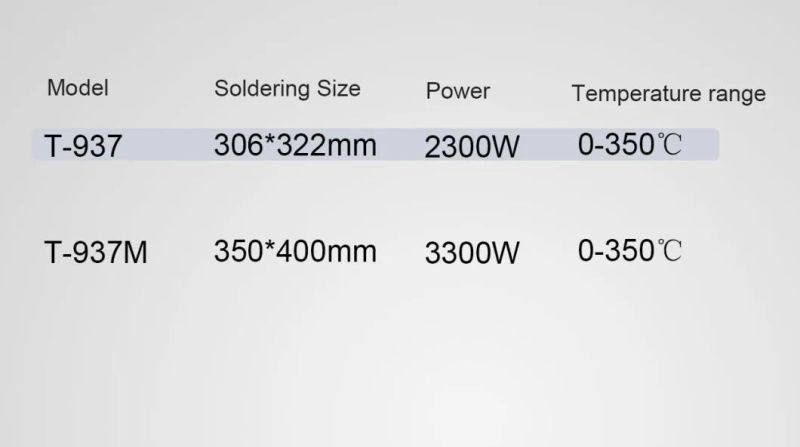

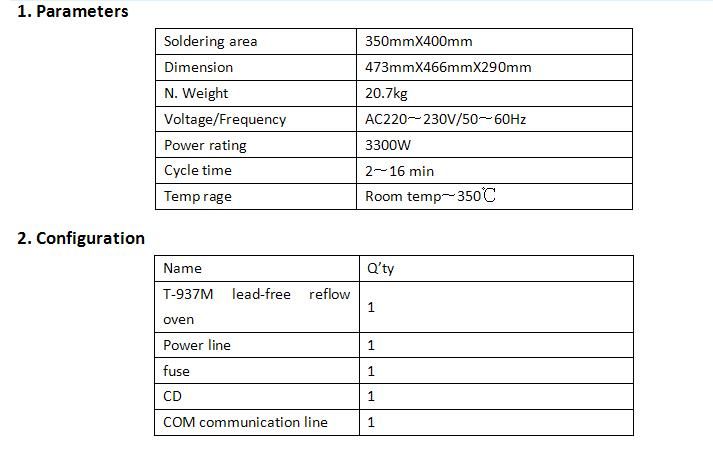

Technical Parameters

Soldering area	350mmX400mm
Dimension	473mmX466mmX290mm
N. Weight	20.7kg
Voltage/Frequency	AC110V/220V/50~60Hz
Power rating	3300W
Cycle time	2~16 min
Temp rage	Room temp~350ºC

Features

a. This oven solder leadfree paste very well.

b. This oven can connect with PC, easy to input/set/transmit/adjust/save/manage wave data.

c. Many kinds wave input style in control software, easy to set wave.

d. The control software is with graphical display, display the wave intuitively.

e. The control software is with wave printing function, easy to save/manage/analysis the wave data.

f. The control software is with 299 kinds of paste data inside.

g. Adopt stable and highspeed MCU and advanced intelligent temperature measurement technology, temperature in the oven is very stable,exact and even.

h. Add the compensation circuit, make the oven temperature keep stable from different environment.

i. This oven is with hot air fan inside, to make the temperature inside more even.

j. The temperature is room temp to 350C, suit for single/double side PCB board and lead/leadfree paste soldering.

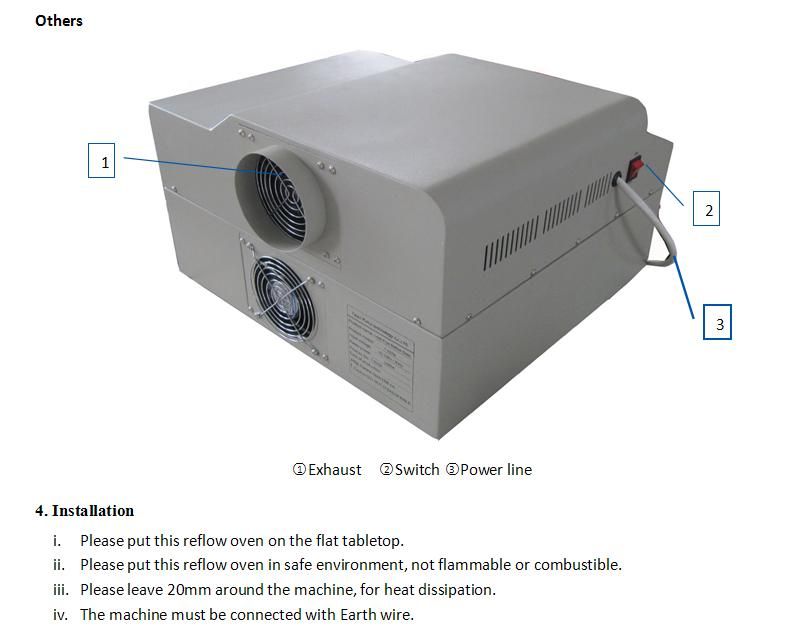

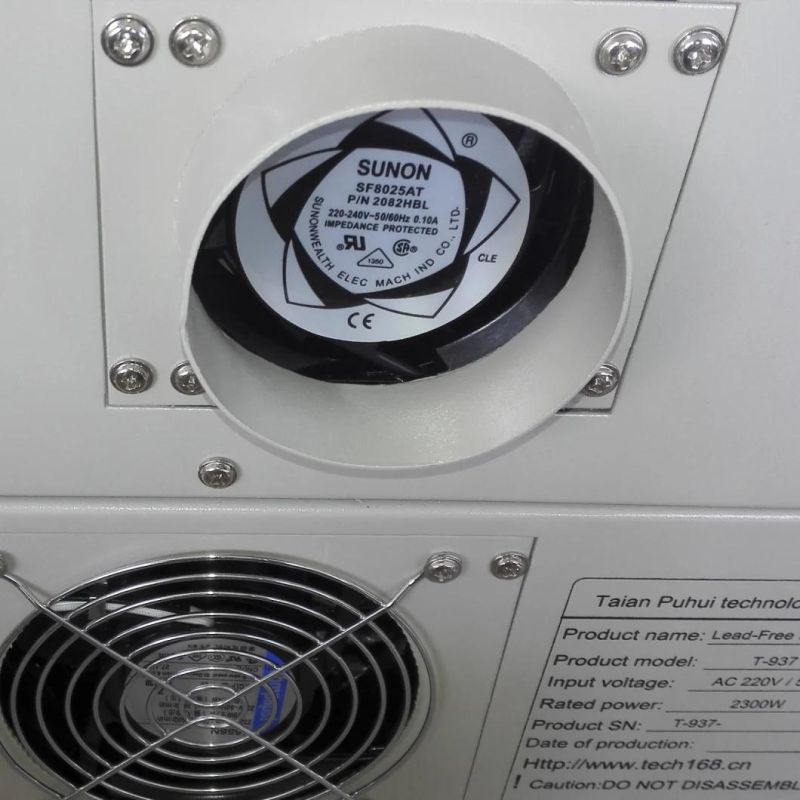

k. Add special exhaust on the back, provide good operation environment.

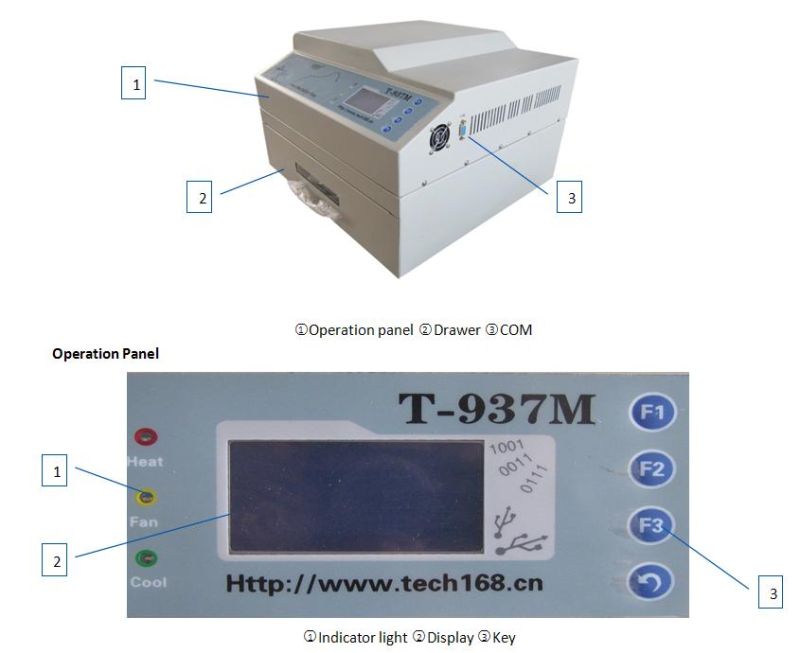

l. Friendly human-machine operation interface, perfect LCD display, very easy to operate.

m. Good database management function.

n. Thermostatic timer function.







==================== Other Notice ====================

Payment:

* We accept ESCROW and alipay here.

* We also accept T/T, Western Union, MoneyGram, etc

Shipping:

·         We do not ship this product by Singapore /HK/ China Post Air Mail. Because it is hard to track and takes more time. Especially, it is not so fafe.

·         We will use FedEx/DHL/UPS/TNT/EMS for fast and safe shipping. We will use the most convenient one when you buy the product.

·         Before shipping, we will pack every product well for you. And please check the outside package when you receive the parcel well

·         If you have special requirement for shipping, please let us know in advance.



Warranty :

·         We provide 12 months Warranty for our products!

·         If you are not satisfied with our products when you receive them, please return it within 10 days for a replacement or money back. Please contact me before you return it.

·         If item is defective in 1 months for product reason, we will send you a replaced spare part without extra charger, or offer refund after we receive the defective item.

·         If item is defective after 1 months, you can still send it back to us. We will fix it for you free of charge and send it back to you, but you should bear the shipping cost..

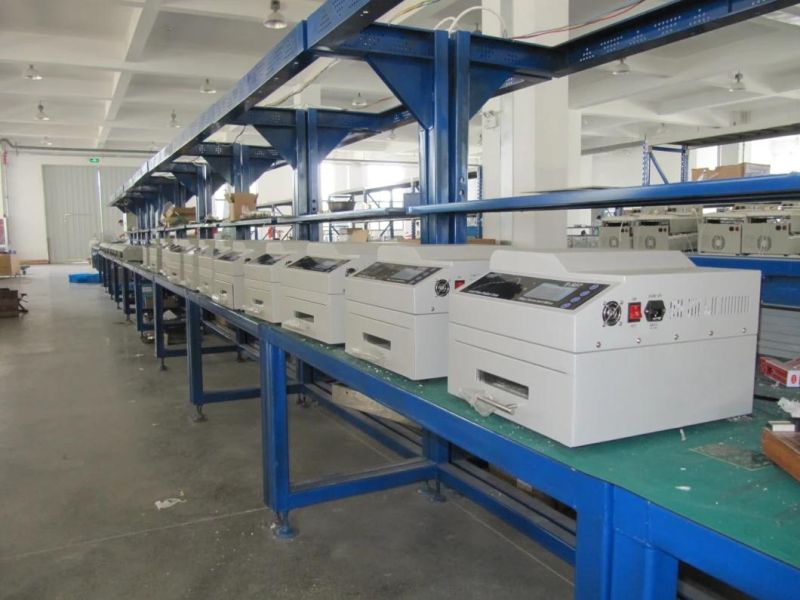

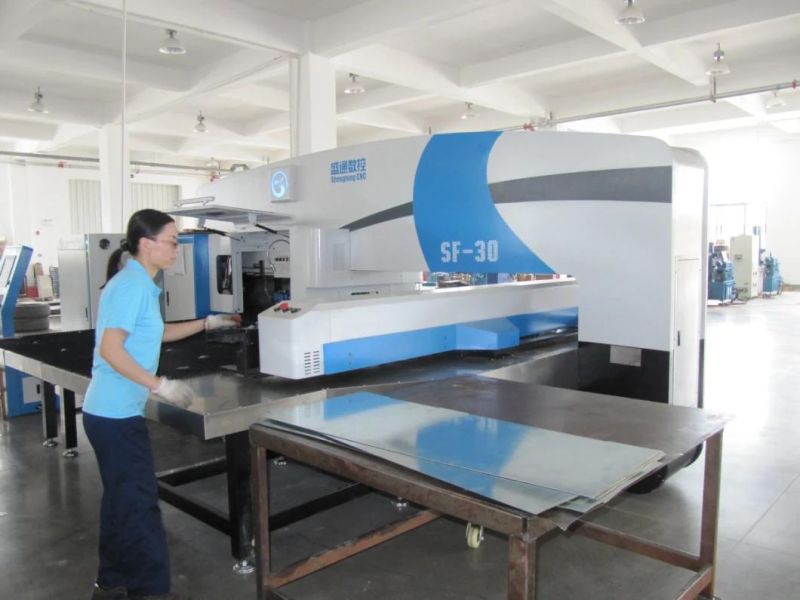

 Company Information Tai'an Puhui  Electric Technology CO., LTD. Established in 2007,our company is a professional manufacturer engaged in the research, development, production, sale and service of BGA Rewok Station, Infrared Reflow Oven, Microcomputer Electronic heating plate, LED Light Welding Machine. We are located in the chest at the foot of Mount Tai, Qingdao, according to Hong Kong for less than 300 kilometers.  Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has applied for 16  patents. In addition, we have attained CE certificates.
