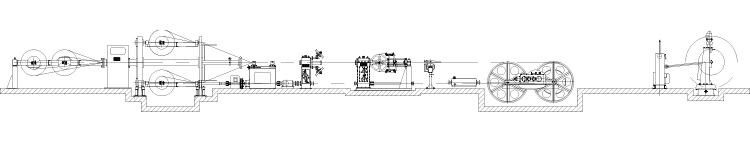

Automatic 1250/1+1+3 Copper Cable Manufacturing Machine

Guangdong Chipeng Electrical Technology Co., Ltd.
  • Condition：New
  • Warranty：12 Months
  • Automatic Grade：Automatic
  • Single Strand Diameter：6.0~45.0mm
  • Maximum Stranding Diameter：100mm
  • Cage Speed：4.3~9.6r,Min

Base Info

  • Model NO.：CLY
  • Stranding Pitch：447~7604mm
  • Traction Speed：4.3~32.7m,Min
  • Speed Changer：36 Stages
  • Pay-off Bobbin：Pn1600
  • Take-up Bobbin：Pn1250~Pn2500
  • Central Height：1000mm
  • Transport Package：Standard International Shipment Packing
  • Trademark：CP
  • Origin：Foshan
  • HS Code：8479400000
  • Production Capacity：3 Sets,Month for Cable Machine

Description

No.Parameter nameUnitCLY630 TypeCLY1000 TypeCLY1250 TypeCLY1400 TypeCLY1600 Type1Wire-core cross section areamm22.5-1610-12016-18525-24050-4002Max cabling diametermm405060801003Cage speedr/min24.6-56.5
(6 stage)11.1-25.1
(6 stage)9.5-21.5
(6 stage)6.8-15.5
(6 stage)4.3-9.6
(6 stage)4Cabling pitchmm90-288990-2889180-3095278-4766448-76055Cable speedm/min2.4-33.1
(16 stage)2.2-32.7
(32 stage)3.87-29.4
(36 stage)4.3-32.7
(36 stage)4.3-32.7
(36 stage)6Pay-off bobbinmmPN630PN1000PN1250PN1400PN16007Take-up bobbinmmPN100-PN1600PN100-PN2000PN100-PN2000PN125-PN2500PN140-PN28008Armoring head speedr/min191-781
(9 stage)108-444
(9 stage)108-444
(9 stage)108-444
(9 stage)108-444
(9 stage)9Armoring pitchmm3-1735-3028-2729-3029-30210Taping head speedr/min139-568
(9 stage)81-323
(9 stage)81-323
(9 stage)81-323
(9 stage)81-323
(9 stage)11Taping pitchmm4-2386-40312-36213-40313-40312Central heightmm10001000100010001000 Automatic 1250/1+1+3 Copper Cable Manufacturing Machine
