• Model NO.：KDEQ-01-146
• Trademark：Kiande
• Origin：China
• HS Code：847981900
• Production Capacity：6 Sets Two Months

Basic Info.

Model NO. KDEQ-01-146 Trademark Kiande Origin China HS Code 847981900 Production Capacity 6 Sets Two Months

Product Description

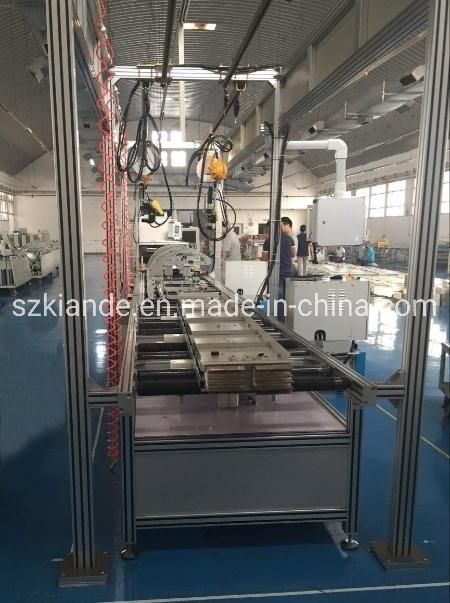

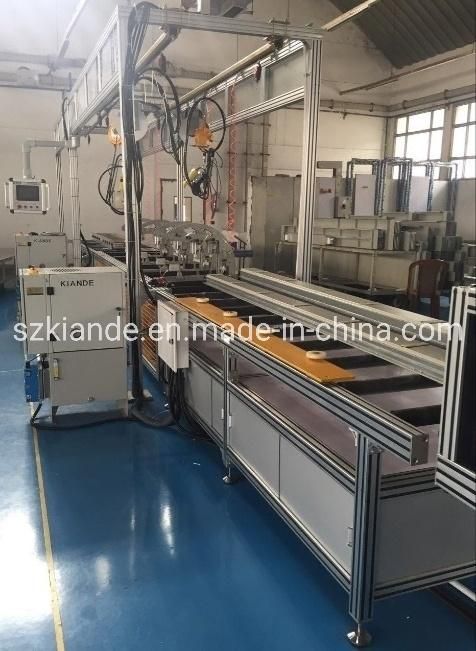

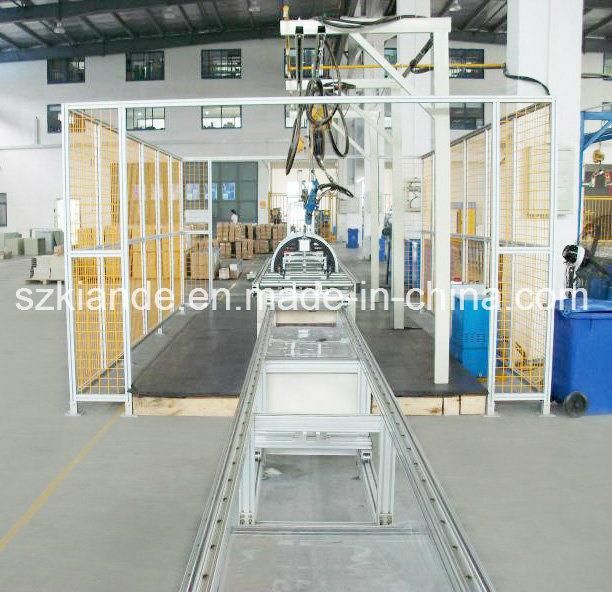

Busbar semi-automatic reversal assembly line, busduct production equipment, busway production line, busbar manufacturing line

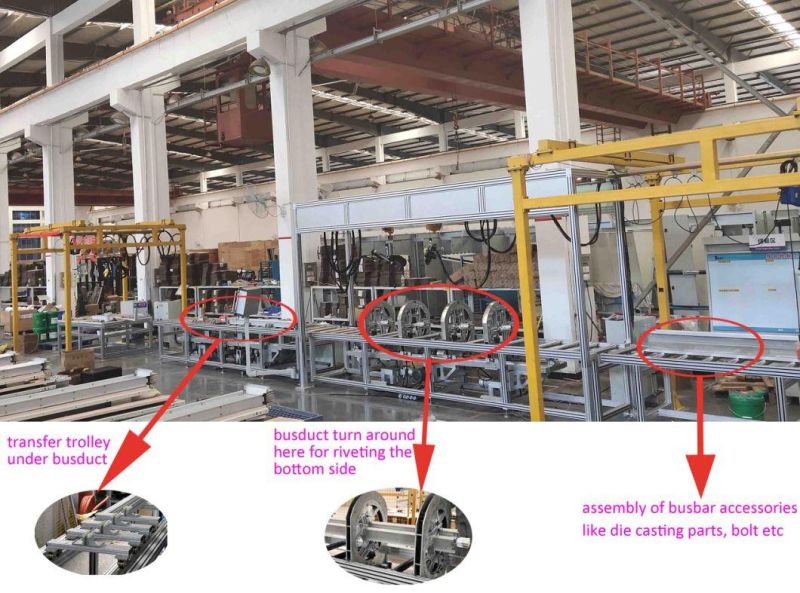

Semi-automatic assembly line is composed of three parts, pre-assembly station, automatic reversal station and accessory assembly station.
Pre-assembly station: Operators will pre-assemble and fix busbar main parts by the fixtures and transfer the busbar to the automatic reversal station manually.
Automatic reversal station: When busbar arrives in the reversal station, operator shall fix the busbar by clamp and start riveting on one side. After one side is done, rotators will be reversed 180 degrees for other side's riveting.
Accessory assembly station: After busbar is riveted, operator will assemble the busbar accessories at this station.


Advantages:
1. The semi-automatic busbar production line can realize automatic clamping from left to right and down to up which is convenient for drilling and riveting.
2. The production line is flexibly compatible,suitable for busbar with width 74.5mm-350mm.
3. The electrical control system can clamp at the same time or separately.
4. The semi-automatic busbar assembly line is a cost-effictive production line and more stable which can decrease the NG rate and labour cost and increase the working efficiency.
5. The clamping is powered by air compressor 5-8MPA, which only comsumes the air when operation and is more environment-friendly comparing with the electrical comsumption of oil pressure.

Specification:

Busbar structure	Four-piece	Remark
Busbar height	H=113~650mm
Busbar length	1.2~6m
Connection structure	Riveting without hole
Nos Of riveting machine	More than 1 set
Housing dimension	L15~20m*3m
Control mode	Manual riveting, automatic reversal
Nos of swing-table	2~6 pieces
Nos of up-down clamping fixtures	3~4 pieces
Voltage	380/400V AC 50/60Hz
Power	5kW
Air source	0.6MPa
