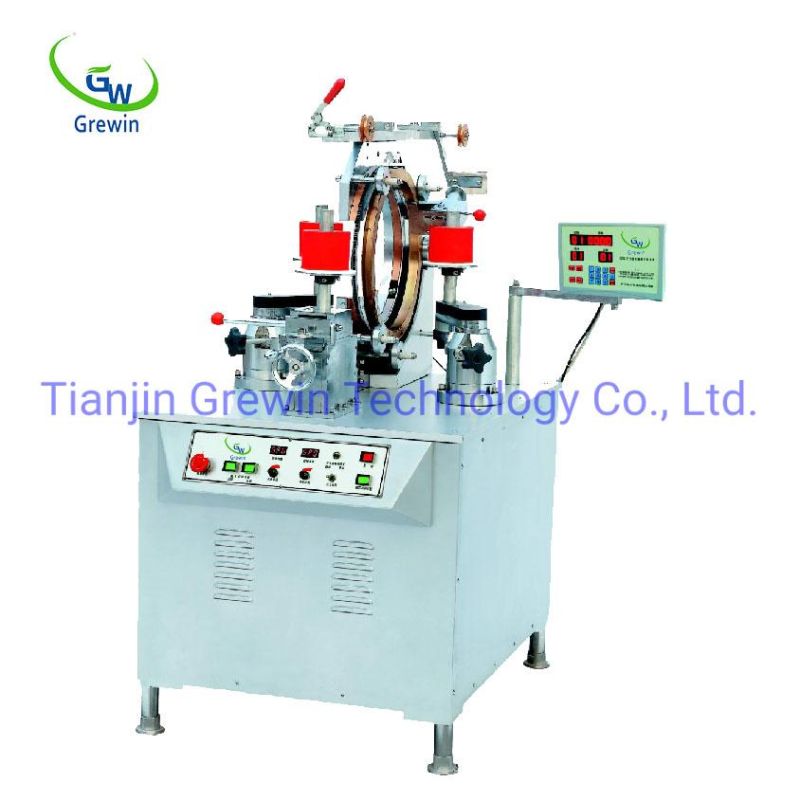

High Quality New Computer Automatic Coil Winder Winding

Tianjin Grewin Technology Co., Ltd.
  • Warranty：1 Year
  • Wire Diameter：0.04-1.20mm

Base Info

  • Model NO.：GWL-1972
  • Spread Range：0-280
  • Maximum Screw Diameter：1-260
  • Power Voltage：Single Phase AC 220V 50,60Hz
  • Cop Motor：Three Phase Machine 400W(1,2HP)
  • Spindle Speed：3000rpm
  • Winding Motor：Brushless DC
  • Storable Winding Groups：999 Groups
  • Mechanical Dimensions：800*400*470mm
  • Weight：45kg
  • Counting Resolution：0.1 Circle
  • Certification：RoHS, CE, ISO
  • Key Word：Coil Winding Machine
  • Coil Type：Toroidal Coil
  • Wire Copy：Copper Wire
  • Transport Package：Export Standard Carton or Customize Strong Pallet
  • Specification：CE
  • Trademark：Grewin
  • Origin：China
  • HS Code：85043190
  • Production Capacity：100PCS
  • Package size per unit product：80.00cm * 40.00cm * 47.00cm
  • Gross weight per unit product：80.000kg

Description

 AC 220V/110V(50/60MHz)the winding motor1/2HP DC motorAccording to the machine head and shuttle size
High Quality New Computer Automatic Coil Winder Winding




Related Products


1.GWM-0119 Gear type toroidal coil winding machine

High Quality New Computer Automatic Coil Winder Winding
 Wire diameter0.70-2.50Max.winding speed200rpmMax.final coil.O.Dφ60-200Wire spacingProportional linkageMin.final coil.I.Dφ40Supply voltageAC 220V(50Hz)Max.finalcoil height100Mechanical  dimensions550*500*780Controller storage
capacity Programs29 (set)Weight94kgGWM-0119(winding machine/Mag.OD.400)
(unit): mm


2.GWM-0719 Floor type toroidal coil winding machine

High Quality New Computer Automatic Coil Winder Winding
 Wire diameter1.0-4.50Max.winding speed150rpmMax.final coil.O.Dφ250-800Wire spacingProportional linkageMin.final coil.I.Dφ80Supply voltageAC 220V(50Hz)Max.finalcoil height250Mechanical  dimensions1050x900x1530mmController storage
capacity Programs29 (set)Weight383kgGWM-0719 (winding machine/Mag.OD.400)
(unit): mm

3.GWTM-0218  Gear type automatic wrapping insulating tape machine

High Quality New Computer Automatic Coil Winder Winding

 Tape width12(8,10,15)Max.taping speed250rpmMax.final coil.O.Dφ50-200Tape spacingProportional linkageMin.final coil.I.Dφ35Supply voltageAC 220V(50Hz)Max.finalcoil height80Mechanical  dimensions550×500×1100Controller storage
capacity Programs29 (set)Weight100kgGWTM-0218 (taping machine/Mag.OD.400)
(unit): mm
Of course we have other models, please contact us if you need.

How to select the best suited automatic toroid taping machine for your toroid coil?
Tell us your toroidal coil of data as below please:
1.toroid core outside diameter before winding?
2.toroid core inside diameter before winding?
3.toroid core height before winding?
4.how many windings on this core?
5.how many tape windings total on this toroidal coil?
6.how about the tape width of each tape winding?
7.how many turns of each tape winding?
8.provide pictures of product which is better.
