• Model NO.：XJ-300,400,500,630MM
• Type：Single Stranding Machine
• Wire Specification：2-20mm
• Extrusion Material：PVC,PE
• Power：50HP
• Highest Output：180kg,H
• Highest Wire Speed：300m,Min
• Capstan Power：7.5HP
• Pay off Type：as Requirement
• Take up Type：as Requirement
• Temperature Control：5+3 Segments (Body+ Head)
• Usage：Power Wire,Computer Wire etc Insulation Extrusion
• Precision：High Precision
• Demoulding：Automatic
• Heating System：Electric
• Function：High Temperature Resistance
• Customized：Customized
• Transport Package：Wooden Box,Pallet
• Specification：cable machine
• Trademark：Newtopp
• Origin：Chinese Mainland
• HS Code：8479400000
• Production Capacity：60 Sets,Month

Equipment modelsXJ-300XJ-500XJ-630XJ-800Twisting usageit is applied to the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires,double twisting for core wires.Single wire dia(mm)φ0.08~φ0.28φ0.10~φ0.64φ0.15~φ1.04φ0.2~φ1.7Stranding section area (square milimeter)0.035~0.45 square milimeter0.05~2.5mm20.5~6mm21.0~16mm2Core wire single wire diaφ0.25~φ0.8mmφ0.75~φ1.5mmφ1.0~φ3.0mmφ1.0~φ4.0mmCore wire stranding outer diaφ0.5~φ1.6mmφ1.5~φ3.0mmφ2.0~φ6.0mmφ2.0~φ8.0mmPitch(mm)4.5-17.5(10 kinds)5.82-53.73(34 kinds)11.48-100(36 kinds)19.8-200(30 kinds)Direction of layOptional for right or leftOuter dia*bore*outer widthφ300*φ30*160Φ400*φ56*300
φ500*φ70*320φ630*φ80*360φ800*φ80*600Max rotating speed3000(6000/twist)2200(4400/twist)1600(3200/twist)1200(2400/twist)Main motor power3.7KW5.5KW7.5KW11KWInverter power3.7KW5.5KW7.5KW11KWtension control method(Mechanism friction)protectionMachine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.Brake modeElectromagnetic brakeTraversing method Rolling ring drive units, winding pitch and breadth are adjustableoperation modePush-button controlDimension (L*W*H)2300*1000*11502800*1280*13003280*1600*16003600*1850*180

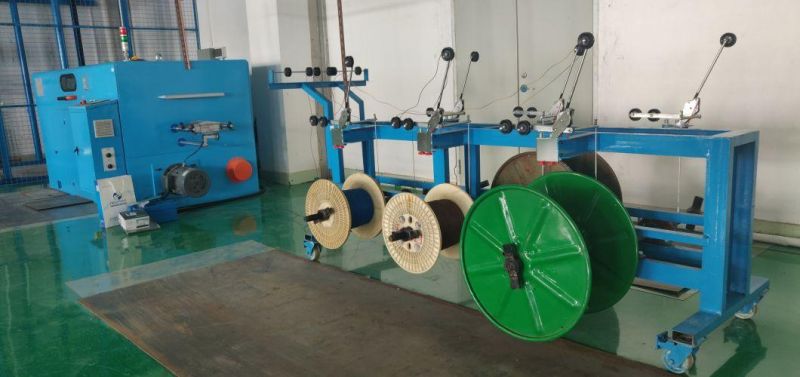

630MM Double Twisting Machine in our customer's plant:



       Hope you can read through our company introduction below. However,if you are in urgent need of wire/cable equipment,I also prefer to receive your name card , pictures of original products and product that you want to achieve at first and get exact inquiry from you.Thank you so much! ∧ω∧
       Followings will let you have a general idea of us:
       Our company  running for over ten years in designing and manufacturing automatic wire&cable equipment locates in the  manufacturing center--Humen Town,DongGuan City,GuangDong Province,China.We have mature production technology  applying for whole set production line of HDMI,LAN cable,power wire,USB3.0/3.1,Car wire,data wire,high frequency wire,earphone wire etc.from extrusion,twisting,taping,cutting,coiling/rewinding to packing etc.
       Our strength:
1.Factories:
Two factories are in wire&cable equipment manufacturing center distributing in south and north China.
2. Expos:
Every year we regularly attended over 6 international wire&cable Expos home and overseas.(Russian(March),Germany(April),ShangHai(September),Thailand(September),India(November) etc.)
3.Output:
The annual output is around 600 sets. Our annual sales in 2019 has reached up to one hundred million.
4.HR:
NewTopp team has been up to 200 staffs until 2020,and the quantity is still rising.
5.Technology:
As brain of NewTopp,it provides continuous software system support and technological update . Every year we invite foreign professional engineers from our partners to attend annual technical seminar.
6.Overseas Market:
We have got a wide market in southeast Asia.We mainly sold our equipment to Russia, Iran, Italy, Turkey, South Korea, Japan,Vietnam, India, Saudi Arabia ,Indonesia  ect.
7.Partners:
Two of our long-term cooperative partners are:
Luxshare-ICT: ranks the 74th on the list of 2020 market capitalization top 500 in China)
BELDEN: Belden Inc.&Cable Design Technologies Corp)
      I am looking forward to hearing from you!
Best regards,
More cable production line such as data/high frequecy cable USB3.0/3.1, HDMI, DVI, SATA etc., please kindly contact the below information:Dongguan NewTopp Electric Machinery Co. Ltd


Website:  http://dgnewtopp.en.made-in-china.com     http://dgnewtopp.en.made-in-china.com
Add: No.286 Huaide Road, Humen town, Dongguan City, Guangdong province,China.
We are looking forward to hearing from you, dear friend!
