Product Description

CROSS WINDER FOR LAN CABLE

1.Features

• Suitable for Cat 5,Cat 5e, Cat 6

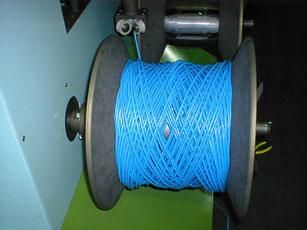

• Winding LAN cable into a net type coil.
• This Machine is also applicable coaxial cable.
• You may select to wind the coil with / without a hole.
• Size of the hole is adjustable thru touch screen to meet your box size.

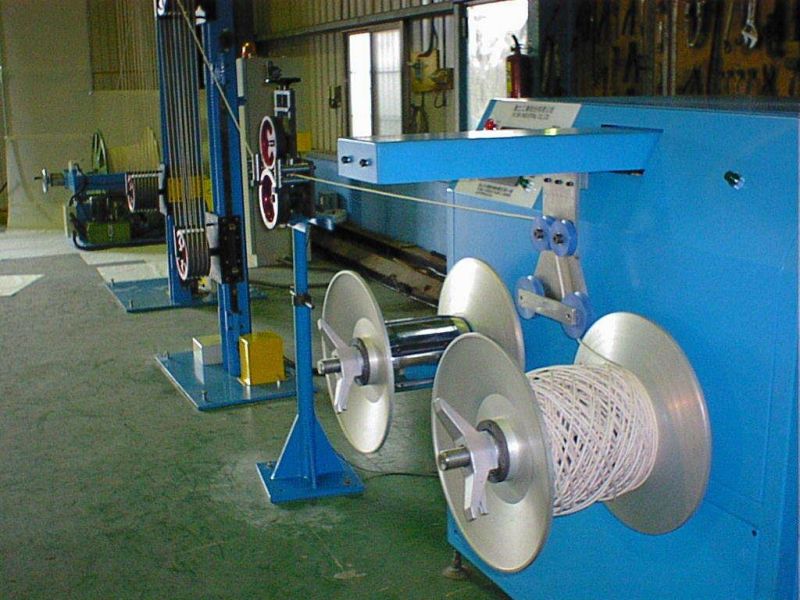

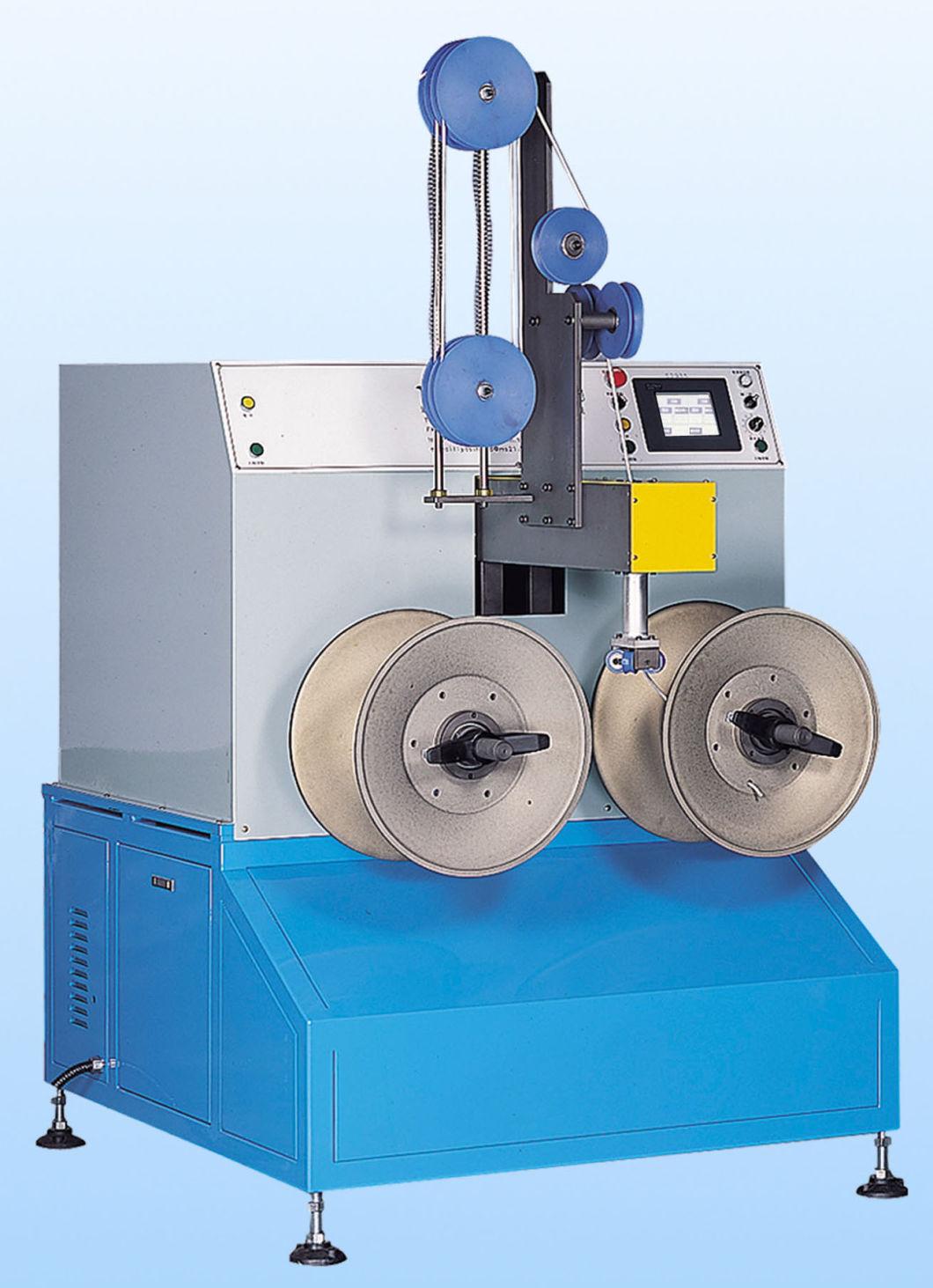

2.Equipment Picture



3.Technical Parameters
CROSS WINDER FOR LAN CABLE

Model	Height (mm)	Outside diameter  O.D(mm)	Inside diameter I.D (mm)	Cable Diameter (mm)	Rotation speed (RPM)	Pneumatic
DCW-2540	250	180~360	120~200	0.8~6	1000	No
DCW-2540P	250	200-460	140-220	1~12	800	Yes
