• Model NO.：TF
• Function：Wire Peeling
• Application：All Kinds Cables
• Operating：Automatic
• Processed Cable Diameter：1-160mm
• Voltage：Customized
• Color：as Required
• Transport Package：Ply Wooden Case
• Specification：550*510*840
• Trademark：TF
• Origin：China
• HS Code：8479819000
• Production Capacity：10000sets,Year

Basic Info.

Model NO. TF Function Wire Peeling Application All Kinds Cables Operating Automatic Processed Cable Diameter 1-160mm Voltage Customized Color as Required Transport Package Ply Wooden Case Specification 550*510*840 Trademark TF Origin China HS Code 8479819000 Production Capacity 10000sets/Year

Product Description

Professional wire cable stripper tool

wire stripping tool Factory Introduction:
As a professional metal recycling machines manufacturer, we have been working hard to provide advanced equipment and professional solutions for your metal recycling business. Always endeavored in developing advanced metal recycling technology, we can customize special solutions to help you recycle more efficiently and more cost effectively.
No matter you are engaged in processing copper cables, scrap radiator, scrap motor, aluminum cans, as well as other types of metal, you can find proper solutions here. We manufacture various types of copper cable granulator, wire stripping machine, radiator recycling machine, motor recycling machine, metal crusher and metal baler to meet different requirements for scrap metal recycling. Besides, plastic recycling machine is also in our business range.



wire stripping tool Introduction:
TF series wire stripper can be used for removing PVC/plastic/PE skin and pick up copper or aluminum cores inside the wire. It has high stripping efficiency and get high purity copper or aluminum. Normally there are several holes with different size which applicable for different diameter wires and cables, users can choose suitable model according size of raw material.


wire stripping tool Application:
It applies to various types of electric wires and cables, including copper wires, aluminum wires, steel wires, etc. Various rubber cables are easy to be stripped. Moreover, the cable stripper can strip single-core or twin-core flat wires at one time.


wire stripping tool Specifications:
There are six main models for cable stripper as follow:

Model	Wire dia(mm)	Voltage(V)	Power(kw)	Dimensions(mm)	Weight(kg)	Capacity(kg/day)
TF-1	1-25	220/380	1.5	550*510*840	60	100-300
TF-2	1-30	220/380	2.2	560*550*840	70	300-600
TF-3	1-35	220/380	2.2	600*580*840	80	400-1000
TF-4	1-42	220/380	2.2	700*610*840	110	600-1500
TF--5	1-55	220/380	2.2	700*610*840	110	600-1700
TF-6	1-160	220/380	3/4	800*580*1200	200	800-2000

wire stripping tool Related Machine:
We also supply large capacity copper wire recycling machine(granulator).
Please contact with us freely for more information.

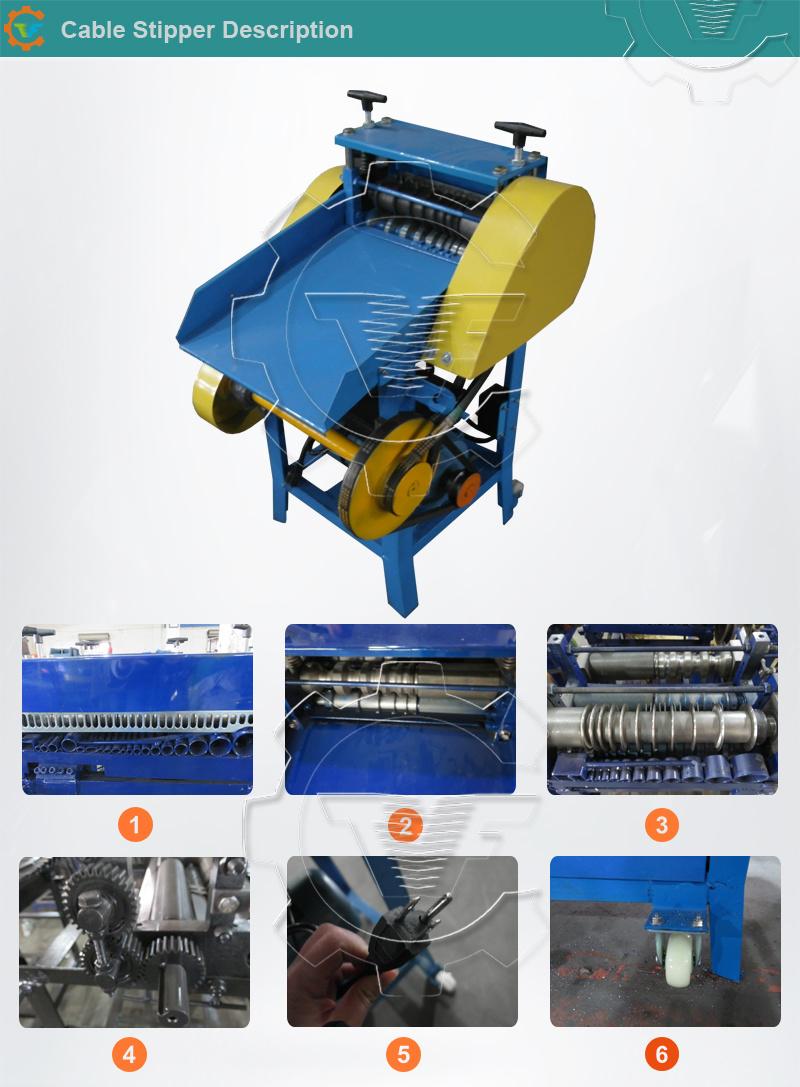

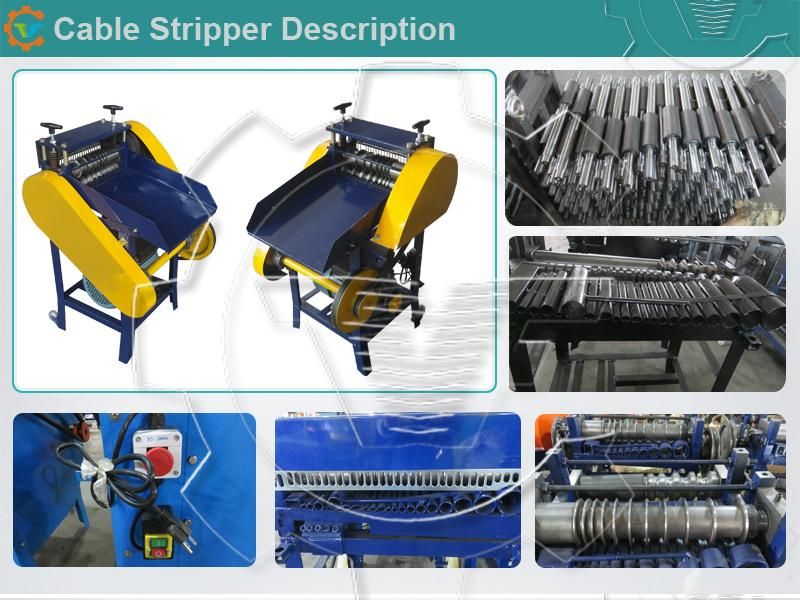

wire stripping tool Description:
Cable input: Scrap cables are put into the hole for peeling. There are different size of the holes, and customers could choose the applicable one according to cable diameter.
Peeled cable output: Cables after peeling get out of this plate: clean core and clean pvc cable skin.
Cutting blades: Cable skin is cut by blades and separated with inside core.
Gear: Gears help the roller with blades rotate to finish cable peeling.
Plug: We could put different standard plug according to customers' demand.
Wheel: There are wheels on the stripper.It is easy to move the machine freely.

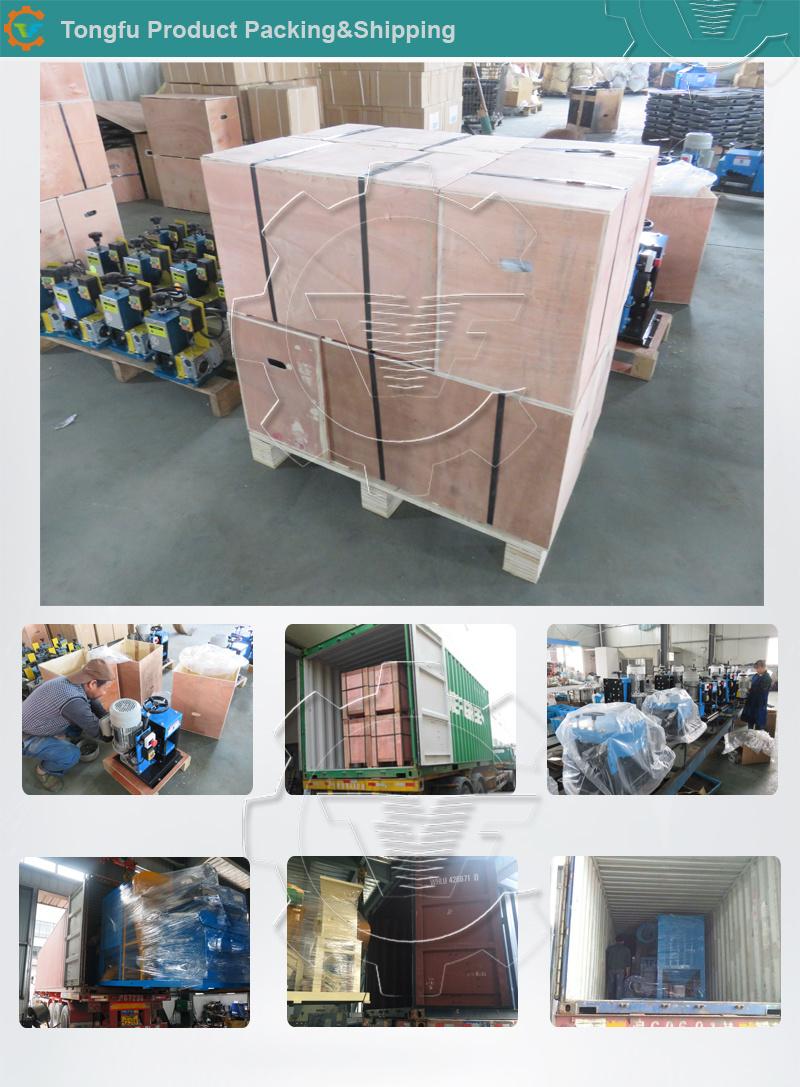

wire stripping tool Packing&Shipping:
Standard package of the stripper is PLY WOODEN CASE.
Firstly we pack the machine with plastic bag or films, and then put them into wooden case.(exportation standard)
if customer need large quantity, we will pack them with wooden case and then put into container.
