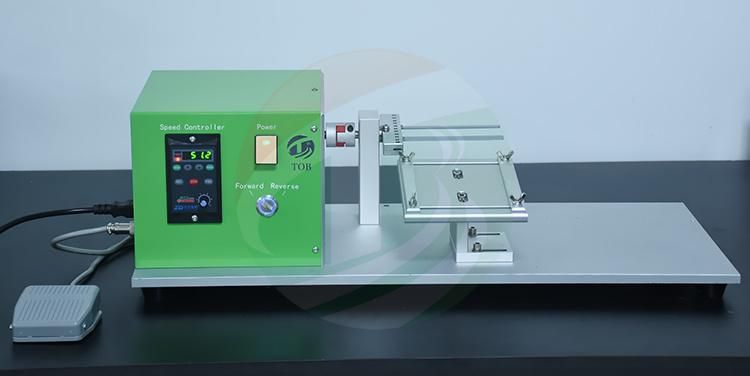

High Quality Semi-Automatic Pouch Cell Battery Winding Machine
XIAMEN TOB NEW ENERGY TECHNOLOGY CO., LTD.- After-sales Service：1 Year
- Warranty：1 Year
- Automatic Grade：Automatic
- Transport Package：Wooden Box
- Trademark：TOB
- Origin：China
Base Info
- Model NO.：TOB-JR135-P
- Production Capacity：10000 Set,Month
Description
Model
Semi-Automatic Winding Machine TOB-JR135-P
Working Voltage
AC110V/220V, 50/60HZ
Power
40W
Warranty
One Year limited warranty with lifetime support
Winding Speed
0 - 170 RPM Adjustable

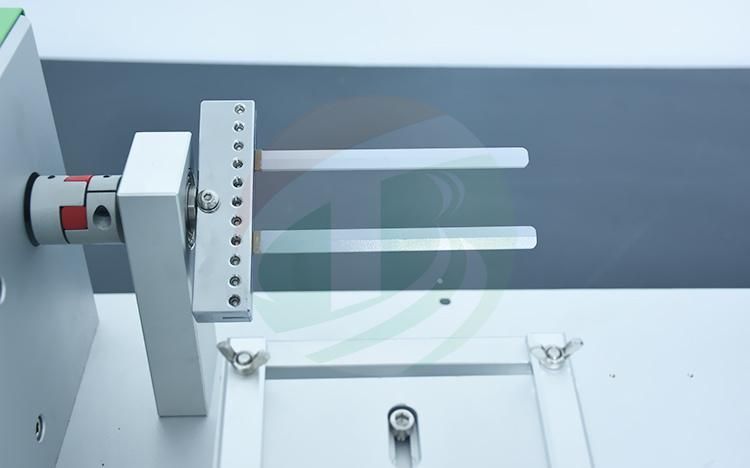

Winding blade
The winding width depends on the width of the winding blade
Customized square winding blade according to battery model
Winding Mode
Switchable between clockwise and counterclockwise
Output
70-100EA/h, according to battery size and maunal
Product Dimensions
(L*W*H)
360*310*280mm
Net weight
About 20kg (45 lbs)
Application Notes
This machine can be used for prismatic battery with square winding shaft,
and you can also choose the round winding shaft for cylinder cell core winding,
We will supply with the suitable winding accessories according to your battery model
