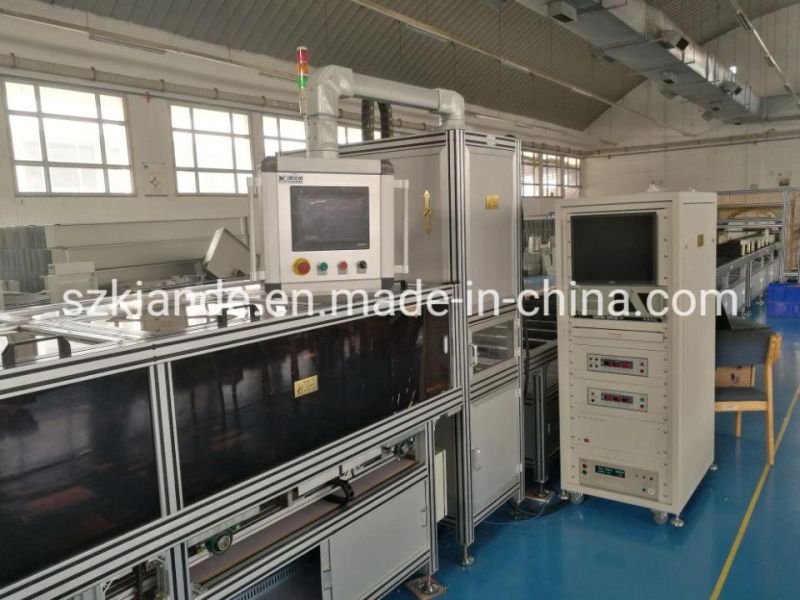

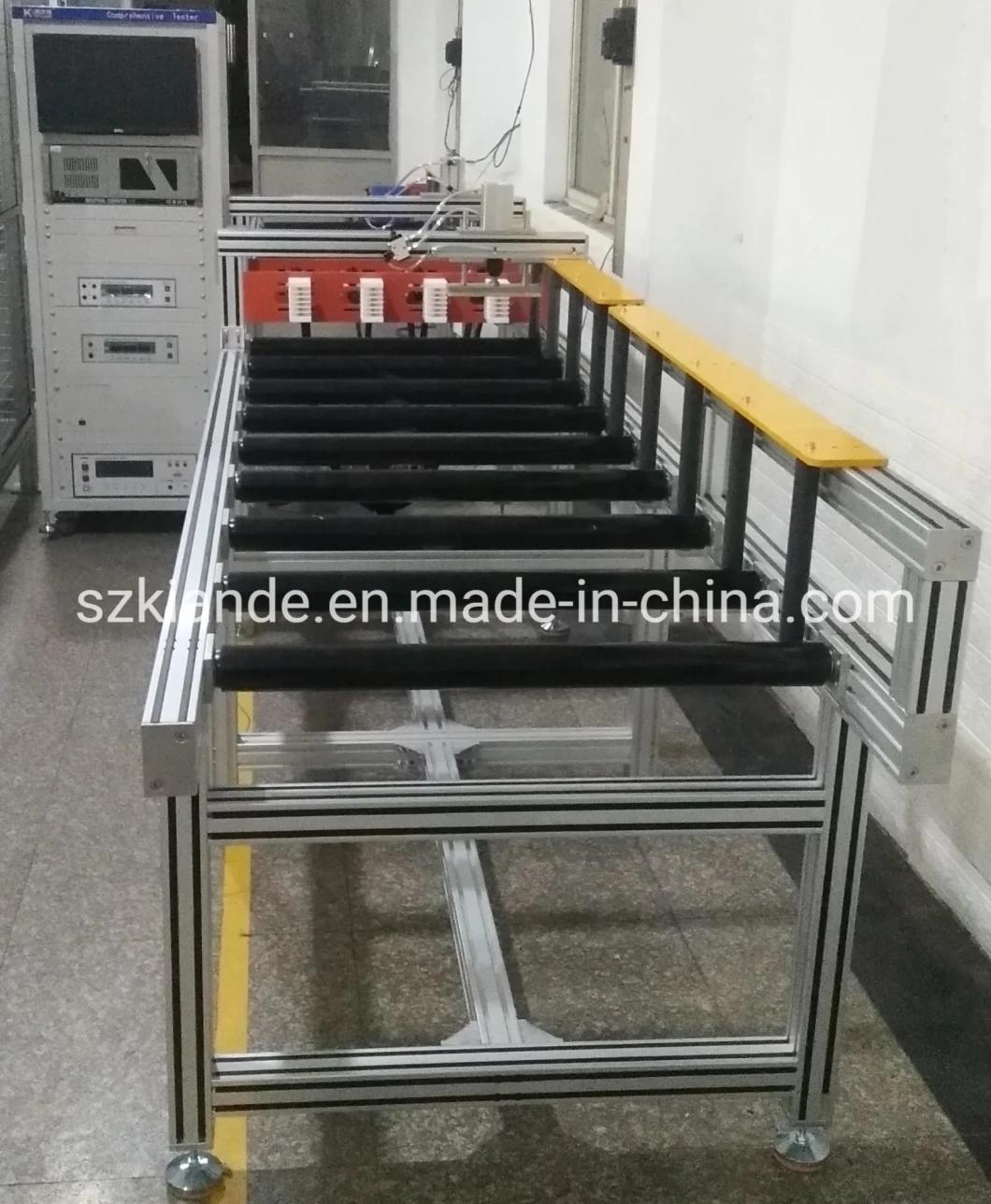

Automatic busbar inspection line,Busduct Testing equipment for high voltage withstanding/insulation resistance etc
The automatic busbar inspection line adopts high voltage for busbar voltage and insulation resistance testing.
Specification:
1. suitable for straight compact busbar 630A~2500A, single layer, length 1.5~6m
2. working efficiency: 3min/piece
3. length of inspection line: 12m
Configurations:
1. One set of automatic patching machine;
2. One set of automatic inspection instrument;
3. One set of busbar automatic inspection electrical control system
Features:
1. Automatic end stop structure to align the busbar trunking system;
2. Automatic patching machine for busbar of different phases;

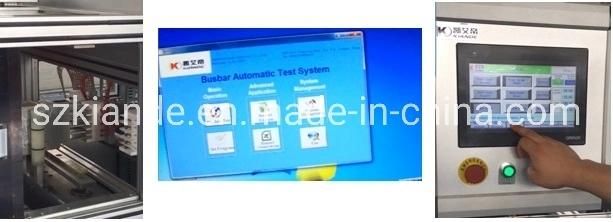

3. Automatic moving, testing and reporting
4. Testing data can be read on computer and printed out;
5. Custom and warranty available;

Busbar phase and wire	3P5W3P4W3P3W
Busbar length	1.2~6m
Nos of inspection fixtures	3 pieces
Housing dimension	L13.5(18)*W0.8*H0.8 m
Control mode	PLC or barcode
Inspection content	Voltage resistance, insulation, grounding
Transformation mode	Internet transform, USB
Voltage	380/415V AC 50/60Hz
Total power	4kW
Air source	0.6MPa

Manual inspection machine
1. Application for elbow busbars, flange end busbar, straight busbar less than 1m.
2. All the testing data can be recorded on the control system.


Company introduction

We are the company specialized in busbar machine.Busbar machine means busbar production machine or busbar processing machine including mylar sleeve forming machine, busbar assembly machine, busbar riveting machine, busbar testing & inspection machine, busbar packing machine and busbar conveying machine. If you want to know how we use the machine to assemble the busbar, please kindly get the referenced pictures as below.

Step 1 Prepare all busbar finished components

Step 2 Use related busbar machines to process the busbar

Busbar machine copper processing
Need Kiande's busbar gas-hydraulic copper bar punching machine(This is one-time punching forming. In the market, some busbar manufacturer buys three-in-one busbar machine to bend and punch copper or aluminum bar. As the bar experiences many procedures, the accuracy is not good which will cause the phase distance too small to cause the short circuit.)

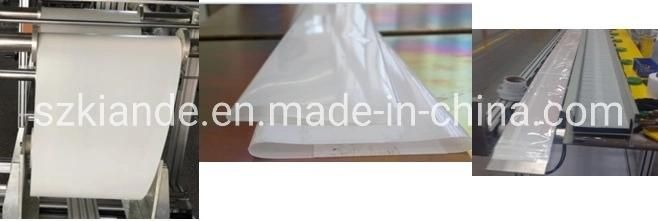

Busbar machine mylar sleeve processing machine polyester film forming machine
Need Kiande's mylar/polyester film forming machine. In the market, some busbar manufacturer requests workers to wrap the bar manually. Different workers have different workmanship. If employer meets the inexperienced workers, the wrapping part will have some gaps which will cause the short circuit.

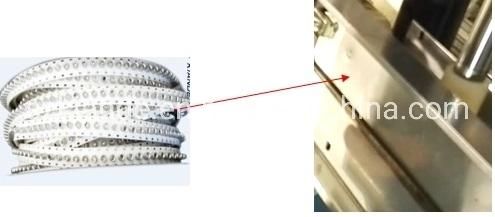

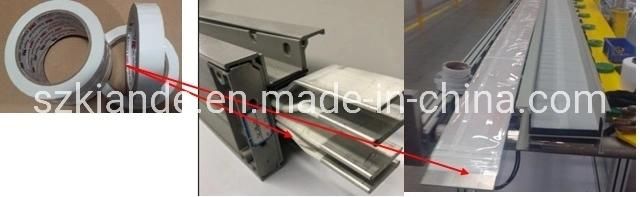

Busbar machine busbar accessory 3M insulation film Conductor(Copper bar/Aluminum bar) end wrapping

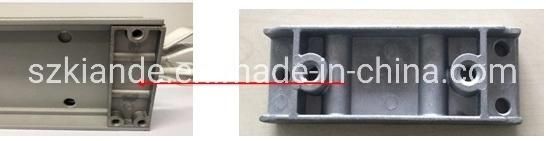

Busbar machine busbar accessory Aluminum profile capped casting capped end



Busbar machine Busbar riveting machine




Busbar machine busbar inspection machine busbar testing machine




Busbar machine busbar packing machine busbar packaging machine

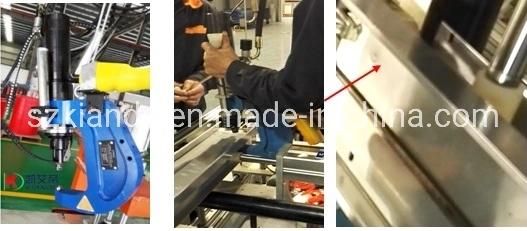

Busbar machine busbar accessory rivet the rivet is to connect the profiles instead of bolts more stable and strengthen

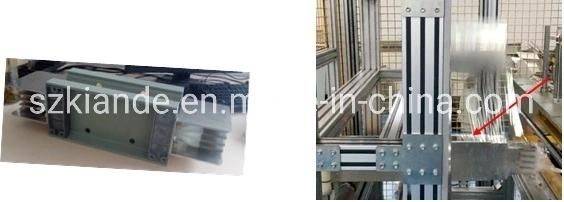

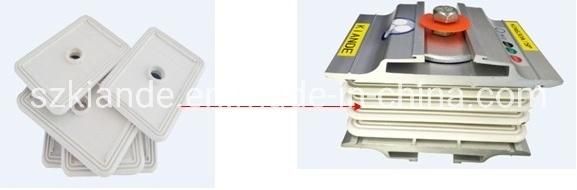

Busbar machine busbar accessory joint isolator
