• Model NO.：960S
• Type：Reflow Solder
• Power：4500W
• The Length of The Heating Zone：960mm
• Usage：SMD LED Soldering
• Heating Zones：5
• Weight：90kgs
• Dimensions：145*63*47cm
• Voltage：220V,380V
• Place of Origin：Shandong, China (Mainland)
• Heating System：Electric
• Customized：Customized
• Transport Package：1PC,Wooden Carton
• Specification：CE
• Trademark：PUHUI
• Origin：Shandong China
• Production Capacity：600PCS,Months

Basic Info.

Model NO. 960S Type Reflow Solder Power 4500W The Length of The Heating Zone 960mm Usage SMD LED Soldering Heating Zones 5 Weight 90kgs Dimensions 145*63*47cm Voltage 220V/380V Place of Origin Shandong, China (Mainland) Heating System Electric Customized Customized Transport Package 1PC/Wooden Carton Specification CE Trademark PUHUI Origin Shandong China Production Capacity 600PCS/Months

Product Description

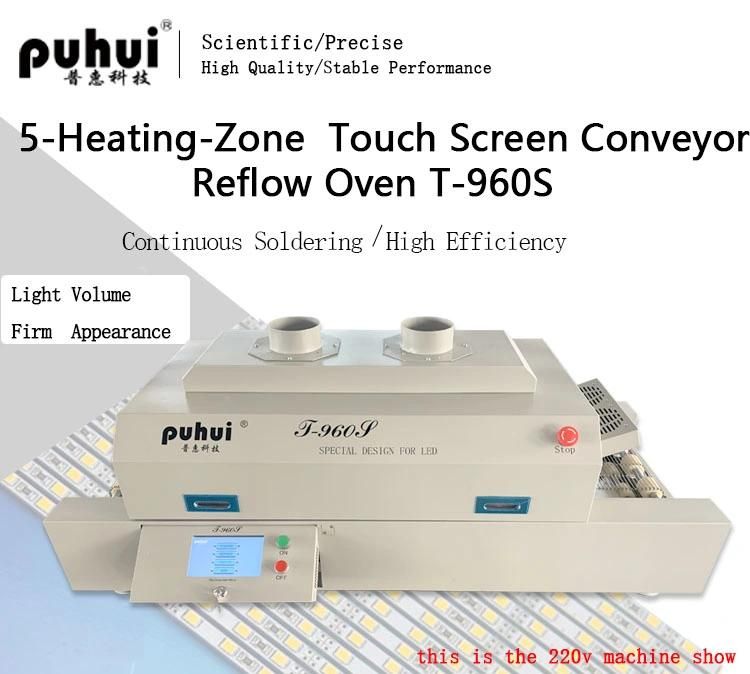

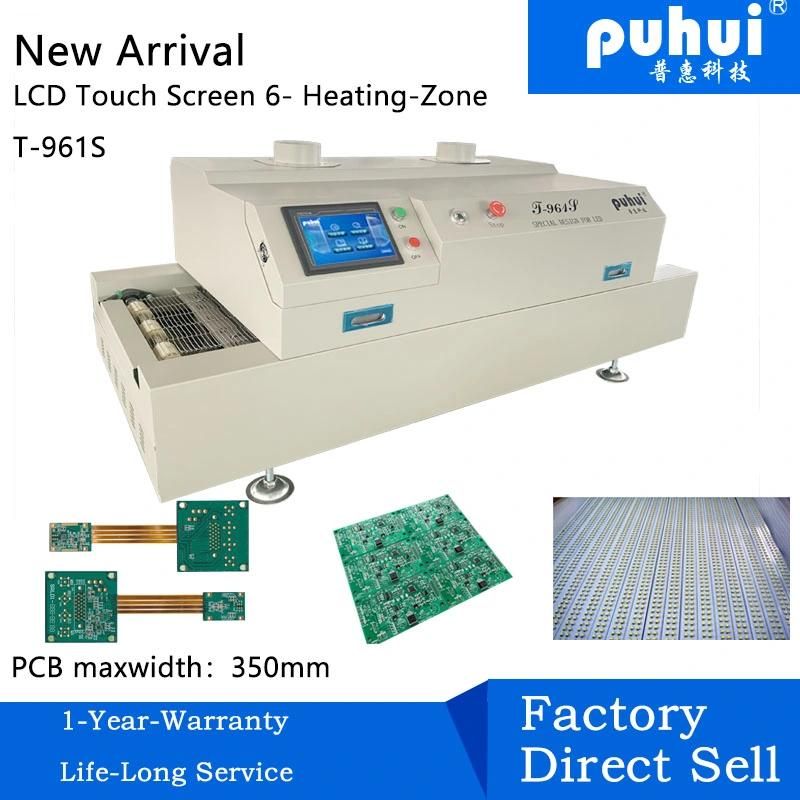

New Leadfree LED SMT Desktop Reflow Oven Puhui T961S

Model: T-961/T-961S/T-960/T-960E/T-960W/T-960S

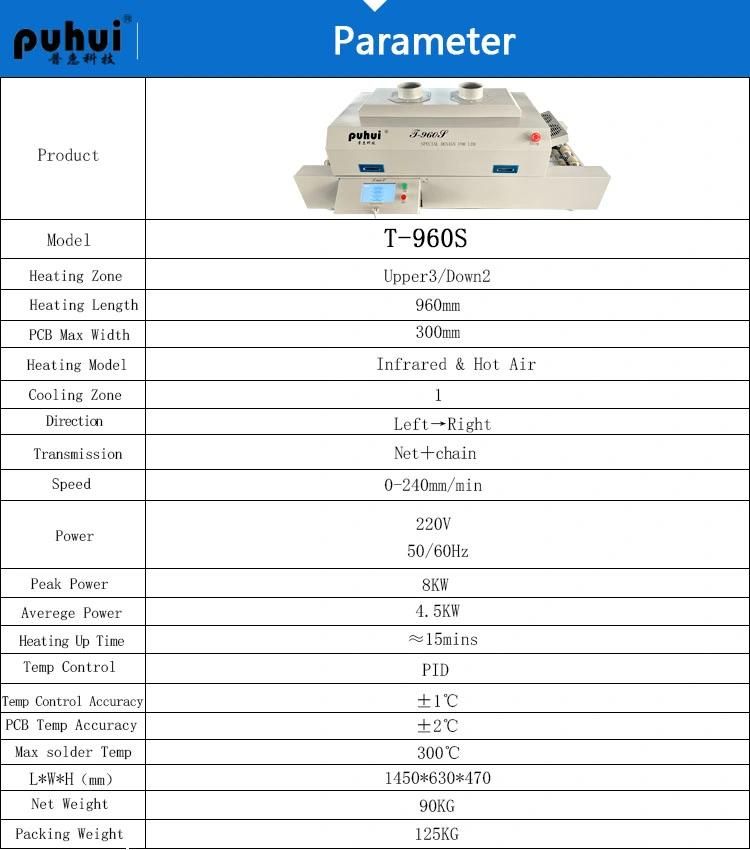

Technical Parameters

Model	T-961S
The heating zone quantity	upper3/down2
The length of the heating zone	1000mm
The heating type	intelligent level sirocco and rapid infrared heating
The cooling zone quantity	1

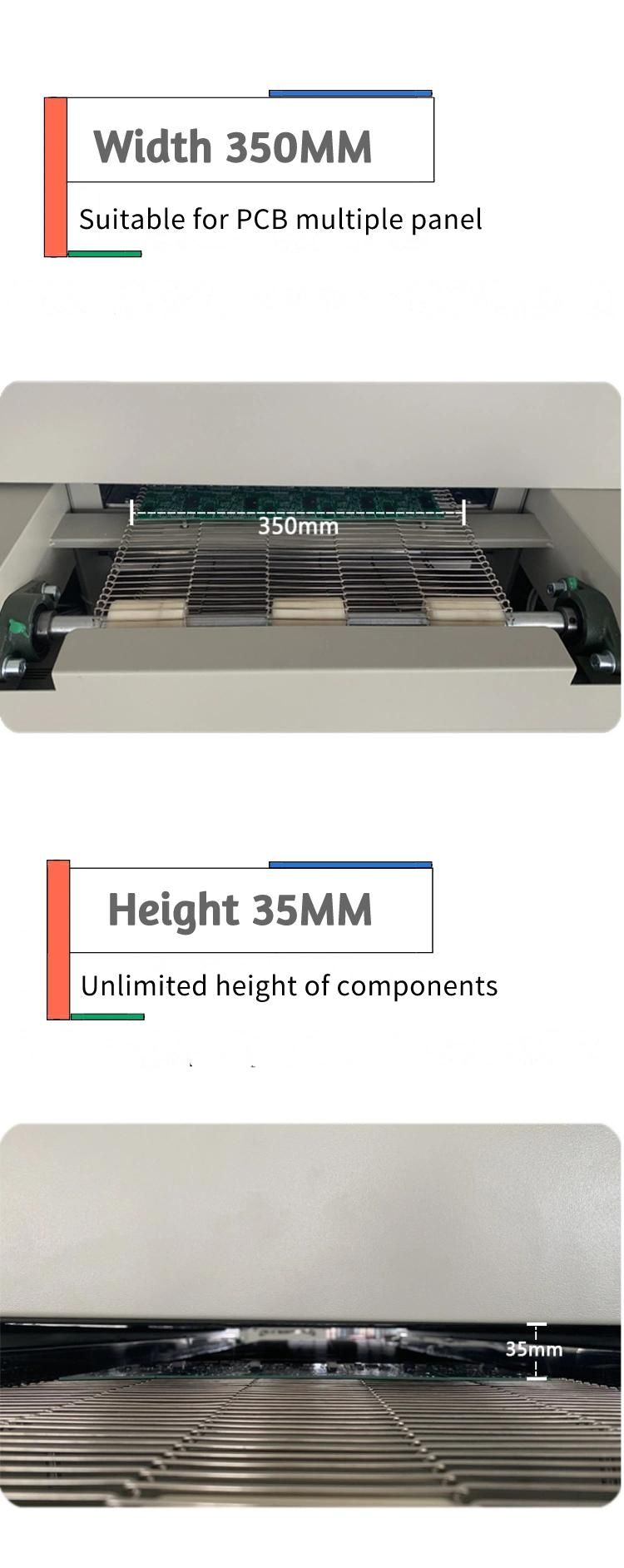

Maximum width of PCB board	350MM
The operation direction	left→right
Delivery options	Net transmission+chain transmission
The speed of conveyer belt	0-1600mm/min
The power supply	110V
Peak power	8KW
Heating up time	Around 15mins
Temperature control range	Room temperature~300ºC
Temperature control mode	PID closed-loop control
Temperature control accuracy	±1ºC
PCB temperature distribution deviation	±2ºC
Overall dimensions	1450×630×470mm
Machine weight	101KGS

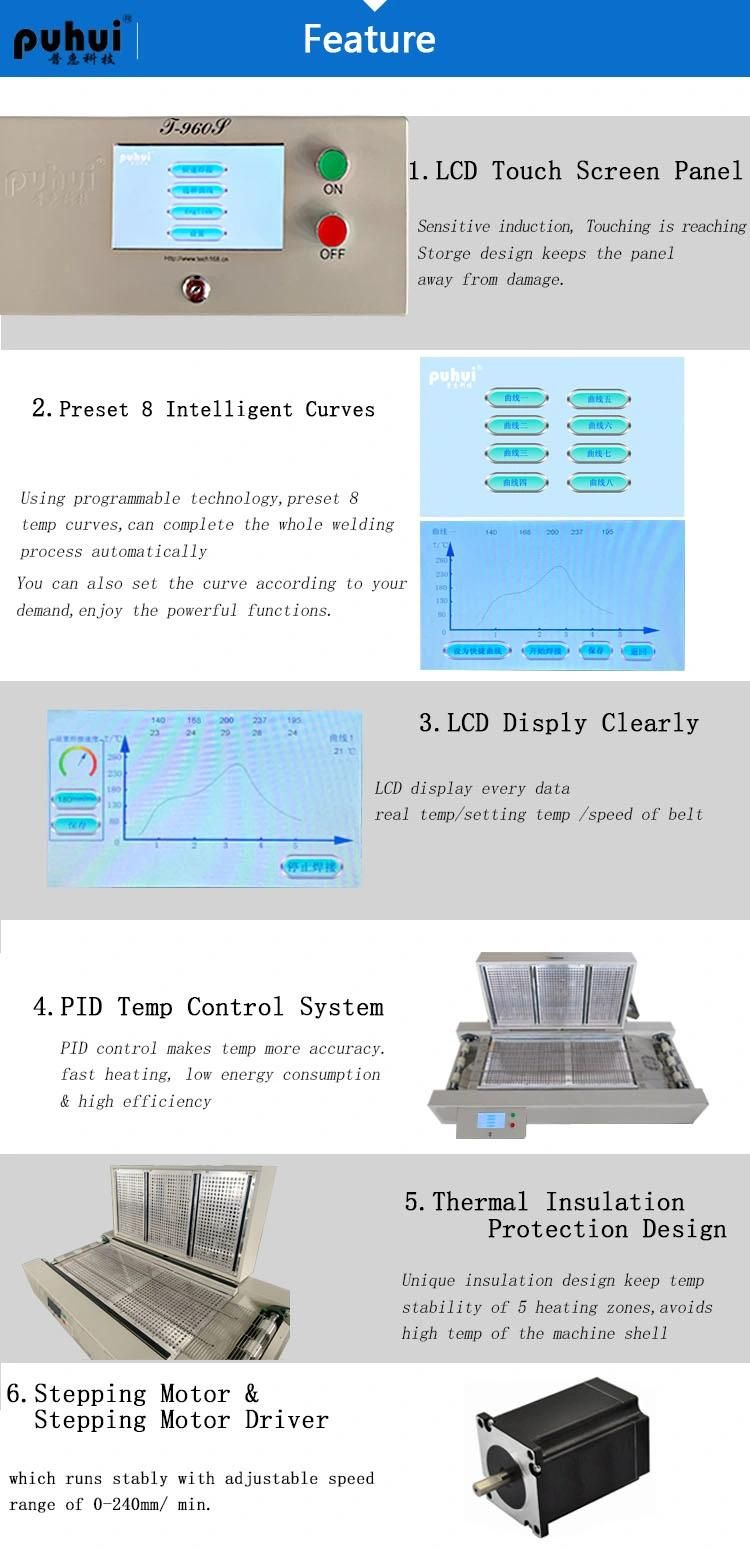

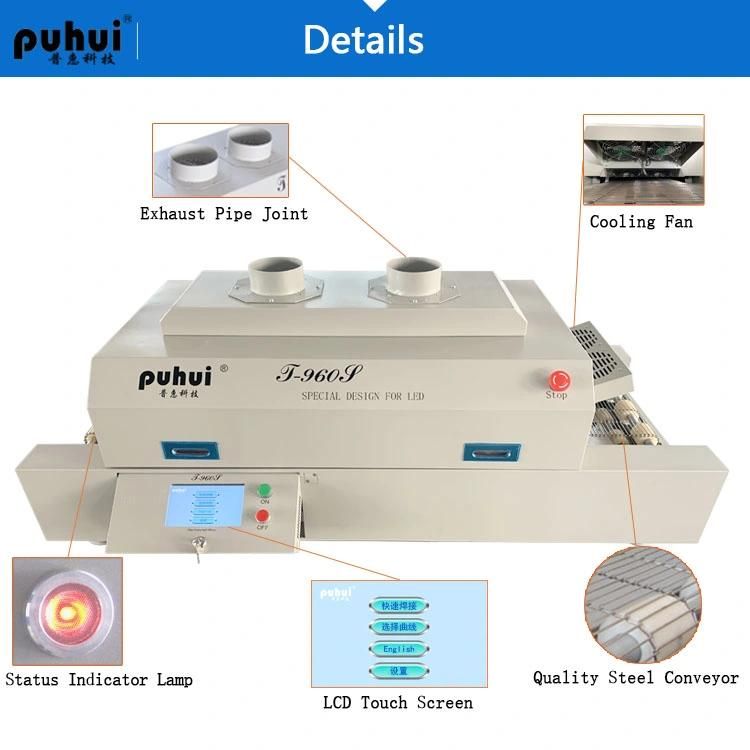

Features

1. This machine selects the intelligent level sirocco and rapid infrared heating technology controlling, equipped with special design wind wheel, speed stability and uniform temperature, suit for uninterrupted soldering the LED and BGA components.

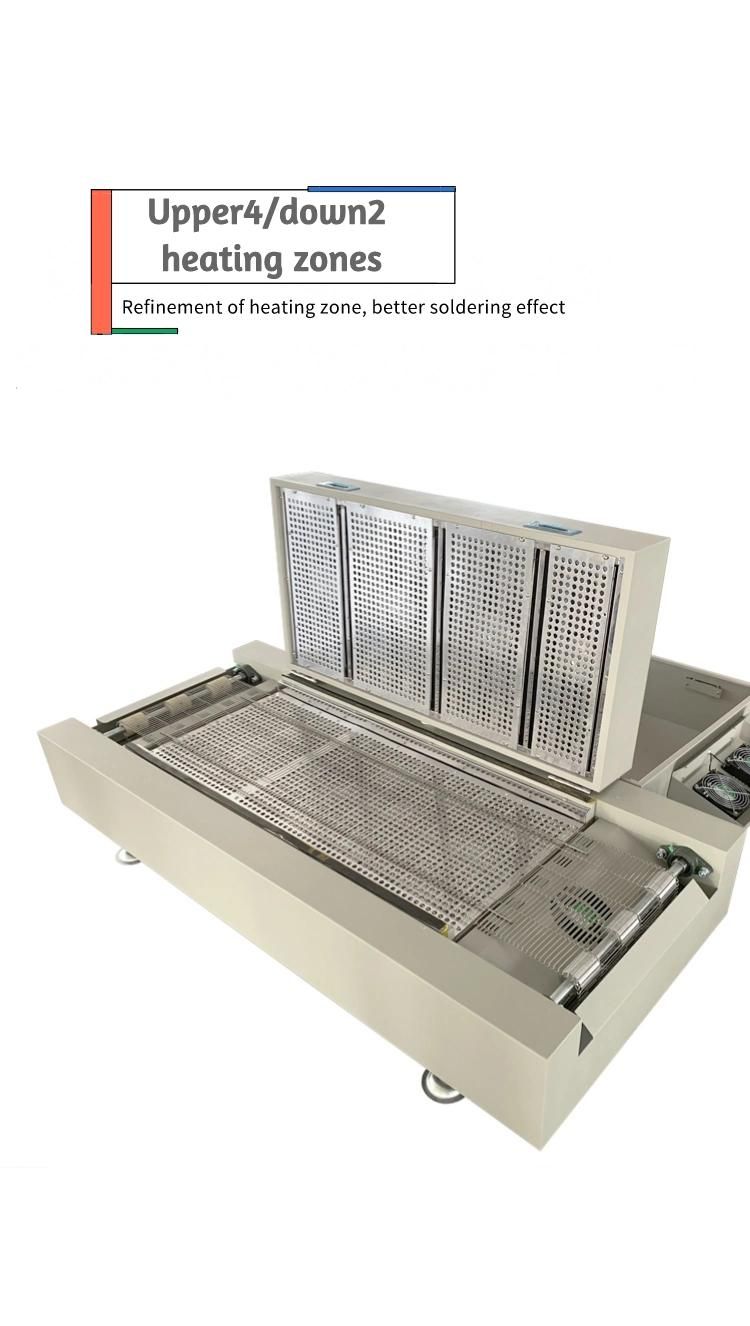

2. This machine is equipped with the crawlertype and five temperature area heating systems, and each temperature area uses independent PID controlling and updown heating type, can make the inside temperature more accurate and wellproportioned, just take about 20 minutes can let it heat up to the working temperature from the room temperature.

3. Intelligent temperature wave heating type, oversized capacity wave selection, have eight temperature waves can satisfy various welding technological requirements.

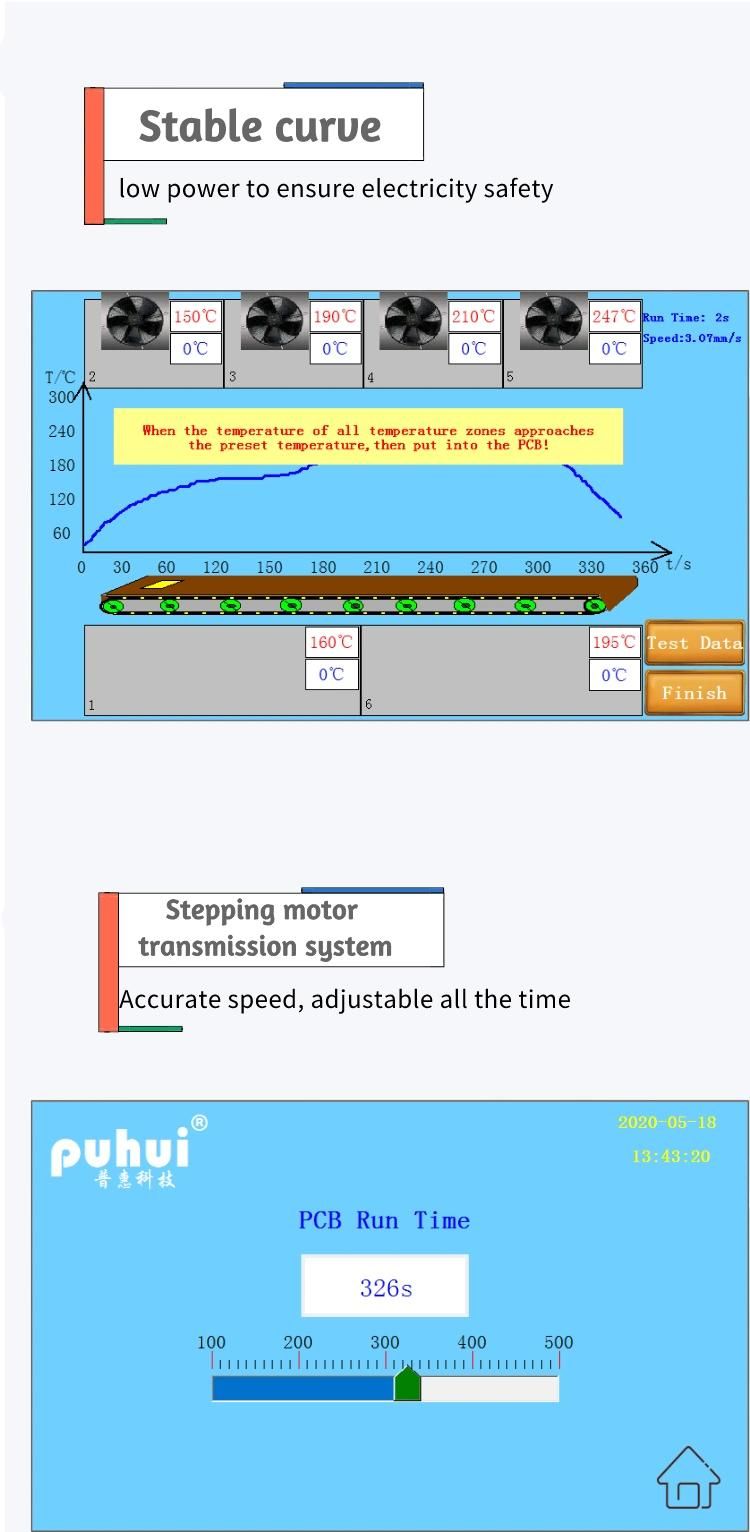

4. Use programmable technology, preset the temperature wave memory storage function, can complete the whole welding process automatically according to your presetting wave.

5. Adopt the thermocouple temperature measurement and add the compensation circuit, make the temperature measurement more accurate, the wave more perfect.

6. Use PID intelligent temperature control technology; make the temperature control more accurately. Adopt the imported large current solidstate relay noncontact output can effectively avoid the IC or circuit board damage due to the rapid or uninterrupted warming up, make the whole welding process more scientific safety.

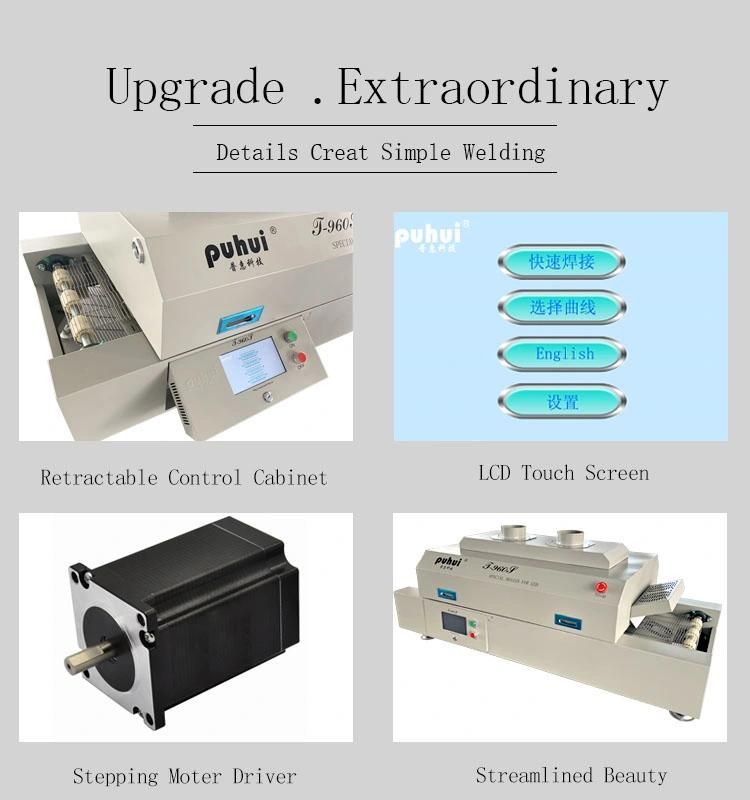

7. Transmission system adopt imported frequency conversion motor, PID closedloop speed, equip with all the import 1:150 turbine speed reducer, smooth operation, speed adjustable range 0-1600mm/min.

8. Adopt independent wheel structure and special stainless steel strut, durable wearresisting runs smoothly, speed precision can reach ±10mm/min.

9. Independent cooling zone, to ensure the PCB board of low temperature when the required.

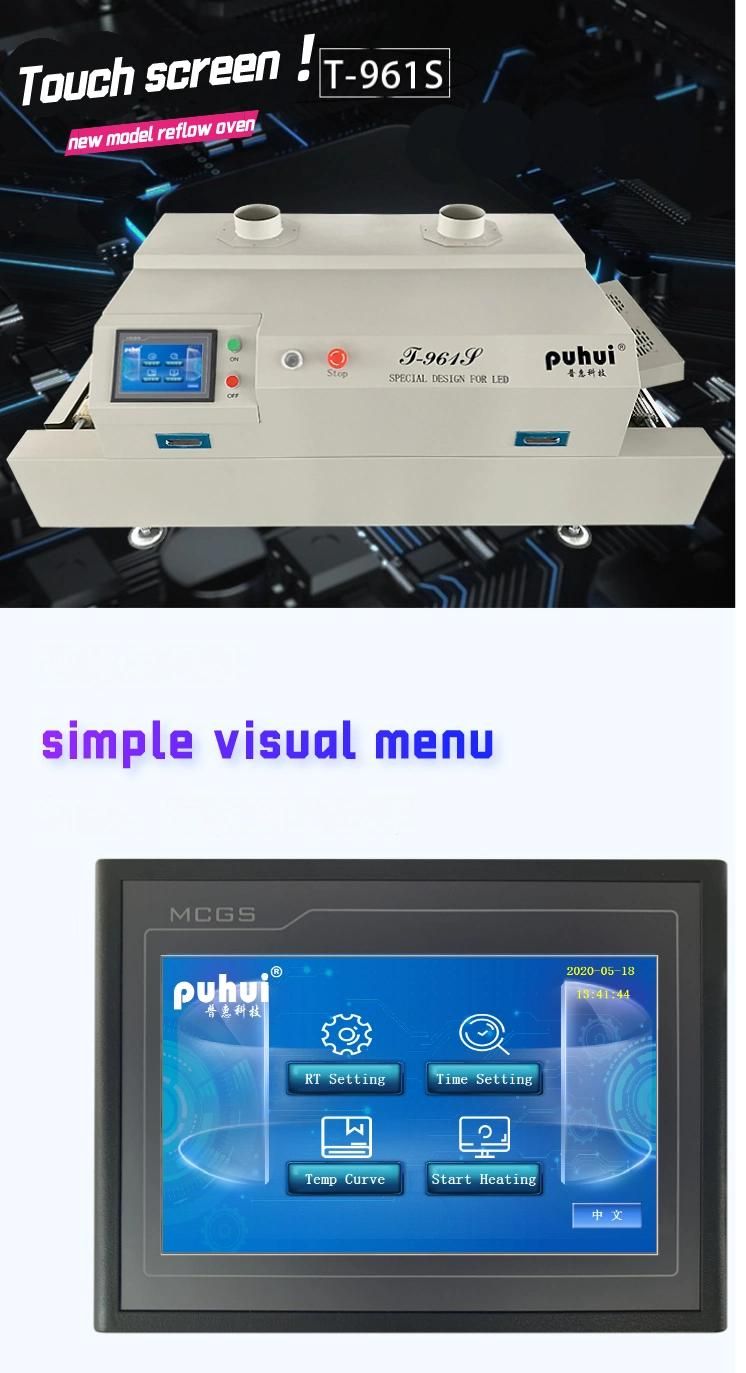

10. Friendly humanmachine operation interface, perfect LCD display, no need to connect with the PC, can watch the whole repairing process very clearly.

11. Ergonomic design, practical and easily operated. Good build quality but at the same time light weight and a small footprint allows the T960 to be easily bench positioned, transported or stored

T-961/T-961S/T-960/T-960E/T-960W/T-960S  How to select wave

Wave 1/2: less lead paste, like 85Sn/15Pb 70Sn/30Pb
Wave 3/4: more lead paste, like 63Sn/37Pb  60Sn/40Pb.
Wave 5/6: high-melting-point lead-free paste, like Sn/Ag3.5;Sn/Cu.75 Sn/Ag4.0/Cu.5 Sn95.5/Ag3.8/Cu0.7
Wave 7/8 : lead-free solder in melting point, like Sn/Ag2.5/Cu.8/Sb.5;Sn/Bi3.0/Ag3.0








Warranty
Warranty - the main body maintains for one year and the spare parts maintains for three months.
Service - provide the immediate network online Q/A and the technical advisory network service.


We are the ONLY and ORIGINAL manufacturer - Taian Puhui
Please contact us for good price and more details.







==================== Other Notice ====================

Payment:

* We accept ESCROW and alipay here.

* We also accept T/T, Western Union, MoneyGram, etc

Shipping:

·         We do not ship this product by Singapore /HK/ China Post Air Mail. Because it is hard to track and takes more time. Especially, it is not so fafe.

·         We will use FedEx/DHL/UPS/TNT/EMS for fast and safe shipping. We will use the most convenient one when you buy the product.

·         Before shipping, we will pack every product well for you. And please check the outside package when you receive the parcel well

·         If you have special requirement for shipping, please let us know in advance.



Warranty :

·         We provide 12 months Warranty for our products!

·         If you are not satisfied with our products when you receive them, please return it within 10 days for a replacement or money back. Please contact me before you return it.

·         If item is defective in 1 months for product reason, we will send you a replaced spare part without extra charger, or offer refund after we receive the defective item.

·         If item is defective after 1 months, you can still send it back to us. We will fix it for you free of charge and send it back to you, but you should bear the shipping cost..

 Company Information Tai'an Puhui  Electric Technology CO., LTD. Established in 2007,our company is a professional manufacturer engaged in the research, development, production, sale and service of BGA Rewok Station, Infrared Reflow Oven, Microcomputer Electronic heating plate, LED Light Welding Machine. We are located in the chest at the foot of Mount Tai, Qingdao, according to Hong Kong for less than 300 kilometers.  Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has applied for 16  patents. In addition, we have attained CE certificates.
  Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Europe and America, Australia, Southeast Asia. We also welcome OEM orders.
  To learn more about what we can do for you, contact us at any time. We look forward to establishing a good and long-term business relationship with you.We are the ONLY and ORIGINAL manufacturer - Taian Puhui
 Please contact us for good price and more details
