Small SMT Pick Place Machine for PCB Production Line with 4 Nozzle Heads and 40+ Feeders

Zhejiang NeoDen Technology Co., Ltd.
  • Condition：New
  • Speed：Medium Speed
  • Precision：Precision
  • Certification：CE
  • Warranty：12 Months
  • Automatic Grade：Automatic

Base Info

  • Model NO.：Neoden 4
  • Type：Medium-speed Chip Mounter
  • Feeder Qty for Tape Reel：48
  • Vibration Feeder Qty for Tube IC：5
  • Tray IC Capacity：45
  • Tape Width：8,12,16,24mm
  • Components：0201,BGA,Soic,Ssop, Qfn,Tqfp,LED
  • Height Max：5mm
  • Placement Area：310X400mm Without Tray, 140X400 with 1 Waffle
  • Power Supply：110,220V, 50Hz,180W
  • Placement Head Qty：4PCS
  • Packing Size：94X74X60cm
  • Transport Package：Funigation-Free Wooden Packing
  • Specification：CE
  • Trademark：Neoden
  • Origin：Zhejiang, Cn
  • HS Code：84798962
  • Production Capacity：200sets,M

Description

Overview Feature

1. with vision system high speed industry CCD camera brings high accuracy

2. online dual rails help automatic feeding board continously during mounting
3. speed with vision: 5000cph
4. support overlong LED strip 1.2m
5. leading mark point relocated technology in SMT line
6. 4 mounting heads, rotation 360 degree
7. support components 0201,BGA, SOT-23, QFN etc. which need high precision
8. on base windows
 Product Parameters



Component sizes with visionSmallest Component size:0201Largest Component size:TQFP240Component Height5mmResolutionX/Y axis:0.01mm ; Z axis:0.1mmRotation360 degreePositioning Accuracy+/-0.02MMX-Y repeatability+/-0.02MMApplicable PCB areaWithout Internal rails:350x400mmPlacement AreaWithout waffle Tray: 310x400mmWith 1 waffle Tray:140x400mmPower supply 110v/220vPower 180wExternal DimensionsMachine :87*68*48CM
Packing size:94*74*60CMWeightNet Weight:60KGS
Gross weight:80KGS
Small SMT Pick Place Machine for PCB Production Line with 4 Nozzle Heads and 40+ Feeders

Accessories :

1) Pick and Place Machine NeoDen4: 1
2) Nozzle: Totally 6pcs
3) 8G Flash Drive:1
4) Power Cord(5M): 1
5) Video training course: 1
6) Double Sided Adhesive Tape: 2
7)Allen wrench Set:5
8)Tool Box:1
9)Reel holder stand:1
10)Vibration Feeder:1
11)User Manual:1

Warranty: 2 years since time purchase and lifelong service support,  supply customers online Q/A, troubleshooting support.

Shipping: delivered in wooden case and deliver out in 15 days after payment received.
 Customers Case

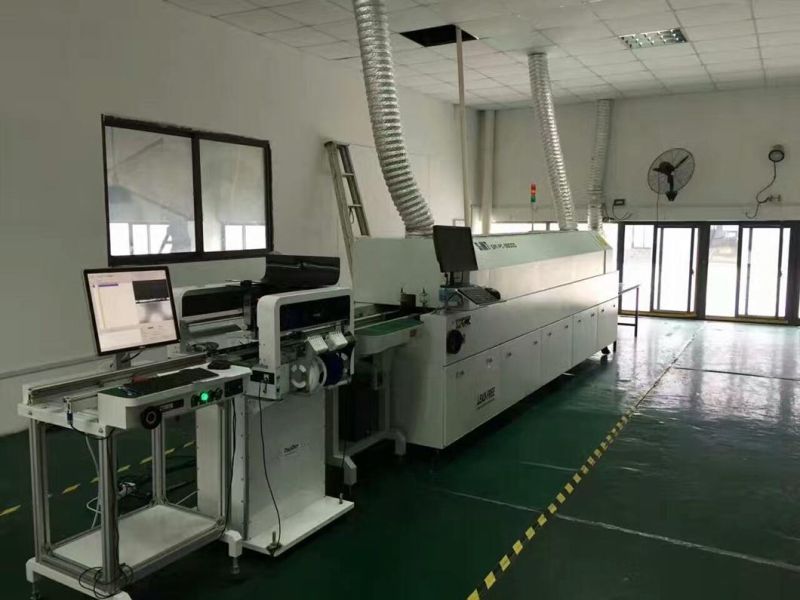

4- head pick and place assembly line:
Small SMT Pick Place Machine for PCB Production Line with 4 Nozzle Heads and 40+ Feeders

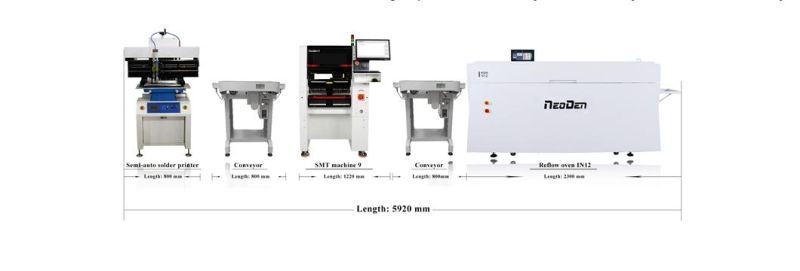

6- head pick and place assembly line:
Small SMT Pick Place Machine for PCB Production Line with 4 Nozzle Heads and 40+ Feeders

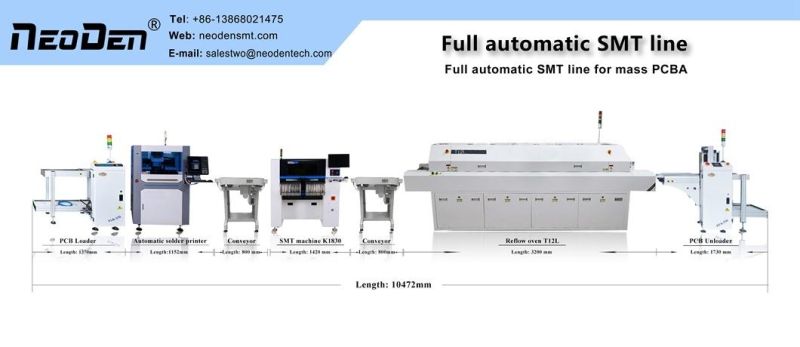

8- head pick and place assembly line:
Small SMT Pick Place Machine for PCB Production Line with 4 Nozzle Heads and 40+ Feeders
