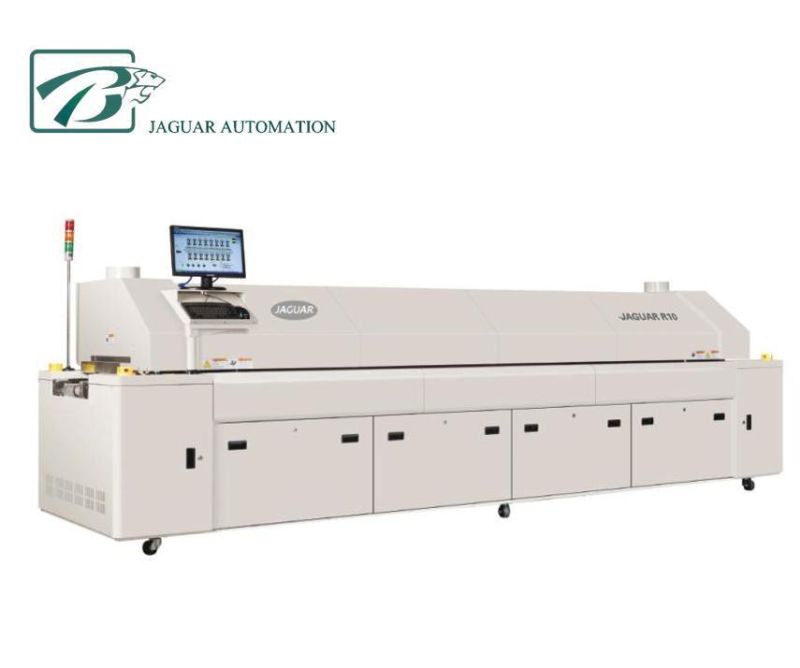

Jaguar R10 High End Hot Air Lead-free Reflow Oven
Specification:

Model	JAGUAR R10/R10-N
Outside dimension	6200 X 1350 X 1550mm
Standard color	Computer grey
Weight	2500kg
Number of heating zones	Up10/bottom10
Length of heating zones	3890mm
Number of cooling zones	2
Exhaust volume	10M³/min*2 exhausts
Power supply	5line, 3phase, 380V 50/60Hz
Start-up power	36KW
Power for warm up	12KW
Normal power	11KW
Heating pattern	Up & Bottom Hot air
Warming time	Approx. 20minutes
Temp. setting range	Room temp-350 degree
Control system	PLC+ Computer
Temperature control method	PID close loop control +SSR driving
Temperature control precision	± 1.0degree
Temperature deviation on PCB	± 1-2 degree
Data storage	Process data and status storage (80GB)
Abnormal alarm	Abnormal temperature (extra-high/extra-low temp.)
Board dropped alarm	Tower light: yellow warming: Green-normal: Red-abnormal
Max. width of PCB	450mm
Rail Number	1 Lane Or 2 Lane (option)
Components clearance	Top/bottom clearance of PCB is 25mm
Conveyor height	Light → right(option: R→ L)
PCB transmission agent	chain +mesh
Conveyor height	900± 20mm
Conveyor speed range	0~2000mm/min

Introduction:

1. Windows 7 platform, user friendly interface and easily swap between bilingual of English & Chinese.
2. Digital control system adopted with PLC and Modular circuit. Achieving high stability and repeatibility.
3. Intelligent diagnostic system (IDS) provides trouble remind, fault alert, list-out and SPC data record features.
4. Zone temperature and blower speed can be controlled Independently, to meet the high-precision requirements.
5. Effective heating zone length with uniform heat distribution.
6. Forced air cooling system with efficient cooling speed suits most kinds of lead-free soldering application.
7. PLC and PID closed loop control to achieve high precision temperature control.
8. Standard 10 couples of top and bottom zones with patented air management structure, more efficient hot air convection and faster thermal compensation.
9. The rail track is dealt with hardening process to make it more reliable.
10. Manual adjusted process track width whereas providing option of automatic by SPG gear motor.
11. Computerized controlled rail chain lubrication structure.
12. Powerful software system can save all settings and data printout capability.
13. Flux removal unit meet with environmental protection requirement.
