• Model NO.：DL45,65,80,90,120
• Marketing Type：Ordinary Product
• Voltage：380V, 50Hz, 3phase,Customized
• Color：Customized
• Feature：Fast Speed
• Video Outgoing-Inspection：Provided
• Machinery Test Report：Provided
• Transport Package：Wooden Box
• Specification：1200*1000*1200
• Trademark：DL
• Origin：China
• HS Code：5305
• Production Capacity：10000pieces,Year

Basic Info.

Model NO. DL45/65/80/90/120 Marketing Type Ordinary Product Voltage 380V, 50Hz, 3phase/Customized Color Customized Feature Fast Speed Video Outgoing-Inspection Provided Machinery Test Report Provided Transport Package Wooden Box Specification 1200*1000*1200 Trademark DL Origin China HS Code 5305 Production Capacity 10000pieces/Year

Product Description

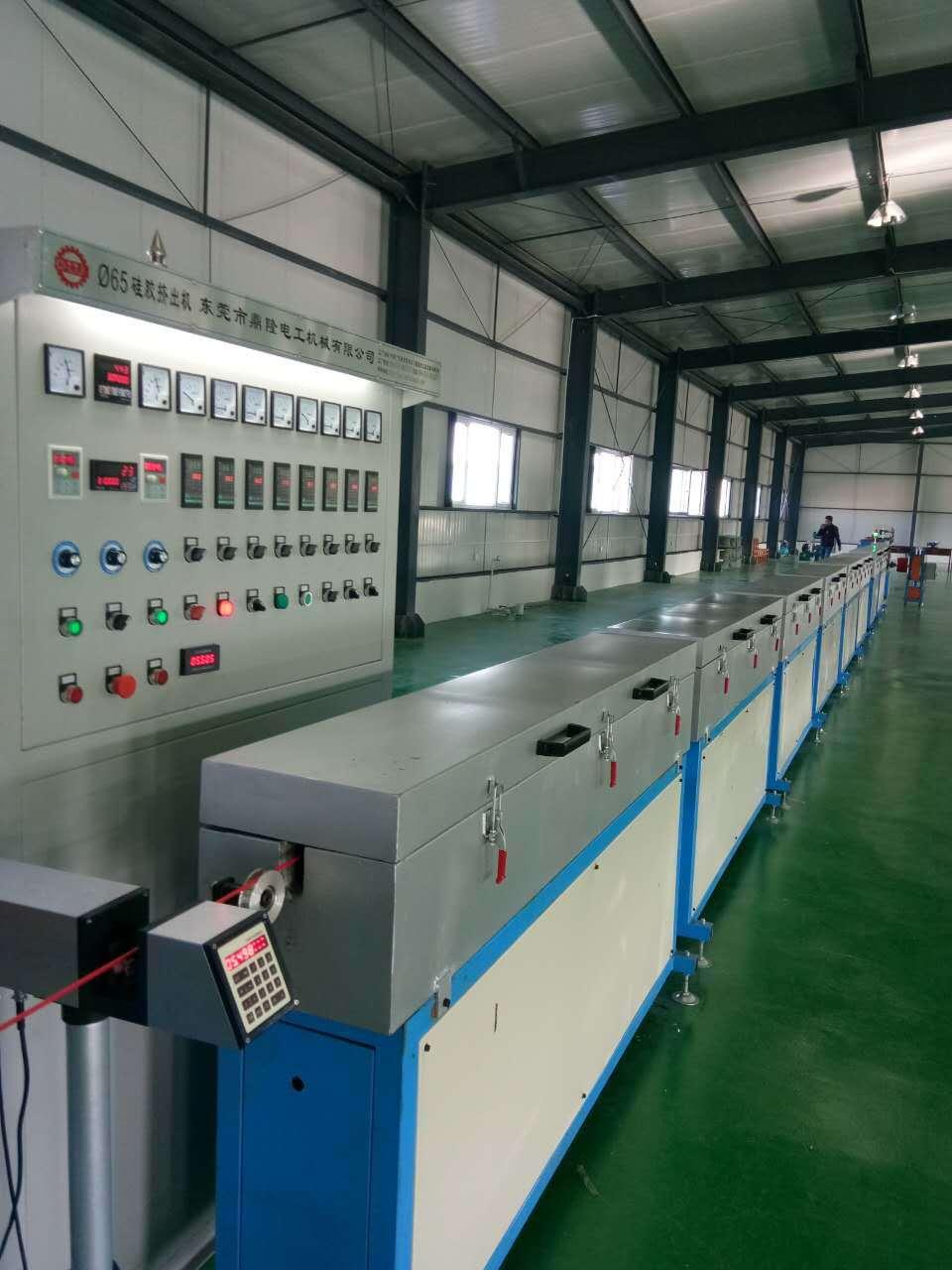

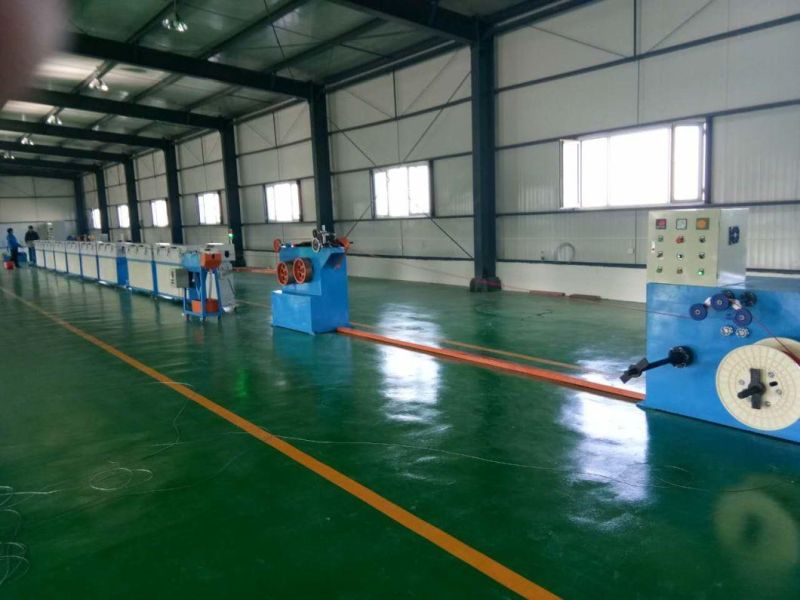

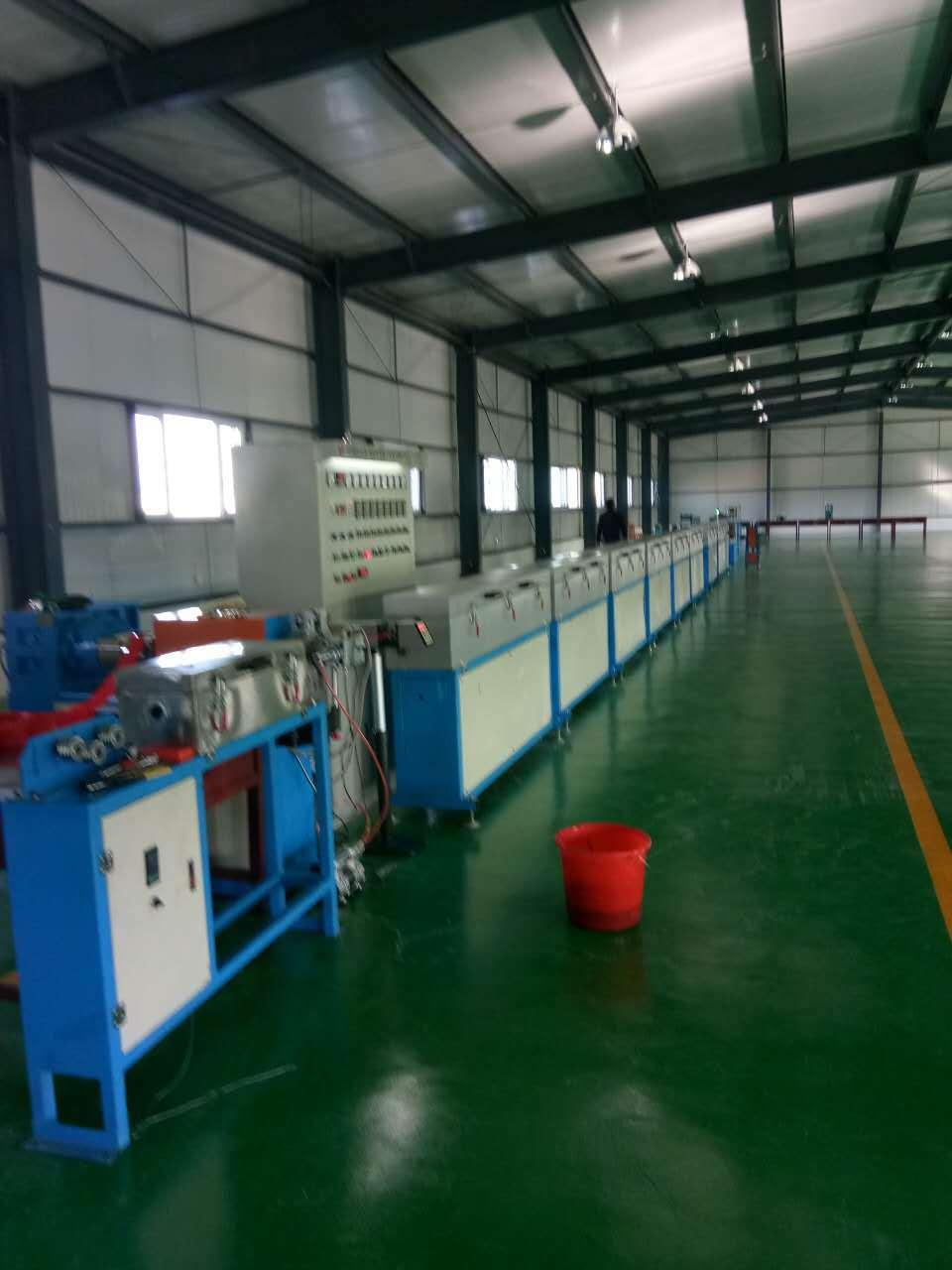

High temperature resistant silicone high temperature wire extruder

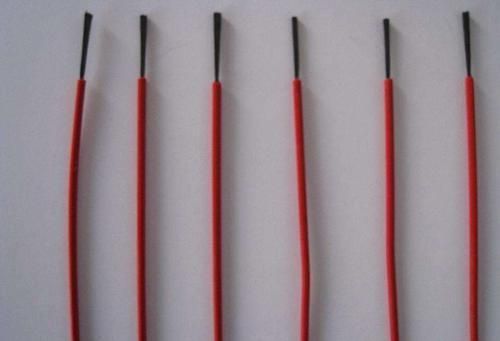

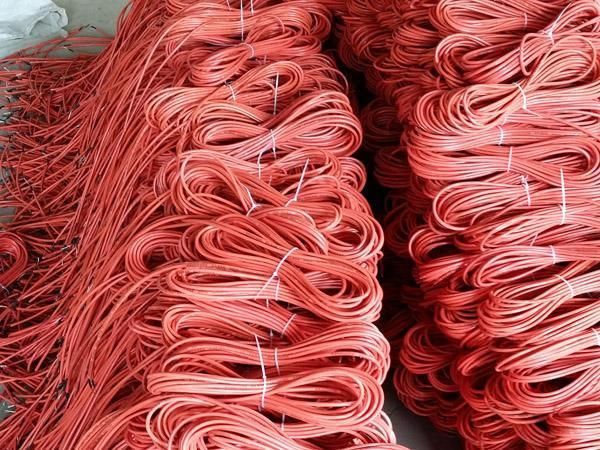

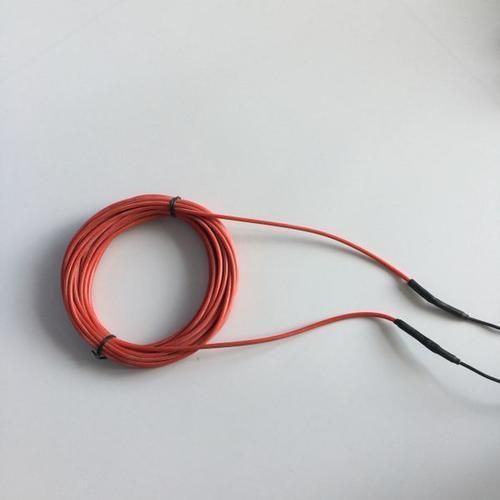

Application:apply to extruding single core or sheath of silicone cable

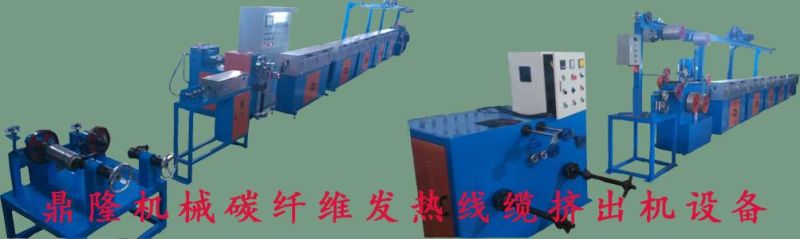

Equipment components:

1. Payoff(driven,non-driven,pintle,shaftless,porlal type)
2. Preheater(optional)
3. Wire straighting device
4. Extruder
5. Diameter gauge
6. Ink jet printer or mark printer(optional)
7. Vulcanization tunnel
8. Cooling trough(optional)
9. Capstan wheel
10. Accumulator(optional)
11. Powder coater
12. Spark test
13. Take up(dual reel,pintle,shaftless,portal type)
14. Control panel(manual or PLC type)

Technical Specifications


	DL45	DL65	DL80	DL90
Finished hose diameter	1.5-30mm	1.5-30mm	3.0-60mm	5.0-80mm
Line speed (max.)	30m/min	30m/min	30m/min	30m/min
Extrusion output (max.)	60kg/h	70kg/h	100kg/h	150 kg/h
L/D	12:1	12:1	12:1	12:1
Extruder power	7.5KW	11KW	22KW	30KW
High temperature curing length	0.5m-1.3m	0.5m-1.3m	0.8m-1.3m	0.8m-1.3m
Horizontal curing length	6-8m	6-8m	8-10m	8-12m
Capstan power	0.75KW	0.75KW	0.75KW	0.75KW

1, In 1997, we committed ourselves to the R & D and manufacturing of silica gel equipment and wire and cable equipment, with rich experience

2, Provide customers with solutions for various stages of silicone hose, wire, profile and cable production process, improve the equipment according to customers' products, and provide customers with the best equipment.

3, Provide customers with one-stop services such as plant planning, whole plant equipment investment planning, selection and allocation of developers and staff operation technology training.

4, New product development and certification technical support services. Our technicians are familiar with the production process of various silica gel products and national wire standards, the performance of various silica gel raw materials, and the development and certification of various electronic wires, silica gel wires, network wires, HDMI wires, power wires, Teflon wires, rubber wires and other products

5, With strong market share and good reputation, our company has gathered a large number of information about silica gel, cable materials and various conductors to provide good, most affordable and most convenient investment services.

II Team advantage (team building brand)

1, We have the most professional mechanical equipment design and R & D team in China to provide our customers with the most authoritative solutions to process difficulties and equipment shortcomings.

2, We have the most professional business team in the industry to provide our customers with the most considerate service, the most elaborate technical questions, the most comprehensive investment scheme, the most high-end silicone products and cable production technology.

3, We have the fastest service team in China, set up a 24-hour service hotline and stationed service teams all over the country to provide customers with timely and professional services.

4, We have the most stable production and manufacturing team in China to provide customers with punctual, high-quality and cost-effective mechanical equipment.

5, We have the largest industrial chain cooperative enterprise team in China, which can provide our customers with services other than equipment (rubber and conductor), and provide customers with free proofing and machine testing materials.

III Service advantage (service retention)

The company always attaches importance to customer requirements, has a strong sense of customer service, regularly provides customers with professional equipment maintenance services, has a perfect customer network, and can provide customers with fast localized personal services.

FAQ1
Q1: How long is the delivery time?
A1: It will take 20 days from the beginning to the end of the production.
      It takes more than 30 business days to customize complex mechanical equipment.
Q2: What is terms of payment? MOQ?
A2: T/T. 1 set.
Q3: How do you gurantee the machine stable operating?
A3: We do pre-shipment test for every single piece of machine.
      We have seperate QC, delivery, sales and after-sales departments.
      Also strict management process from pre-sales to after-sales.
Q4: How is your after-sales service?
A4: 1 year warranty with 60+ oversea after-service engineers
     (oversea after-service team of high efficient, professional and enough experience for various non-standard project) .
Q5: How can I install my machine when it arrives?
A5: For simple and semi-auto machine, we will send manual instruction and teaching video.
      For complex operation, we will send the engineers overseas to help client installing, operating and training.

Our Services
What to provide customers with after-sales service?
Pre-sales services:
1. Inquiry and consulting support.
2. Customized design program.
3. Pre-sale training: in order to guarantee all customers fully to operate the machine, if a customer needs, we can help our customer training, includes:
1) Correct operating mode.
2) Correct maintenance way.
3) Remove simple problem of our product.
After-sales service:
Since the shipment date, our company freely assuring period of after-sale maintenance service is:
1) 1year for mechanical part.
2) 6 month for electrical part.
3) Offer lifetime consultation on problems occurred.

Our products include:
1. Silicone strip equipment series.
2. 3D printer filament extruders.
3. LED strip equipment series.
4. Rubber processing machines.

Since our company was founded, over the past 13 yeas, our products have been extensively exported to Africa, Southeast Asia, Latin America, Europe and other markets.

Our services
What after-sales services are provided to customers?
Pre sales service:
1. Advisory support
2. Customized design scheme
3. Pre sales training: in order to ensure that customers can fully operate the machine, if customers need, we can help customers with training, including
1) Correct operation mode
2) Correct maintenance method
3) Eliminate simple problems with our products
after-sale service:
From the date of delivery, our company guarantees that the after-sales maintenance service period is:

1) Mechanical part 1 year
2) 6 months for electrical part
3) Problems arising from providing lifelong consultation

Company information
DINGLONG Motor Co., Ltd. is a high-tech manufacturer specializing in design and manufacturing, with CE & ISO9001 certificate.

Our products include:
1. Silicone strip equipment series
2.3d printer filament extruder
3. LED light bar equipment series
4. Rubber processing machine

Since the establishment of the company, for more than ten years, our products have been widely imported from Africa, Southeast Asia, Latin America, Europe and other markets.
