• Model NO.：LTM
• Product Name：Wire and Cable Extrusion Machine
• Function：Abrasion Resistance, Lubrication
• Demoulding：Automatic
• Automatic Grade：Automatic
• Installation：Vertical
• Mould Life：>1, 000, 000 Shots
• Running Speed：>40m,Min
• Feeding Type：Chain Drive Feeding
• Dimension：4000*500*1000mm
• Max Traction：2500kg
• The Screw Diameter：150mm
• Standard：Customized
• Application：Cable, Wire
• Industry：Cable Industry
• Transport Package：Sea Package
• Specification：SGS
• Trademark：HLT
• Origin：China Jiangsu
• Production Capacity：400kg,Day

Basic Info.

Model NO. LTM Product Name Wire and Cable Extrusion Machine Function Abrasion Resistance, Lubrication Demoulding Automatic Automatic Grade Automatic Installation Vertical Mould Life >1, 000, 000 Shots Running Speed >40m/Min Feeding Type Chain Drive Feeding Dimension 4000*500*1000mm Max Traction 2500kg The Screw Diameter 150mm Standard Customized Application Cable, Wire Industry Cable Industry Transport Package Sea Package Specification SGS Trademark HLT Origin China Jiangsu Production Capacity 400kg/Day

Product Description

Wire and cable extrusion machine






Introduction
The unit is used for copper core insulation coating of middle and small section production,
mainly for the soft polyviny chloride(PVC), polyethylene and other thermoplastics
  Main Equipments

Take up machine


Model	XLM2500/4500	XLM3200/5000
Cable OD(mm)	φ30~φ80	φ40~φ200
Reel Diameter(mm)	φ2500~4500	φ3200~5000
Reel Width(mm)	1900~2500	2300~2800
Max Speed(m/min)	40	30
Load capacity (ton)	60	80

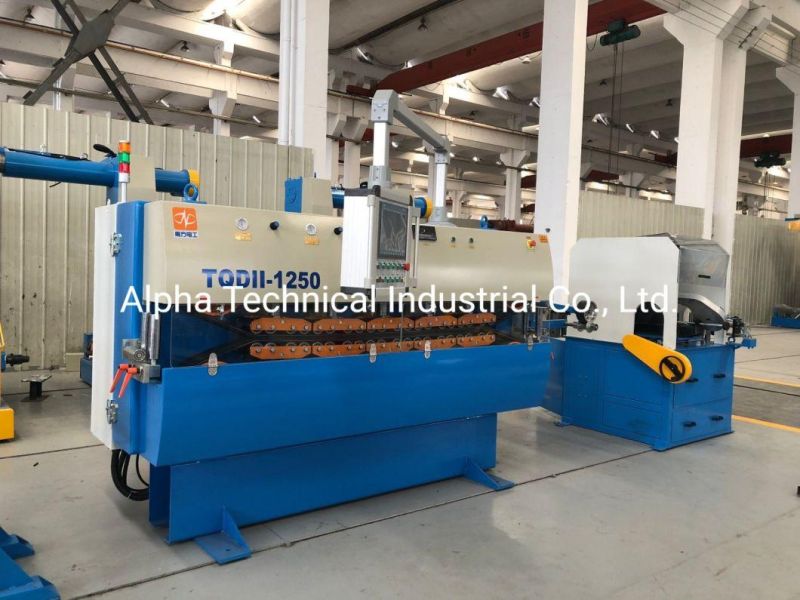

Traction


TQD-4000KG Pneumatic Caterpillar	1set
l  Max. traction force	4000kg
l  Max. diameter of cable	200mm (max)
l  Traction speed	20m/min
l  Gripping length of caterpillar belt	2900mm
l  Width of caterpillar belt	180mm
l  Driving motor	Z4-132-4/1- 18.5Kw, 1500rpm
l  Number of pairs of cylinder	9 pairs
l  Center height of machine	1000mm
l  Direction of the machine	R - L
l  The bearings of main parts	Chinese high quality brand: NSK

150 Extrusion machine


The screw diameter	150mm
The screw length to diameter ratio	25:01:00
After sheath outside diameter	φ35~140mm
Maximum traction	2500kg
The production line speed	>40m/min
Steel specification	PN1600-PN3150
The line plate specification	PN1600-PN3150
Equipment center high	1000mm
Production line direction	In the face of the nose left put right
LF1600/3150 gantry rail walking type of passive motorized	1 sets of
TQD-2000kg crawler type pneumatic tractor traction before	1 sets of
SJ-150X25 plastic extruder	1 sets of
Automaic drying feeding device	1 sets of
φ140 square sheathed the nose	1 only
24 m stainless steel water trough(including 4 meters mobile sink)	1 sets of
Cable blow dry device	1 set
TQD-2500kg crawler type pneumatic tractor traction after	1 set
LSP1600 /walk type 3150 gantry rail line frame	1 sets of
Electrical synchronization control system	1 sets of

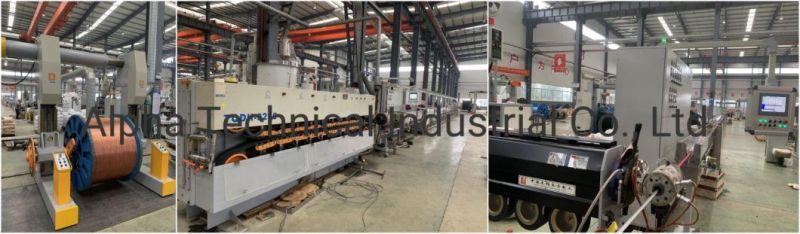

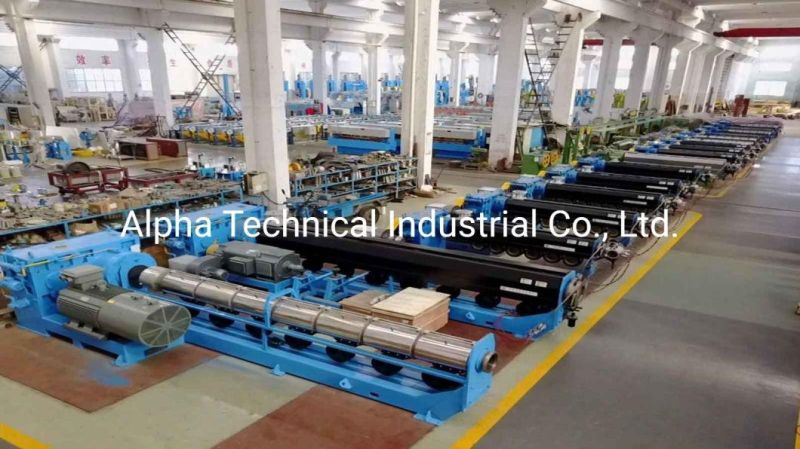

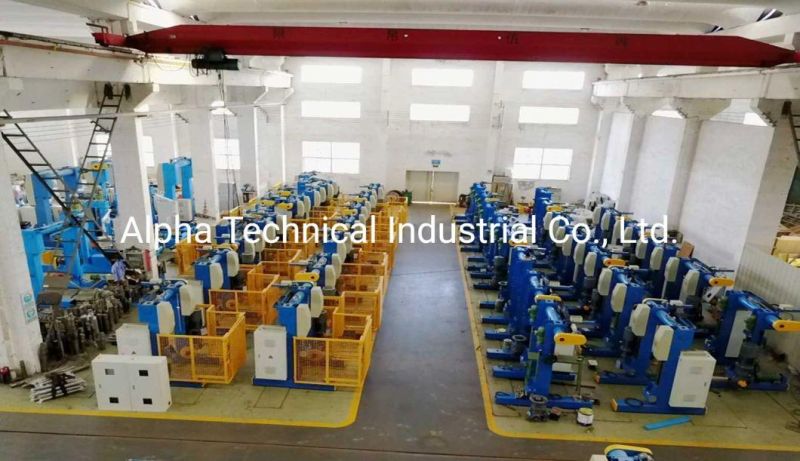

 Our Workshop

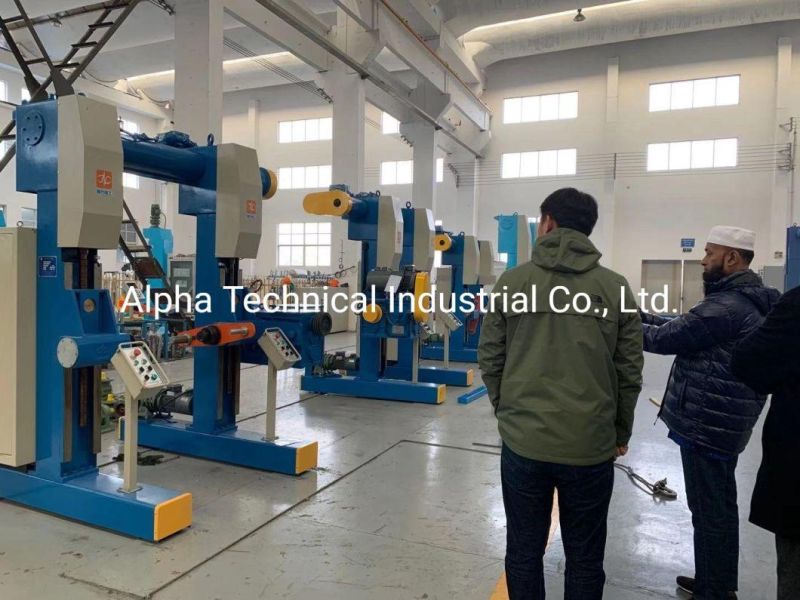

Our Clients





Package




Our Team


RFQ
1, Q: What is your main brand for the electrical and mechanical parts?
    A: China famous brand

2, Q: Could we appoint the parts brand?
    A: Yes, ABB, SIEMENS, Danfoss, or theirs that you like.

3, Q: Could you please arrange the installation and commissioning?
    A: Yes, we could and the buyer pay the charge

4, Q: could you arrange the production education?
    A: Yes, we could and the buyer pay the charge

5, Q: Could you do the design for the whole plant?
    A: Yes, we can.

6, Q: Could you offer the production process design?
    A: Yes, we can.

7, Q: what is the difference with other suppliers?
    A: What we could offer to other customers is not only the machine itself, also we could offer: factory design, production process design, QC control, and education and assist machine and raw material offering.

8.Q: What's the payment terms?
   A: T/T,30% deposit, and 70% balance before delivery.

9, Q: How long the guarantee?
    A: one year and charge for repair the whole life.


Enable us to give you a better quotation, please kindly provide the parameter below:
1.  Coil diameter (we need to know the take-up and pay off machine size)?
2.  Extrusion speed?
3.  Extrusion thickness?
4. What is the material of the outer sheath? (PVC or PE or HDPE or MDPE or TPU?
