• Model NO.：630,1+6
• Mould Life：>1,000,000 Shots
• Type：To Back Stranding Machine
• Usage：Skip Stranding
• Material：Copper Wire, Aluminum Wire and Steel Wire
• Maximum Strand Diameter：16
• Stranding Pitch：49.3-372.7mm ( 36 Stage )
• Take-up Bobbin：Pn630-Pn1600
• Max Rotation Speed of The Tube：1200
• Diameter of Draught Wheels：1200
• Main Motor Power：37kw
• Transport Package：Seaworthy Packing
• Specification：630,1+6
• Trademark：BH
• Origin：China
• HS Code：8479400000
• Production Capacity：100

Basic Info.

Model NO. 630/1+6 Mould Life >1,000,000 Shots Type To Back Stranding Machine Usage Skip Stranding Material Copper Wire, Aluminum Wire and Steel Wire Maximum Strand Diameter 16 Stranding Pitch 49.3-372.7mm ( 36 Stage ) Take-up Bobbin Pn630-Pn1600 Max Rotation Speed of The Tube 1200 Diameter of Draught Wheels 1200 Main Motor Power 37kw Transport Package Seaworthy Packing Specification 630/1+6 Trademark BH Origin China HS Code 8479400000 Production Capacity 100

Product Description

Skip Stranding Machine
 1.ApplicationThe machine is used for stranding copper wire, aluminum wire and steel wire.
 2.Main technical parameter

Name	Unit	Data
Single wire diameter	mm	Copper wire Φ1.5-Φ5.0     Aluminum wire Φ1.8-Φ5.0 Steel wire Φ1.8-Φ4.0
The maximum strand diameter	mm	Φ16
Max rotation speed of the tube	rpm	1200
Stranding pitch	mm	49.3-372.7mm ( 36 stage )
Diameter of draught wheels	mm	Φ1200×Φ1200
Main motor power( AC variable frequency speed regulation )	kw	37
The specifications of the bobbin	/	d1: 630 mm L1: 475 mm d4: 127 mm
Take-up bobbin	/	PN630-PN1600

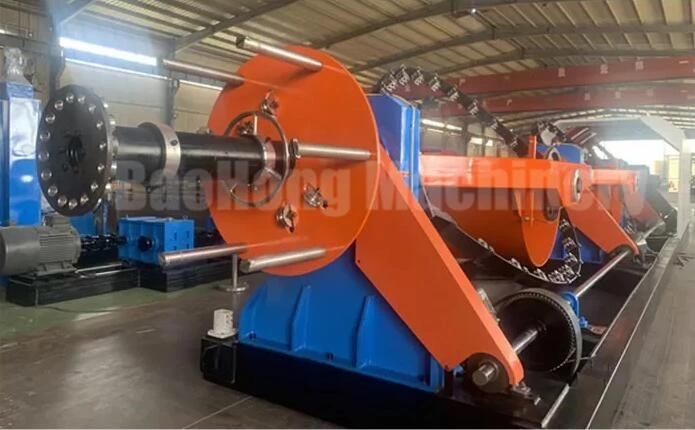

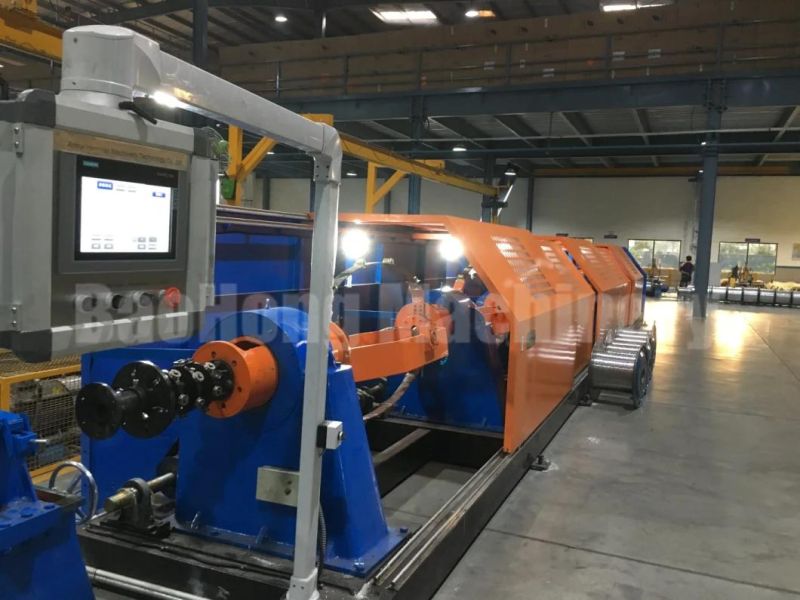

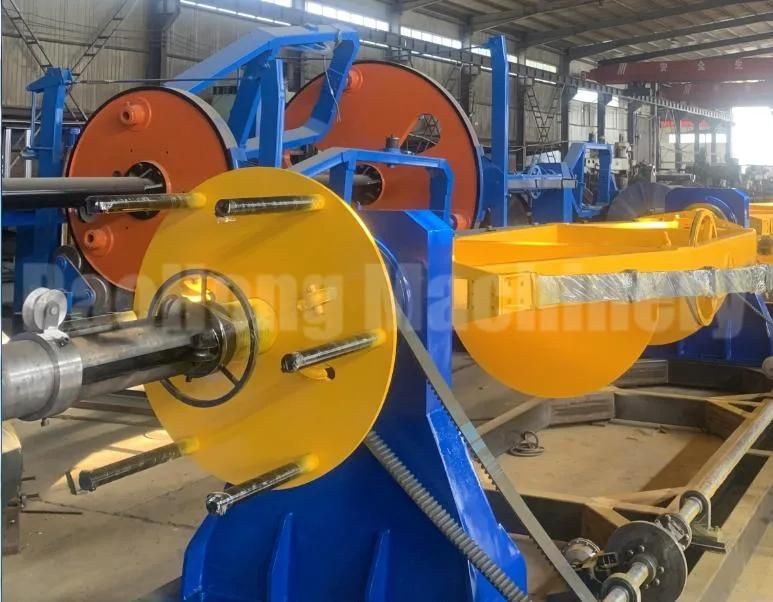

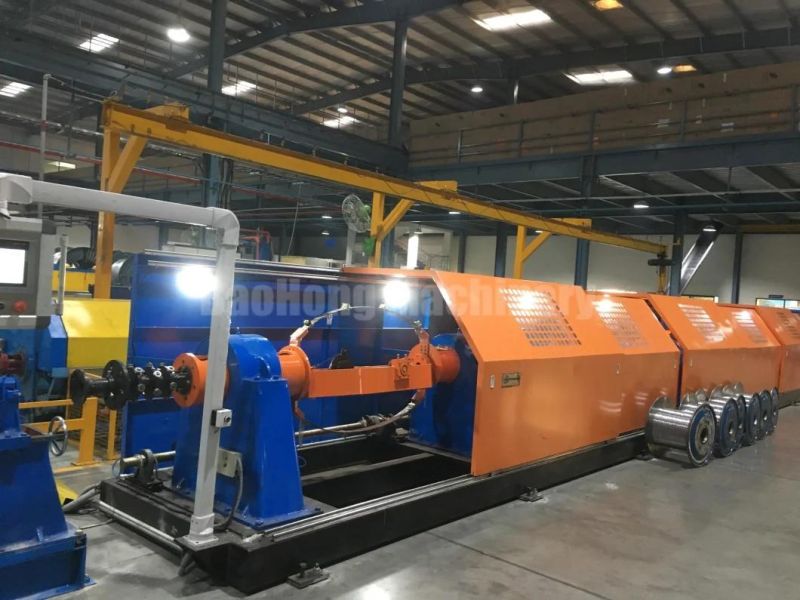

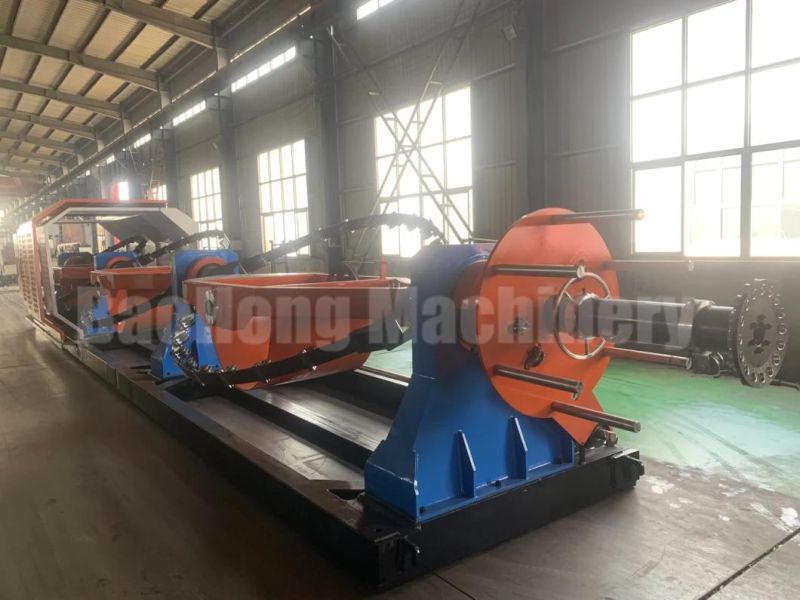

3.Photo
