• Model NO.：SR-150
• Cutting Length：30-99999.9mm
• Stripping Length：Front 0-300mm, End 0-150mm
• Wire Cross Section：6-150mm2
• Wire Outer Diameter：Max 28mm
• Transport Package：Plywood Case
• Specification：760*470*480mm
• Trademark：Sinrad
• Origin：China
• HS Code：8479899990
• Production Capacity：100 Sets,Month

Specification:

Name

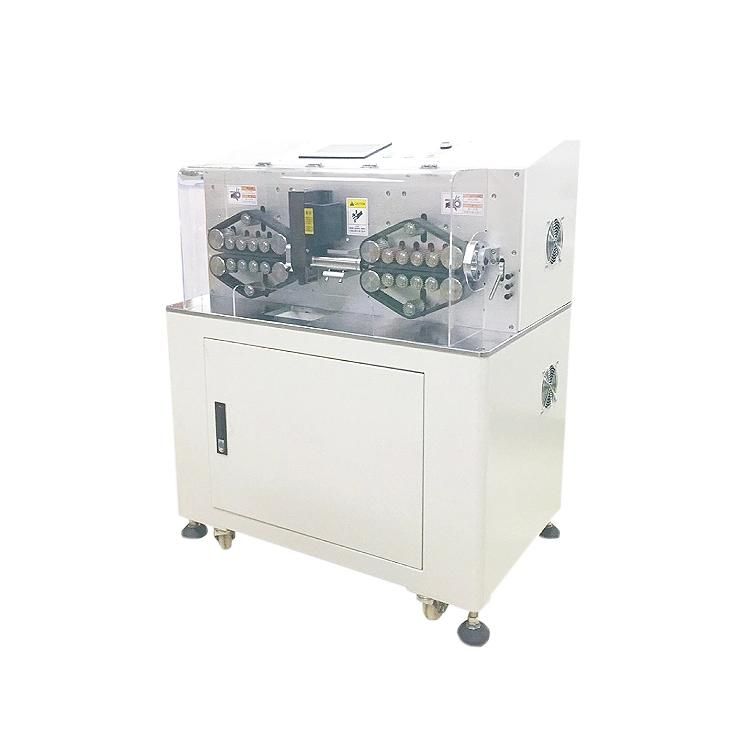

Automatic Large cable cutting stripping machine

Model

SR-150

Display

Touch screen

Applicable cable

6-150mm2

Cutting length

30-99999.9mm

Cutting tolerance

0.002*cutting length

Stripping length

Front 0.1-300mm, end 0-150mm

Voltage

AC220V 50/60HZ

Catheter diameter

Max 30mm

Suitable cable

Cable, sheath cable, BV hard wire, BVR soft wire, etc.

 Features:

(1)The fully automatic large cable cutting stripping machine is a new generation of wire harness processing equipment, using servo motor for drivers.

(2)Adopt advanced man-machine interface, humanized design, easy to operate.

(3)The processed wire harness has the same length, beautiful appearance and good effect.

(4)Blade: High-quality imported high-speed steel, or tungsten steel.

(5)Efficiency: 600-2000pcs/H depends on the size and length of cable.

(6)Drive mode: 8-wheels drive,total 28 wheels.

(7)Feeding node: Belt feeding, no embossing and scratches on the cable.

(8)Special cables, special requirements can be customized, need to send sample for testing.

(9) Suitable forpower industry, electric control cabinet, battery box line, new energy vehicle wiring harness, charging pile wiring harness, charging gun wiring harness, BV hard wire, BVR soft wire, etc.

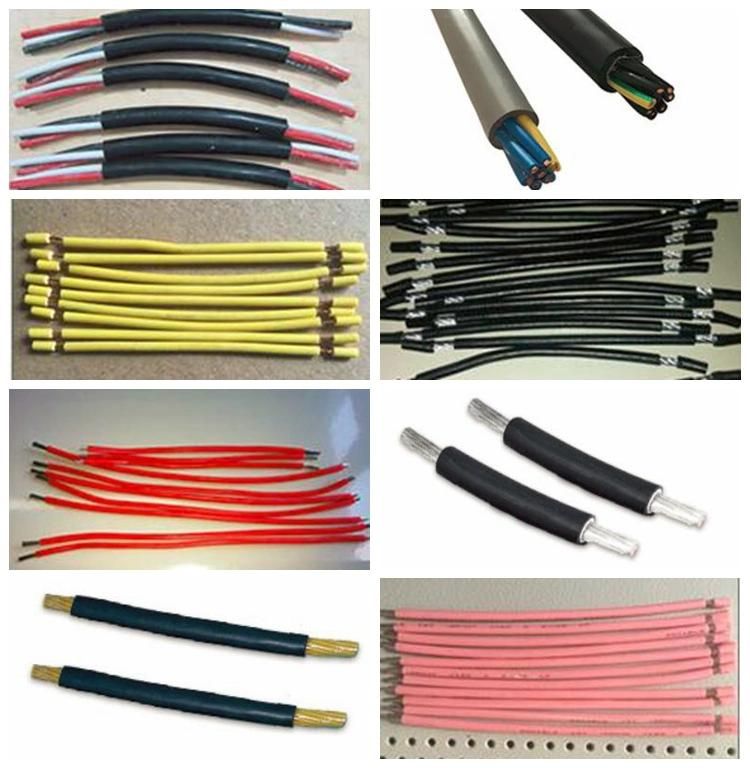

Pictures:



Contact:

 FAQ:

1 Price terms

The price is based on EWX/FOB, if you request CFR or CIF, please give us your delivery port, and we will give you CFR price or CIF price for reference.

2 Can I send samples to check the machine quality.

Yes, welcome to send us samples. We would be pleased to show you trial testing base on your samples.

3 How to learn the machine?

1) Offer free technology learning support in our factory

2) Provide detail user manual with detail video illustration

3) Support engineer service at site if clients asking for

4 How about the lead time and delivery time of order?

Standard model, can be ship out within 3~7days after confirmed order and deposit.

Customized model, normally lead time is 10~30 days, after confirmed all order detail deposit and got samples.

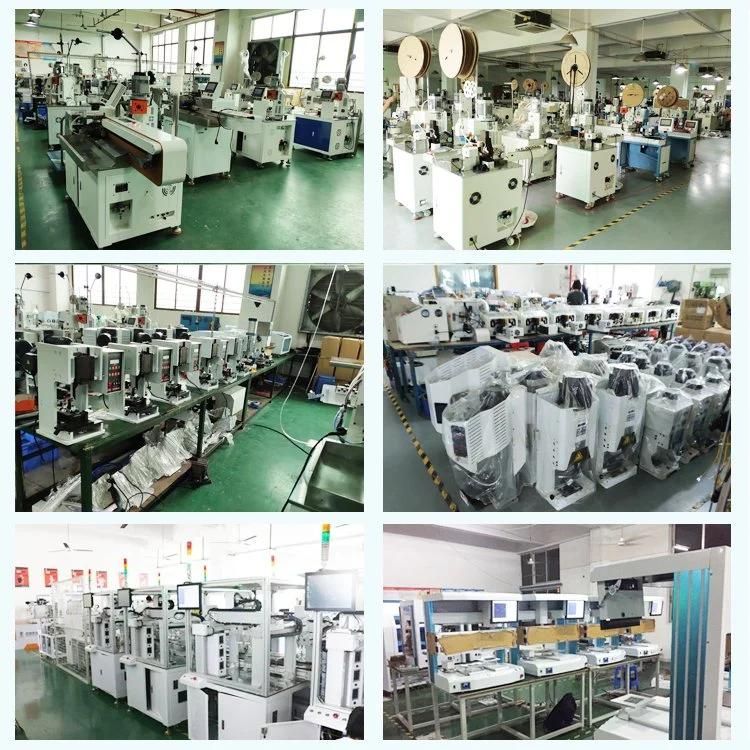

Company info:
Sinrad Technology Co.,Ltd, specialized in automation machine, customizing and manufacturing cable processing(cutting, striping, twisting, crimping, soldering, housing inserting, winding, binding, testing, etc.) machine, automatic soldering machine, intelligent soldering machine, and other production equipment.
