• Model NO.：SR-0525
• Applicable Wire：0.5-4mm2
• Stripping Length：6-10mm, Customized
• Suitable Terminal Range：Tubular Terminal
• Transport Package：Plywood Case
• Specification：400*340*450mm
• Trademark：Sinrad
• Origin：China
• HS Code：8479819000
• Production Capacity：100 Sets,Month

Specification:

Model

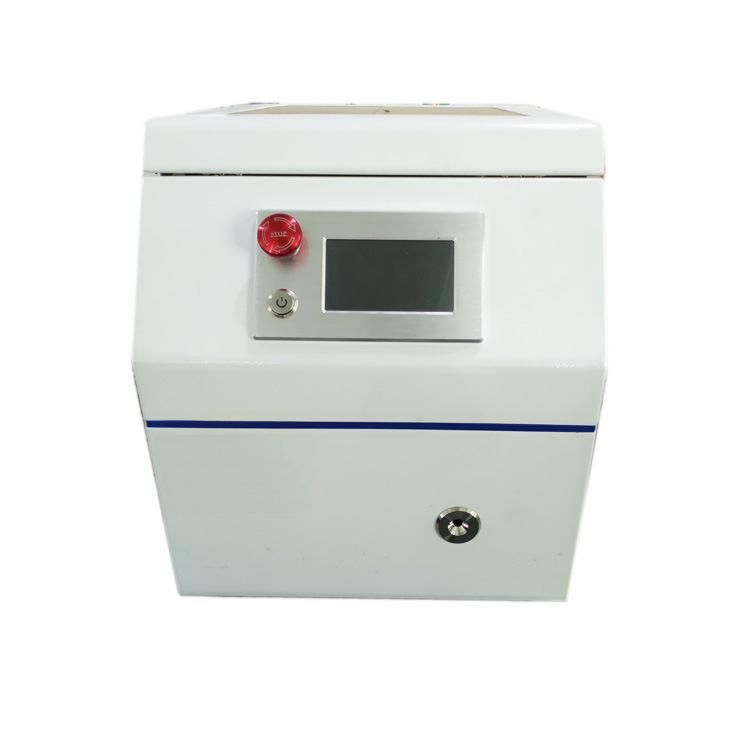

SR-0525 Ferrule terminal crimping machine

Suitable wire

0.5-4mm²

Stripping length

6-10mm, support customizing

Suitable terminal range

6/8/10/12mm, support customizing

Air source

0.5-0.7MPa

Voltage

220V 50/60HZ

Size

400*340*450mm

Weight

32KG

Function

Wire inserting, stripping and crimping can be finished at the same time

 Features:

1. Simplify complex procedures, improve overall efficiency significantly, and have a large cost advantage.

2. The terminals within the specified range do not need to replace the vibration plate, and instantly change the different terminal specifications.

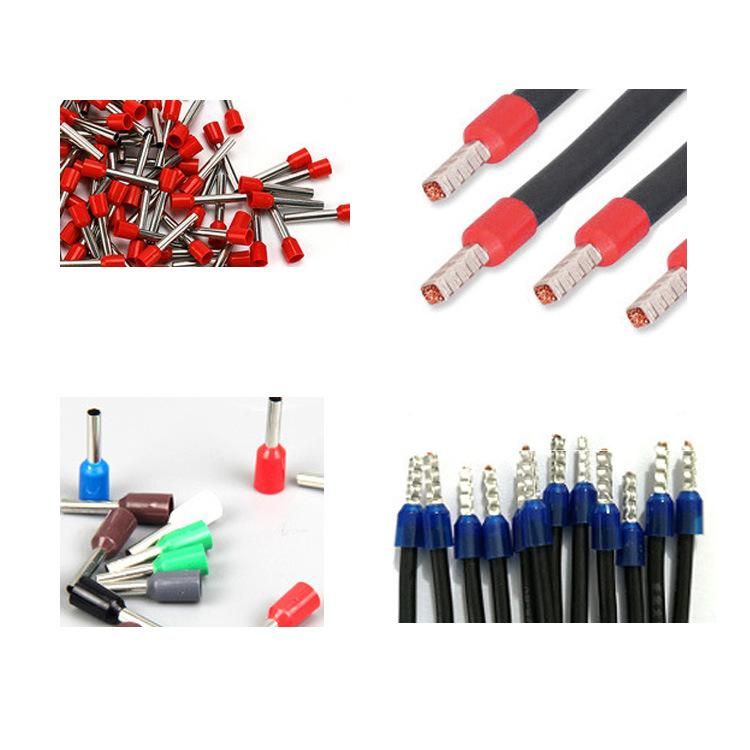

3. Inserting, stripping and crimping are completed at the same time, mainly for crimping tubular terminals of international standards.

4. The projected part of the wire adopts the shape of the bell mouth to facilitate the inserting.

5. Automatic stripping wire diameter and crimp height adjustment.

6. Adopt sensitive pneumatic induction control, fast crimping.

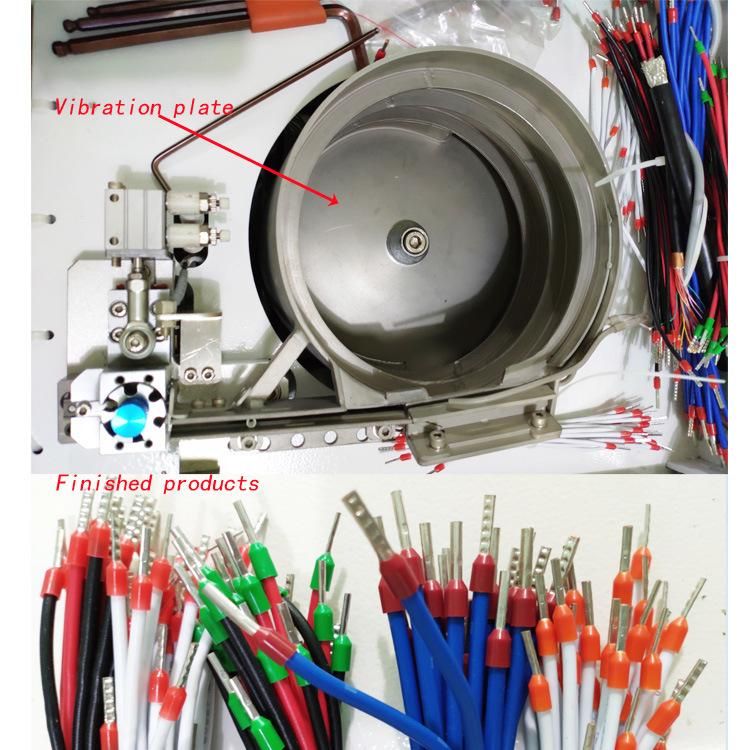

7. It adopts the feeding method of vibrating plate, which makes the terminal replacement convenient and quick.

8. Imported components and cylinders are used for stable performance.



Pictures:



Contact:

 FAQ:

1 Price terms

The price is based on EWX/FOB, if you request CFR or CIF, please give us your delivery port, and we will give you CFR price or CIF price for reference.

2 Can I send samples to check the machine quality.

Yes, welcome to send us samples. We would be pleased to show you trial testing base on your samples.

3 How to learn the machine?

1) Offer free technology learning support in our factory

2) Provide detail user manual with detail video illustration

3) Support engineer service at site if clients asking for

4 How about the lead time and delivery time of order?

Standard model, can be ship out within 3~7days after confirmed order and deposit.

Customized model, normally lead time is 10~30 days, after confirmed all order detail deposit and got samples.

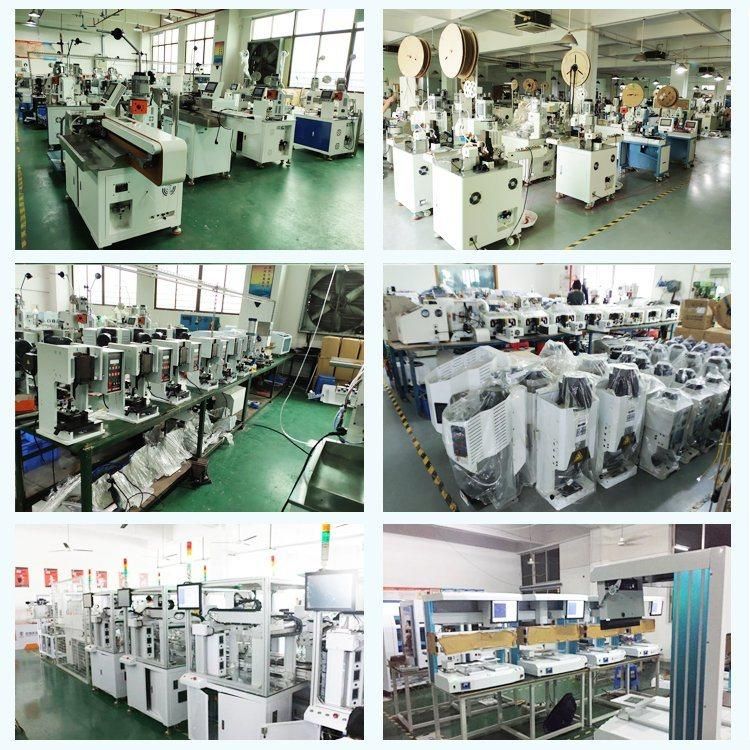

Company info:
Sinrad Technology Co.,Ltd, specialized in automation machine, customizing and manufacturing cable processing(cutting, striping, twisting, crimping, soldering, housing inserting, winding, binding, testing, etc.) machine, automatic soldering machine, intelligent soldering machine, and other production equipment.
