• Model NO.：HH-90,100,120MM,150
• Motor：Germany-Siemens
• Bearing：Japan-NSK
• Inverter：Yaskawa
• Available Material：PVC,PE,XLPE
• Color：Customized
• Model Number：Hh-90mm
• Screw Diameter：90
• Screw Length/Diameter：25:1 Tailored Screwstem
• Extrusion Capacity：280kg
• Host′s Power：50HP
• Range of Wire Size：3-25mm
• Capstan Power：7.5HP
• Outlet Speed：200
• Take-up Type：Double Axis Way,Max Axis Way
• Transport Package：Plastic Package
• Specification：CE ISO SGS
• Trademark：HOOHA
• Origin：Dongguan
• HS Code：8477209000
• Production Capacity：10 Sets,Month

Team of HOOHA serviceNameEducationPositionMainly responsible for projectSpecializing in projectIndustry working history    ( year )Zanyang XiecollegeGeneral EngineerThe total project design and planningpower cable machine15Xiaohua HucollegeVis general engineerThe total project design and planningnet cable,data cable machine10Changhong ChengcollegeEngineerDrawings and after-sales serviceTeflon,Optical fiber cable machine25Xiuwu ChencollegeGeneral EngineerThe total project design and planningcopper drawing machine15Lixin YuancollegeEngineerThe project design and planningcoppwer wire making technical16Zhenghai Qiucollegecable engineerAfter servicecable making and cable factory management servie15Jinxin LiucollegeMarketing engineerAfter serviceelectrical engineer7Xingguo TangHigh schoolElectrical engineerAfter serviceelectrical engineer10Changqiang LiHigh schoolMaintain engineerAfter servicemachina maintain and install service10Haipin LiUniversityEngineering directorMarketing and salesproject consulting8Sen YangUniversityEngineering translatorMarketing and salesproject consulting5

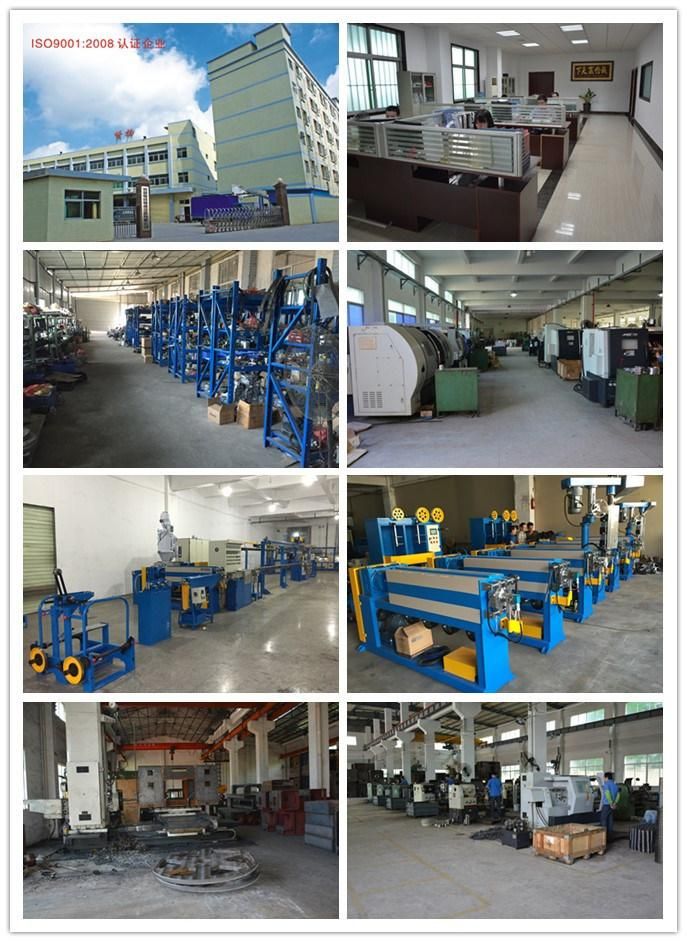

  2,Factory and office:




3. Application

It is fit for proportion of wire such as power line insulating coat electrical cable.


4. Device element

It is made up of line pulling set, main stress team, main motor, main controlling cabinet, cooling sink, pulling machine sparking machine. You can select printer, diameter-testing instument, PLC controlling, two belt pulling, various shaftless take-up and pay-off machine.


5. Specifications
 HH-150Pay-off line typeDouble axes way /max axes waymax axes wayPay-off bobbin size(mm)630-800/1250630-800/16001600-20002500-3150Screw diameter(mm)Φ90Φ100Φ120Φ150L/D of screw25:1BM type25:1BM type25:1 type25:1 typeExtrusion capacity(kg/hr)280350400600Main unit power50HP70HP100HP150HPWire spec.(mm)Φ3-25Φ5-40Φ50-80Φ60-120Cooling deviceSingle layer U type Capstan power7.5HP10HP15HP20HPWire speed(m/m)MAX200MAX200MAX150MAX100Take-up line typeDouble axes way /max axes waymax axes way

6. Spare Parts Brands:

Motor:  Siemens
Inverter : Japan Yaskawa,
Temperature Control Meter: Japan RKC;
Auxiliary Relay: Japan Omron ;
Ammeter and Voltmeter: Taiwan Risesun ;
Indicator, Switch and Button: Taiwan TEND ;
Contactor: Taiwan Shihlin




7. Customers visit




8. After-sales service

1).Delivery dates: 45 days
2).Payment: TT or L/C
3).Packing: plastic packing ensure the goods' safety during the transportation.
4).Installation and training service: 2 professional engineers who has over 5 years overseas installation and cable manufacturing training experience.


9.Contact information:

Phone: +8615015409397
Web: http//:hoohaco.en.made-in-china.com
         http://hoohaco.en.made-in-china.com/
Address: 3rd Floor, Building D, Huifu Science Park, No.38, Houhu Road, Humen Town, Dongguan, Guangdong, China


10.Where are we:

Hongkong airport to Humen by boat 2 hours
Guangzhou airport to Humen by car 2 hours
Shenzhen airport to Humen by car 1 hour
Guangzhou South high speed train station to Humen 20 minutes
Shenzhen North high speed train station to Humen 20 minutes


11. Advantages
